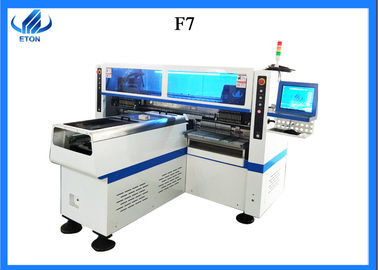

Large Image :  pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine,

Product Details:
Place of Origin: china
Brand Name: eton
Certification: ccc,ce,sira
Model Number: ht-f7
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $75000.00/unit
Packaging Details: Waterproof material packing and wooden case
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 80 units per months
Detailed Product Description
Pcb Size: 80*330mm~330*1200mm Pcb Clamp;ing: Adjustable Pressure Pneumatic
System: Windows7 Software: R&d Independently
Display: Touch Screen Monitor Input Device: Keyboard,mouse
No. Of Camera: 5 POWER: 380AC 50HZ
Power Consmption: 6kw Mounting Mode: Group Of Group Of Stick
Components Space: 0.2mm Feeders Stations: 68PCS
Nozzles: 34PCS Mounting Speed: 150000CPH~180000CPH
Mounting Height: 15mm

1.product details

Components: LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.

Application: 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip.

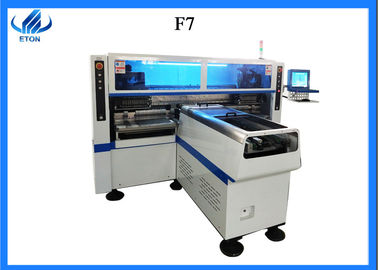

pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 0





2.product Technical parameters​  of high speed pick and place machine

Model number HT-F7
Dimension 2700*2120*1550mm
PCB size 80*330~1200*330mm
PCB thickness 0.5~5mm
PCB clamping adjustable pressure pneumatic
mounting mode group to take and group to mount
system windows 7
display touch screen monitor
input device keyboard,mouse
NO.of camera 5 sets of imported camera
mounting precision ±0.02mm
mounting height <13mm
mounting speed 200000CPH
components space 0.2mm
NO.of feedings station 68pcs
NO.of nozzles 34pcs
power 380AC 50HZ
power consumption 6KW
operating environment 23℃±3℃
conveyor transmission MAX length:1200mm
transmission speed >500mm/sec
transmission direction single(left→right,right→left)
transmission mode online drive
position mode optical
air pressure >5.0kg/c㎡
electrical control independent research and development by ETON
motion control card module 1set independent research and development by ETON
X.Y axis drive way high-end magnetic linear motor+servo motor
feeding way electric feeder with double motor

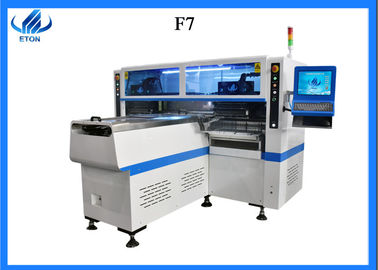

pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 1









2.product features of smt pick and place machine

  • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  • Install 5 camera and adopt vision for the flight identification, mark correction.
  • PCB clamping is electric clamping+adjustable pressure pneumatic.
  • Vision for the flight identification ,mark correction.
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated.

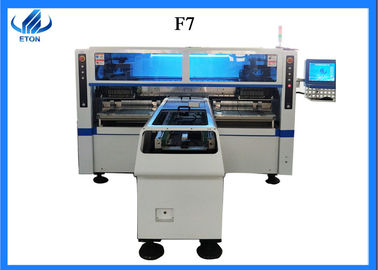

pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 2





2Packing & shipping of smt mounter machine


Packaging materials Waterproof material and wooden case
Lead time Delivery within 30 days after receipt of payment..
port Shenzhen
Delivery time Transshipment and partial shipment according to the contract

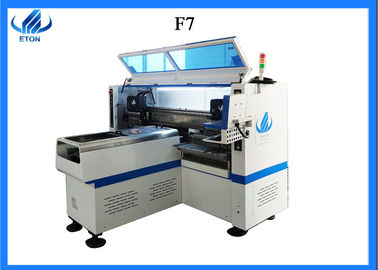

pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 3







6.Company profile

pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 4

pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 5





pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 6



pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 7





7.Our  clients

pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 8



8.FAQ

pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 9











pick and place machine ,smt pick and place ,automatic pick and place,magnetic linear moto machine, 10









  • SMT industrial patterns

The SMT/MES industry in China is mainly concentrated in the eastern coastal areas, in which Guangdong, Fujian, Zhejiang, Shanghai, Jiangsu, Shandong, Tianjin, Beijing and Liaoning provinces and cities account for more than 80% of the total SMT/MES. China's SMT/MES industry is bound to form the Pearl River Delta, the Yangtze River Delta, the Bohai Sea around the three-legged trend. China's SMT/MES industry has such a favorable situation, mainly because the relevant departments of the Chinese government attach great importance to the development of electronic and information products manufacturing industry, and have formulated good development policies and introduced policies. Countries and regions with developed electronic information products manufacturing in the world such as the United States, Japan, South Korea, Europe and Taiwan are important factors in transferring electronic manufacturing to the mainland of China.

China's SMT industries are still concentrated in the Pearl River Delta region and the Yangtze River Delta region, which account for more than 90 percent of the total industrial scale, with the Pearl River Delta region alone accounting for 67.5 percent of the total.

From the industry's own development cycle, although China's SMT industry is still in the early stage of development, but has shown a vigorous vitality. At the same time, the SMT industry is also an important basic industry, which is of great significance to promote the structural adjustment and industrial upgrading of China's electronic and information industry manufacturing industry. Promoting the rapid and healthy development of China's SMT industry requires the joint cooperation of all links between upstream and downstream industries.

For the government, the first is to increase support for the SMT industry, especially to strengthen investment in basic research in the fields of basic materials and precision instruments. Second, as an important market supervision department, the government should strengthen the protection of intellectual property rights, actively guide the formulation of China's SMT industry standards, and actively promote and implement them.

For enterprises, one is to change the concept and fully understand the importance of production technology to the development of SMT equipment. only fully familiar with the actual production process, understand the actual production process technical parameters adjustment changes, can really design the SMT equipment in line with the actual production requirements. Second, conform to the trend of lead-free, break through the key technology and realize the serialization of key equipment products. Third, strengthen sales services and develop new models suitable for Chinese enterprises. Fourth, with the help of training certification to form a new model of equipment marketing. Fifth, pay full attention to the cultivation of self-talent and realize technological innovation and healthy development.
