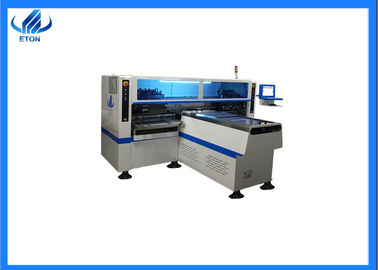

Large Image : pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter

Product Details:

Place of Origin:	china
Brand Name:	eton
Certification:	ccc,ce,sira
Model Number:	ht-t9
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$ 95,000 /unit
Packaging Details:	Waterproof material packing and wooden case
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	80 units per months

Contact Now

Detailed Product Description

Pcb Size:	250mm*any Length	Pcb Clamp;ing:	Adjustable Pressure Pneumatic
System:	Windows7	Software:	R&d Independently
Display:	Touch Screen Monitor	Input Device:	Keyboard,mouse
No. Of Camera:	5	POWER:	380AC 50HZ
Power Consmption:	6kw	Mounting Mode:	Group Of Group Of Stick
Components Space:	0.2mm	Feeders Stations:	64PCS
Nozzles:	64PCS	Mounting Speed:	200000CPH
Mounting Height:	13mm

1.product details

Components: LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.

Application:5m,50m or any length of flexible strip and roll to roll;RGB

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 0

2.product Technical parameters of high speed pick and place machine

Model number	HT-X9
Dimension	245021001550mm
PCB size	250mm*any length
PCB thickness	0.5～1.5mm
PCB clamping	adjustable pressure pneumatic
mounting mode	group to take and group to mount
system	windows 7
display	touch screen monitor
input device	keyboard,mouse
NO.of camera	5 sets of imported camera
mounting precision	±0.02mm
mounting height	<13mm
mounting speed	200000CPH
components space	0.2mm
NO.of feedings station	64pcs
NO.of nozzles	64pcs
power	380AC 50HZ
power consumption	6KW
operating environment	23℃±3℃
conveyor transmission	any length
transmission speed	>500mm/sec
transmission direction	single(left→right,right→left)
transmission mode	online drive
position mode	optical
Air Force	0.5mpa
electrical control	independent research and development by ETON
motion control card module 1set	independent research and development by ETON
X.Y axis drive way	high-end magnetic linear motor+servo motor
feeding way	electric feeder with double motor

2.product features of smt pick and place machine

X,Y,Z drive way is high-end magnetic linear motor+servo motor.
Install 5 camera and adopt vision for the flight identification, mark correction.
PCB clamping is electric clamping+adjustable pressure pneumatic.
Vision for the flight identification ,mark correction.
Electronic feeder feeding system.
Non-stop material re-loading function.
Auto-optimization after coordinates generated.

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 2

3.Packing & shipping of smt mounter machine

Packaging materials	Waterproof material and wooden case
Lead time	Delivery within 30 days after receipt of payment..
port	Shenzhen
Delivery time	Transshipment and partial shipment according to the contract

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 3

4.Company profile

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 4

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 5

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 6

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 7

5.Our Our certificates and certifications

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 8

6.our services
pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 9

7. trade show

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 10

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 11

PCB

PCB printed circuit board, also known as printed circuit board, is an important electronic component, is the support of electronic components, is the carrier of electrical connection of electronic components. Almost every kind of electronic device has electronic components such as integrated circuits, so as to make the electrical interconnection between the components, it is suitable for printing. The printed circuit board has the dual function of conducting circuit and insulating floor.
Classification: according to the number of circuit board layers can be divided into single panel, double panel, four-layer board, six-layer board and other multi-layer circuit board.

(1) Single panel: On the most basic PCB, the parts are concentrated on one side and the wires on the other side. because the wire only appears on one side.

(2) Double panel: This circuit board has wiring on both sides, but to use the wire on both sides, it is necessary to have a proper circuit connection between the two sides. A "bridge" between these circuits is called a guide hole (via). A guide hole is a small hole filled or coated with metal on a PCB, which can be connected to a wire on both sides.

(3) Multi-layer board: In order to increase the area that can be wired, the multilayer board uses more single or double-sided wiring boards. A printed circuit board with one double-sided inner layer, two single-sided outer layer or two double-sided printed circuit boards with two single-sided printed circuit boards with one side as inner layer and two single-sided printed circuit boards with one side as outer layer.

Advantages: simplify the assembly and welding of electronic products, reduce the connection workload under the traditional mode, greatly reduce the labor strength of workers; reduce the volume of the whole machine, reduce the cost of products, improve the quality and reliability of electronic equipment; adopt standardized design, which is conducive to mechanization and automation in the production process; the whole assembly and commissioning PCB can be used as an independent spare part to facilitate the exchange and maintenance of the whole machine products.
