pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter

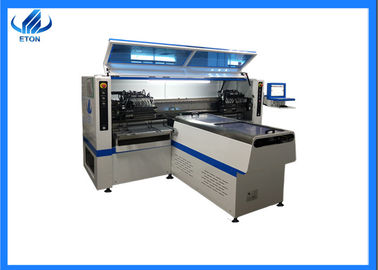

Large Image : pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter

Product Details:

Place of Origin:	china
Brand Name:	eton
Certification:	ccc,ce,sira
Model Number:	ht-f9
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$80000/unit
Packaging Details:	Waterproof material packing and wooden case
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	80 units per months

Contact Now

Detailed Product Description

Pcb Size:	250mm*any Length	Pcb Clamp;ing:	Adjustable Pressure Pneumatic
System:	Windows7	Software:	R&d Independently
Display:	Touch Screen Monitor	Input Device:	Keyboard,mouse
No. Of Camera:	5	POWER:	380AC 50HZ
Power Consmption:	6kw	Mounting Mode:	Group Of Group Of Stick
Components Space:	0.2mm	Feeders Stations:	68PCS
Nozzles:	68PCS	Mounting Speed:	200000CPH
Mounting Height:	13mm

1.product details

it can Produce with 2～４ types of materials with capacity at same time with high capacity, it is available for 5m,50m or any length of flexible strip and roll to roll.

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 0

2.product Technical parameters of high speed pick and place machine

Model number	HT-F9
Dimension	270021201550mm
PCB size	1200330～80330mm
PCB thickness	0.5～5mm
PCB clamping	adjustable pressure pneumatic
mounting mode	group to take and group to mount
system	windows 7
display	touch screen monitor
input device	keyboard,mouse
NO.of camera	5 sets of imported camera
mounting precision	±0.03mm
mounting height	<13mm
mounting speed	200000CPH
components	LED3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers
components space	0.2mm
NO.of feedings station	68pcs
NO.of nozzles	68pcs
power	380AC 50HZ
power consumption	6KW
operating environment	23℃±3℃
conveyor transmission	MAX length:1200mm
transmission speed	>500mm/sec
transmission direction	single(left→right,right→left)
transmission mode	online drive
position mode	optical
air pressure	>5.0kg/c㎡
electrical control	independent research and development by ETON
motion control card module 1set	independent research and development by ETON
X.Y axis drive way	high-end magnetic linear motor+servo motor
feeding way	electric feeder with double motor

2.product features of smt pick and place machine

X,Y,Z drive way is high-end magnetic linear motor+servo motor.
Install 5 camera and adopt vision for the flight identification, mark correction.
PCB clamping is electric clamping+adjustable pressure pneumatic.
Vision for the flight identification ,mark correction.
Electronic feeder feeding system.
Non-stop material re-loading function.
Auto-optimization after coordinates generated.

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 2

3.Packing & shipping of smt mounter machine

Packaging materials	Waterproof material and wooden case
Lead time	Delivery within 30 days after receipt of payment..
port	Shenzhen
Delivery time	Transshipment and partial shipment according to the contract

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 3

4.Company profile

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 4

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 5

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 6

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 7

5.Our Our certificates and certifications

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 8

6.our services

7. trade show

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 10

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 11

Tin paste

solder paste, also called tin paste, gray paste, is a new type of welding material accompanied by SMT. It is a paste mixture formed by mixing solder powder, combustion booster and other surfactants, out margin, etc. Mainly used in SMT industry PCB surface resistance, capacitance, IC and other electronic components welding.
The main function of tin paste is combustion-supporting agent, which can remove the oxide layer and some other surface contamination, so that the welding can proceed smoothly.

Name	Role
Thixotropic agent	Adjust the spread of tin paste and printing performance to prevent the appearance of tail, adhesion and other phenomena.
Activator	PCB removal of oxide material from the surface layer of the pad and the welding part of the parts has the effect of reducing the surface tension of tin and lead.
Solvent solvent	In the process of mixing tin paste, it plays a uniform role in regulating the life of tin paste.
Resin	Enhance solder paste adhesion; protect and prevent PCB oxidation after welding.

How the solder paste printing machine works: the circuit board is fixed on the positioning table, and then the left and right scraper of the printing machine prints the solder paste to the corresponding pad by tempering, and the uniform PCB of the leakage printing is input to the placement machine through the transmission table for automatic placement.
