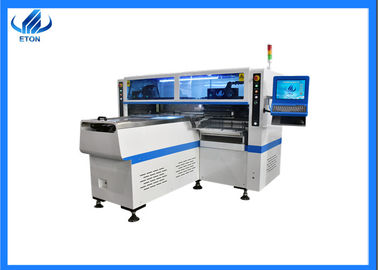

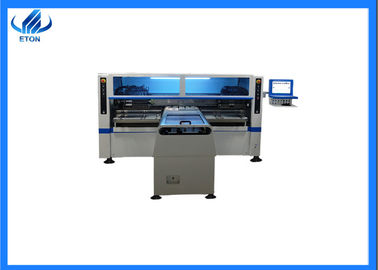

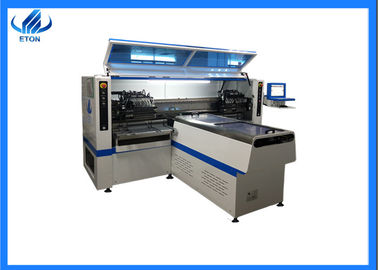

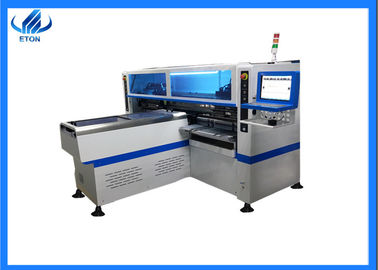

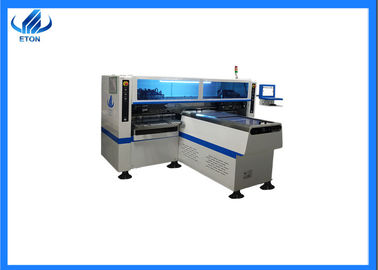

smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor

Large Image : smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor

Product Details:

Place of Origin:	china
Brand Name:	eton
Certification:	ccc,ce,sira
Model Number:	ht-f9
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$80000/unit
Packaging Details:	Waterproof material packing and wooden case
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	80 units per months

Contact Now

Detailed Product Description

Pcb Size:	80350mm~1200350mm	Pcb Clamp;ing:	Adjustable Pressure Pneumatic
System:	Windows7	Software:	R&d Independently
Display:	Touch Screen Monitor	Input Device:	Keyboard,mouse
No. Of Camera:	5	POWER:	380AC 50HZ
Power Consmption:	6kw	Mounting Mode:	Group To Take And Group To Mount
Components Space:	0.2mm	Feeders Stations:	68PCS
Nozzles:	68PCS	Mounting Speed:	200000CPH
Mounting Height:	13mm

1.product details

Producing with 2～４ types of materials with capacity at same time, available for 5m,50m or any length of flexible strip and roll to roll.
Dual-arm four modules with 17 nozzles for each mounting part, and part A/B/C/D can be mounted separately or synchronously.

smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 0

2.product Technical parameters of high speed pick and place machine

Model number	HT-F9
Dimension	270021201550mm
PCB size	1200330～80330mm
PCB thickness	0.5～5mm
PCB clamping	adjustable pressure pneumatic
mounting mode	group to take and group to mount
system	windows 7
display	touch screen monitor
input device	keyboard,mouse
NO.of camera	5 sets of imported camera
mounting precision	±0.03mm
mounting height	<13mm
mounting speed	200000CPH
components	LED3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers
components space	0.2mm
NO.of feedings station	68pcs
NO.of nozzles	68pcs
power	380AC 50HZ
power consumption	6KW
operating environment	23℃±3℃
conveyor transmission	MAX length:1200mm
transmission speed	>500mm/sec
transmission direction	single(left→right,right→left)
transmission mode	online drive
position mode	optical
air pressure	>5.0kg/c㎡
electrical control	independent research and development by ETON
motion control card module 1set	independent research and development by ETON
X.Y axis drive way	high-end magnetic linear motor+servo motor
feeding way	electric feeder with double motor

3.product features of smt pick and place machine

X,Y,Z drive way is high-end magnetic linear motor+servo motor.
PCB clamping is adjustable pressure pneumatic.
Vision for the flight identification ,mark correction.
Electronic feeder feeding system.
Non-stop material re-loading function.
Auto-optimization after coordinates generated.

smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 2

4.Packing & shipping of smt mounter machine

smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 3

5.Company profile

smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 4

smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 5

smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 6

smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 7

6.Our Our certificates and certifications

smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 8

7.our services

8. trade show

smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 10

smd mounting machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 11

Industry related knowledge

Composition and function of mount head

A mounting machine consists of three parts: a mounting head, a bearing mechanism and a servo system driven by X-Y coordinates. The mount head is an intelligent manipulator, through the program control, automatically correct the position, pick up the components according to the requirements, accurately stick to the preset pad, complete the three-dimensional reciprocating motion. It is the most complex and critical part of the placement machine. The mounting head of the placement machine is composed of suction nozzle, visual alignment system, sensor and other components.
There are two kinds of mounting head: single head and long head, and long head is divided into fixed type and rotary type. The suction nozzle of the early single-head placement machine absorbs a component, realizes the component alignment through the mechanical alignment mechanism and gives the feeder a signal, so that the next component enters the suction position. But the patch is slow, and it usually takes 1 S. to attach a piece of components In order to improve the speed of the patch, people adopt the method of increasing the number of mount heads, that is, using multiple mount heads to improve the speed of the patch. The multi-head placement machine increased from single head to 3~6 mounting heads, no longer using mechanical alignment, but improved to a variety of forms of optical alignment, working separately absorb components, after the alignment and then paste to the designated position of the PCB. At present, the patch speed of this type of machine has reached the level of 30,000 components per hour, and the price of this kind of machine is low and can be used in combination. A rotating multihead structure can also be used, and the current patch speed in this way has reached ten thousand (4.5~5) per hour.
