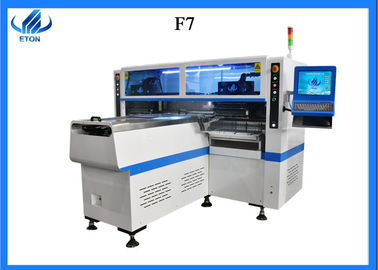

smd pick and place machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor

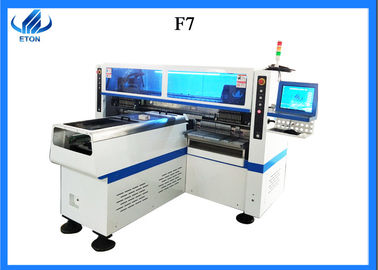

smd pick and place machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor

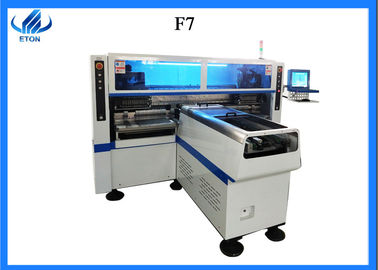

smd pick and place machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor

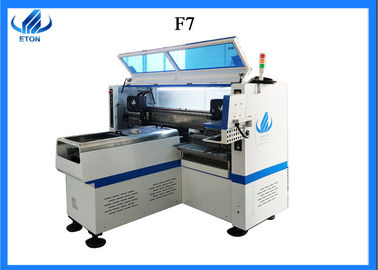

Large Image :  smd pick and place machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor

Product Details:
Place of Origin: china
Brand Name: eton
Certification: ccc,ce,sira
Model Number: ht-f7
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $75000.00/unit
Packaging Details: Waterproof material packing and wooden case
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 80 units per months
Contact Now
Detailed Product Description
Pcb Size: 80*330mm~1200*330mm Pcb Clamp;ing: Adjustable Pressure Pneumatic
System: Windows7 Software: R&d Independently
Display: Touch Screen Monitor Input Device: Keyboard,mouse
No. Of Camera: 5 POWER: 380AC 50HZ
Power Consmption: 6kw Mounting Mode: Group Of Group Of Stick
Components Space: 0.2mm Feeders Stations: 68PCS
Nozzles: 34PCS Mounting Speed: 150000CPH~180000CPH
Mounting Height: 40mm





1.product details



Components of this high speed SMT mounter machine ht-f7 can mount include LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.

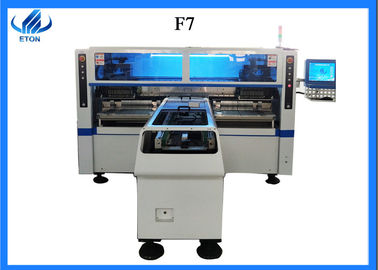

smd pick and place machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 0





2.product Technical parameters​  of high speed pick and place machine



Model numberHT-F7
Dimension2700*2120*1550mm
PCB size80*330～1200*330mm
PCB thickness0.5～5mm
PCB clampingadjustable pressure pneumatic
mounting modegroup to take and group to mount
systemwindows 7
displaytouch screen monitor
input devicekeyboard,mouse
NO.of camera5 sets of imported camera
mounting precision±0.02mm
mounting height<13mm
mounting speed200000CPH
components space0.2mm
NO.of feedings station68pcs
NO.of nozzles34pcs
power380AC 50HZ
power consumption6KW
operating environment23℃±3℃
conveyor transmissionMAX length:1200mm
transmission speed>500mm/sec
transmission directionsingle(left→right,right→left)
transmission modeonline drive
position modeoptical
air pressure>5.0kg/c㎡
electrical controlindependent research and development by ETON
motion control card module 1setindependent research and development by ETON
X.Y axis drive wayhigh-end magnetic linear motor+servo motor
feeding wayelectric feeder with double motor




smd pick and place machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 1





 3.product features of smt pick and place machine

  • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  • PCB clamping is adjustable pressure pneumatic.
  • Vision for the flight identification ,mark correction.
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated.

smd pick and place machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 2


4.Packing & shipping of smt mounter machine



We usually use waterproof material to pack our products in wooden cases. If the customer has special packing requirements, we can negotiate and conclude a contract. Partial shipments and transshipment are subject to the contract.

We usually ship within 30 days of receipt of payment.



smd pick and place machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 3






5.Company profile



smd pick and place machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 4

smd pick and place machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 5



smd pick and place machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 6


smd pick and place machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 7

Business terms:



Accepted delivery termsEXW, FOB, CIF, CFR
Accepted payment currencyUSD,CNY
Accepted payment typeL/C, T/T
Nearest portShenzhen



6.Our  Our certificates and certifications

smd pick and place machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 8



7.our services


smd pick and place machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 9

8. trade show


smd pick and place machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 10

















smd pick and place machine high speed pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 11







contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825













Industry related knowledge





  • Features of High Speed Placement Machine
  • High-speed placement machine structure can be composed of any structure. Structure: turret type, compound type and large parallel type, etc.
  • The range of mountable components for high-speed mounting machine is usually small, and the range of mountable components is from 0603-7474;
  • The packaging form of the components attached to the high-speed placement machine can usually be only rolled tape;
  • Many high-speed mounting machines can be mounted at full speed when picking up and mounting small components, and the number of high-speed mounting machine heads is more;
  • The patch suction nozzle of a high speed placement machine usually has only a vacuum suction nozzle.
