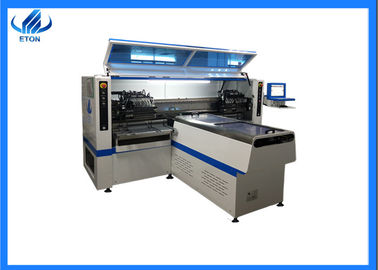

Large Image :  smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor

Product Details:
Place of Origin: china
Brand Name: eton
Certification: ccc,ce,sira
Model Number: ht-T9
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $ 95,000 /unit
Packaging Details: Waterproof material packing and wooden case
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 80 units per months
Contact Now
Detailed Product Description
Pcb Size: 250mm*any Length Pcb Clamp;ing: Adjustable Pressure Pneumatic
System: Windows7 Software: R&d Independently
Display: Touch Screen Monitor Input Device: Keyboard,mouse
No. Of Camera: 5 POWER: 380AC 50HZ
Power Consmption: 6kw Mounting Mode: Group Of Group Of Stick
Components Space: 0.2mm Feeders Stations: 64PCS
Nozzles: 64PCS Mounting Speed: 200000CPH
Mounting Height: 13mm
Highlight:

Bulb Light Smt Mounter Machine

,

LED Display Smt Mounter Machine





1.product details



Components: LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
Application:5m,50m or any length of flexible strip and roll to roll;RGB


smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 0





2.product Technical parameters​  of high speed pick and place machine



Model numberHT-T9
Dimension2450*2100*1550mm
PCB size250mm*any length
PCB thickness0.5～1.5mm
PCB clampingadjustable pressure pneumatic
mounting modegroup to take and group to mount
systemwindows 7
displaytouch screen monitor
input devicekeyboard,mouse
NO.of camera5 sets of imported camera
mounting precision±0.02mm
mounting height<13mm
mounting speed200000CPH
components space0.2mm
NO.of feedings station64pcs
NO.of nozzles64pcs
power380AC 50HZ
power consumption6KW
operating environment23℃±3℃
conveyor transmissionany length
transmission speed>500mm/sec
transmission directionsingle(left→right,right→left)
transmission modeonline drive
position modeoptical
Air Force0.5mpa
electrical controlindependent research and development by ETON
motion control card module 1setindependent research and development by ETON
X.Y axis drive wayhigh-end magnetic linear motor+servo motor
feeding wayelectric feeder with double motor


smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 1






 3.product features of smt pick and place machine

  • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  • PCB clamping is adjustable pressure pneumatic.
  • Vision for the flight identification ,mark correction.
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated.

smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 2





4. The warranty


Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.







5.Packing & delivery of smt mounter machine



smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 3








6.Company profile



smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 4

smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 5



smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 6

Business terms:



Accepted delivery termsEXW, FOB, CIF, CFR
Accepted payment currencyUSD,CNY
Accepted payment typeL/C, T/T
Nearest portShenzhen



7.Our  Our certificates and certifications



smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 7




8. trade show


smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 8




9. FAQ

smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 9











smt equipment high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 10







contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825













Industry related knowledge





  • Adaptability of SMT placement machine

Adaptability of the SMT placement machine refers to the following two major elements

  • Type of components that can be attached

The mounting machines with a wide range of mounting components have better adaptability than those with only SMC or a few SMD types. The main factors affecting the type of mounting components of the patch machine are the precision of the mount, the mounting tool, the compatibility between the centering mechanism and the components, and the number and type of feeder that the patch can accommodate. Some patch machines can only hold limited feeders, while some patch machines can hold most or all types of feeders, and the number of feeders that can be accommodated is also relatively large, obviously the latter is more adaptable than the former. Capacity of the feeder on the placement machine is usually expressed by the maximum number of 8 mm braided feeder that can be mounted on the placement machine.
