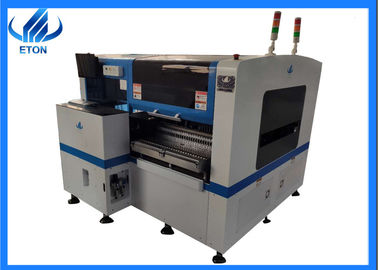

multifanctional high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor

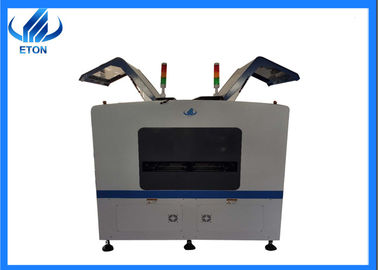

multifanctional high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor

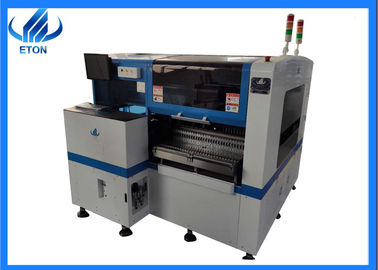

multifanctional high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor

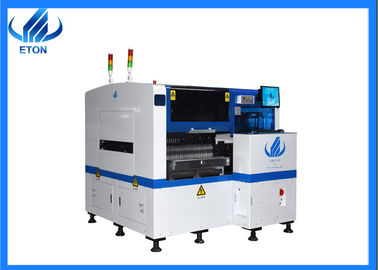

Large Image :  multifanctional high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor

Product Details:
Place of Origin: china
Brand Name: eton
Certification: ccc,ce,sira
Model Number: ht-e5d
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $75000/unit
Packaging Details: Waterproof material packing and wooden case
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 80 units per months
Contact Now
Detailed Product Description
Pcb Size: 100*100mm~500*300mm Pcb Clamp;ing: Adjustable Pressure Pneumatic
System: Windows7 Software: R&d Independently
Display: Touch Screen Monitor Input Device: Keyboard,mouse
No. Of Camera: 4 POWER: 380AC 50HZ
Power Consmption: 8kw Mounting Mode: Group Take Cent Stick, Cent Take Cent Stick
Components Space: 0.2mm Feeders Stations: 60PCS
Nozzles: 16PCS Mounting Speed: 80000CPH
Mounting Height: 40mm





1.product details



HT-E5D machine is Dual system,dual module multifunctional mounter with high capacity of 80000CPH. It can mount capacitors,resistors,LED3014/3020/3528/5050,IC and shaped components. It applies to power driver,electric board,lens,linear bulb,household appliance and etc.

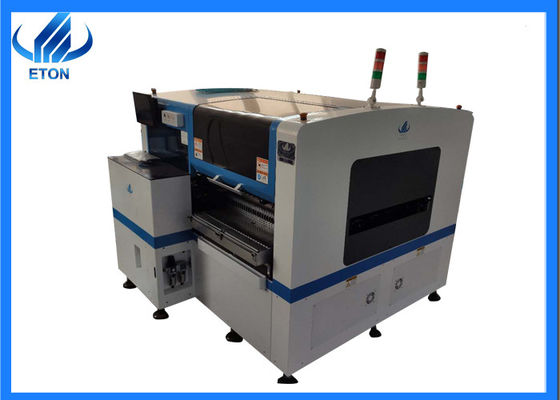

multifanctional high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 0





2.product Technical parameters​  of high speed pick and place machine



Place of origin Guangdong,China
Model number HT-E5D
dimension 1650*2000*1550
PCB size 100*100～500*300
PCB thickness 0.5～3mm
components LED,capacitors,resistors,shaped components,etc.
Mounting speed 80000CPH
Mounting mode Group picking and separate placing, separate picking and separate placing.
Mounting precision ±0.02cm
Feeder stations 60pcs
nozzles 16pcs


multifanctional high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 1






 3.product features of smt pick and place machine

  • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  • PCB clamping is adjustable pressure pneumatic.
  • Vision for the flight identification ,mark correction.
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated.

multifanctional high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 2





4. The warranty


Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.







5.Packing & delivery of smt mounter machine



multifanctional high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 3








6.Company profile



multifanctional high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 4

multifanctional high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 5



multifanctional high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 6

Business terms:



Accepted delivery terms EXW, FOB, CIF, CFR
Accepted payment currency USD,CNY
Accepted payment type L/C, T/T
Nearest port Shenzhen



7.Our  Our certificates and certifications



multifanctional high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 7




8. trade show


multifanctional high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 8




9. FAQ

multifanctional high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 9











multifanctional high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 10







contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825













Industry related knowledge





Adaptability of SMT placement machine



Operation Process of Patch Machine

  • To understand the common marking of placement machines

  • Fully understand the significance and role of these placement machine marking, thus play a warning role, after fully understanding the placement machine can be more safe to use the placement machine. Also check if the machine air pressure reaches 5 KG..

  • Turn on the patch power
  • Turn on the air conditioning switch, set the temperature 20℃-26℃;
  • turn on the machine total power and place the switch at "ON".
  • Check the environment around the placement machine
  • Check for obstructions around the shaft and remove them in time;
  • When feeding, pay attention to whether the feeder cover is fastened or not to prevent the feeder cover from rising.
  • Setup
  • turn on the power supply of the placement machine, the switch is placed at "ON" place;
  • Turn on the screen display device power (green switch), at this time the machine requires ZERO SETTTNG, to press the START key, the machine's X,Y axis will return to the original position of each, the machine has been in the state of return to zero, waiting to start production.
