Product Details:
Payment & Shipping Terms:
|
| Pcb Size: | 100*100mm~1200*350mm | Pcb Clamp;ing: | Adjustable Pressure Pneumatic |
|---|---|---|---|
| System: | Windows7 | Software: | R&d Independently |
| Display: | Touch Screen Monitor | Input Device: | Keyboard,mouse |
| No. Of Camera: | 2 | POWER: | 380AC 50HZ |
| Power Consmption: | 4kw | Mounting Mode: | Group Take Cent Stick, Cent Take Cent Stick |
| Components Space: | 0.2mm | Feeders Stations: | 30PCS |
| Nozzles: | 8PCS | Mounting Speed: | 40000CPH |
| Mounting Height: | 40mm | ||
| High Light: | Bulb Light Smt Mounter Machine,LED Display Smt Mounter Machine |
||
1.product details

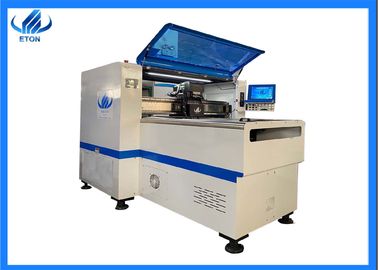

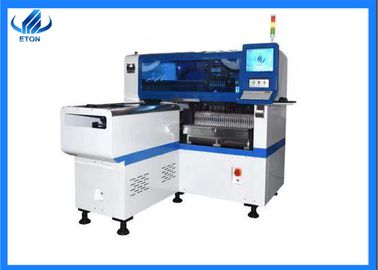

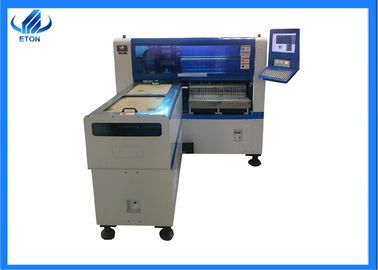

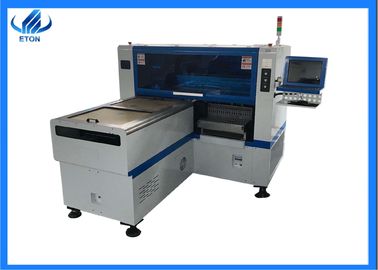

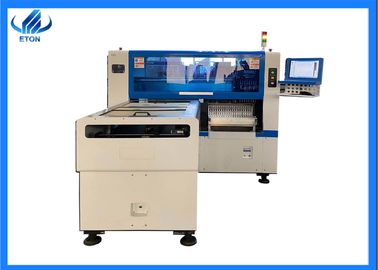

HT-E8S machine is single module multifunctional mounter with high capacity of 40000CPH. It can mount capacitors,resistors,LED3014/3020/3528/5050,IC and shaped components. It applies to power driver,electric board,lens,linear bulb,household appliance and etc.
2.product Technical parameters of high speed pick and place machine
3.product features of smt pick and place machine
4. The warranty
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
5.Packing & delivery of smt mounter machine
6.Company profile
Business terms:
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
7.Our Our certificates and certifications
8. trade show
9. FAQ
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
SMT placement machine feeding system is responsible for the placement machine to transport the need to mount components of a whole system, usually referred to as the feeding system components are also called Fida.
Over-top arch SMT placement machine can support different feeder types including bulk (bulk)/ strip (tape-and-real)/ tube (tube)/ shaped (odd-form) and other customer designs. In contrast, high-speed turret and large-scale parallel systems are fed entirely by bulk boxes or packed with materials.
when the patch components packaging form is not bulk or band material, the over-top arch type SMT placement machine may be the only option: SMT high-speed placement machine is excluded from consideration as it can not automatically supply these materials. As a result, SMT OEMs should look for components that expand their existing options
The transliteration of Fida i.e. Feeder in the feeding system of the SMT placement machine is for the feeder or feeder, also called feeder, whose function is to install the SMD patch element on the feeder, which provides the element for the placement machine to carry on the patch. For example, there is a PCB that needs to be fitted with six components, and then six feeder mounting elements are required to feed the placement machine. II. The classification of feeder 1. Distinguish by machine brand and model. Generally, the feeder used by different brands of placement machines is different, but the same brand and different models can generally be used.
