led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor

led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor
led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor

Large Image :  led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor

Product Details:
Place of Origin: china
Brand Name: eton
Certification: ccc,ce,sira
Model Number: ht-t9
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $ 95,000 /unit
Packaging Details: Waterproof material packing and wooden case
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 80 units per months
Contact Now
Detailed Product Description
Pcb Size: 250mm*any Length Pcb Clamp;ing: Adjustable Pressure Pneumatic
System: Windows7 Software: R&d Independently
Display: Touch Screen Monitor Input Device: Keyboard,mouse
No. Of Camera: 5 POWER: 380AC 50HZ
Power Consmption: 6kw Mounting Mode: Group Of Group Of Stick
Components Space: 0.2mm Feeders Stations: 64PCS
Nozzles: 64PCS Mounting Speed: 200000CPH
Mounting Height: 13mm







1.product details

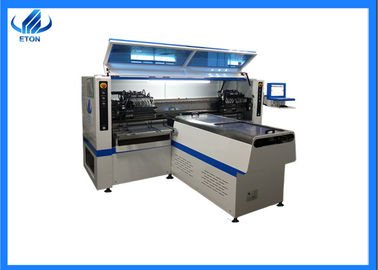

HT-X9 is dual-arm magnetic levitation LED high speed pick and place machine.the capacity reach 200000CPH.It is Suitable for 0.5M,1M Strip, Tube and Panel Light.it can mount LED 3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 0





2.product Technical parameters​  of high speed pick and place machine



Model number HT-X9
Dimension 2450*2100*1550mm
PCB size 250mm*any length
PCB thickness 0.5～1.5mm
PCB clamping adjustable pressure pneumatic
mounting mode group to take and group to mount
system windows 7
display touch screen monitor
input device keyboard,mouse
NO.of camera 5 sets of imported camera
mounting precision ±0.02mm
mounting height <13mm
mounting speed 200000CPH
components space 0.2mm
NO.of feedings station 64pcs
NO.of nozzles 64pcs
power 380AC 50HZ
power consumption 6KW
operating environment 23℃±3℃
conveyor transmission any length
transmission speed >500mm/sec
transmission direction single(left→right,right→left)
transmission mode online drive
position mode optical
Air Force 0.5mpa
electrical control independent research and development by ETON
motion control card module 1set independent research and development by ETON
X.Y axis drive way high-end magnetic linear motor+servo motor
feeding way electric feeder with double motor


led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 1



 3.product features of smt pick and place machine

  • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  • PCB clamping is adjustable pressure pneumatic.
  • Vision for the flight identification ,mark correction.
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated.

led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 2





4. The warranty


Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.





 5.product parts of smt mounter



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 3



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 4









6.Packing & delivery of smt mounter machine





led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 5








7.Company profile



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 6

led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 7



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 8

Business terms:



Accepted delivery terms EXW, FOB, CIF, CFR
Accepted payment currency USD,CNY
Accepted payment type L/C, T/T
Nearest port Shenzhen



8.Our  Our certificates and certifications



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 9




9. trade show




led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 10




10. FAQ



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 11











led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 12







contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825













Industry related knowledge



  • SMT Placement Machine Operation Flow
  • MMI initialization of SMT placement machine

Execute MMI, program to initialize automatically and check the status of each module of the device.

  • Electric power supply for SMT mounting machine

press the READY" button.

  • Carry out a regression origin action on the SMT placement machine

on the teaching box or MMI screen click Home" key to return to the origin.

  • Warmer process SMT mounting machine (Warming-Up)

In order to improve the precision of the mount, the heater is operated about 10 minutes before the start of the operation.

  • PCB file download/business confirmation
  • open the PCB file to be done and download it;
  • Before starting the operation, check the original operation status and confirm the production target.
