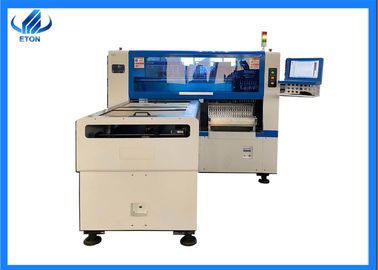

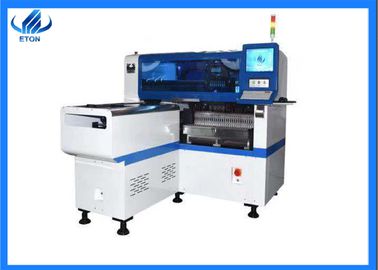

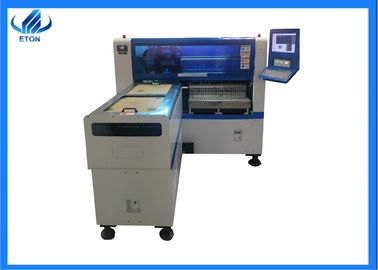

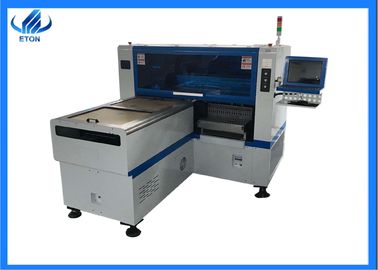

Large Image :  led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor

Product Details:
Place of Origin: china
Brand Name: eton
Certification: ccc,ce,sira
Model Number: ht-e8s
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $43000/unit
Packaging Details: Waterproof material packing and wooden case
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 80 units per months
Contact Now
Detailed Product Description
Pcb Size: 100*100mm~1200*350mm Pcb Clamp;ing: Adjustable Pressure Pneumatic
System: Windows7 Software: R&d Independently
Display: Touch Screen Monitor Input Device: Keyboard,mouse
No. Of Camera: 2 POWER: 380AC 50HZ
Power Consmption: 4kw Mounting Mode: Group Take Cent Stick, Cent Take Cent Stick
Components Space: 0.2mm Feeders Stations: 30PCS
Nozzles: 8PCS Mounting Speed: 40000CPH
Mounting Height: 40mm
Highlight:

Bulb Light Smt Mounter Machine

,

LED Display Smt Mounter Machine







1.product details

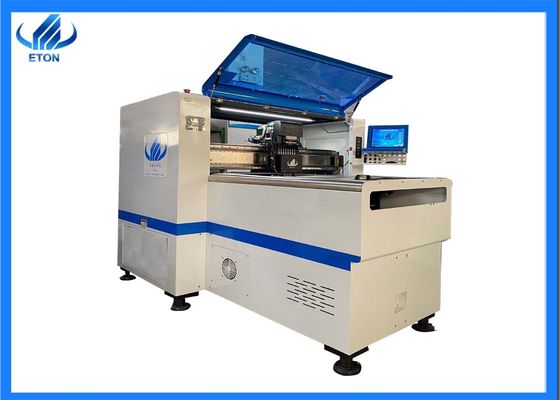

HT-E8S machine is single module multifunctional mounter with high capacity of 40000CPH. It can mount capacitors,resistors,LED3014/3020/3528/5050,IC and shaped components. It applies to power driver,electric board,lens,linear bulb,household appliance and etc.



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 0





2.product Technical parameters​  of high speed pick and place machine



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 1

led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 2




 3.product features of smt pick and place machine

  • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  • PCB clamping is adjustable pressure pneumatic.
  • Vision for the flight identification ,mark correction.
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated.

led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 3





4. The warranty


Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.





 5.product parts of smt mounter



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 4



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 5









6.Packing & delivery of smt mounter machine





led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 6








7.Company profile



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 7

led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 8



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 9

Business terms:



Accepted delivery terms EXW, FOB, CIF, CFR
Accepted payment currency USD,CNY
Accepted payment type L/C, T/T
Nearest port Shenzhen



8.Our  Our certificates and certifications



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 10




9. trade show




led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 11




10. FAQ



led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 12











led pick and place high speed pick and place mounter,smt pick and place machine,automatic mounter,magnetic linear motor 13







contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825













Industry related knowledge



  • Role of optical system of placement machine

the confirmation of the position of the PCB; the identification of the positioning mark; the calculation of the placement machine origin position error; feedback to the motion control system; the confirmation of components: component shape, component center, component pin coplanarity and deformation in the PCB design also add a small range of geometric position recognition, that is, add the component image recognition mark to the position of the fine spacing QFP to ensure that the fine spacing device mount is accurate.

  • SMT patch equipment production line
  • Soldering press

A solder paste press is located at the front end of a SMT production line and is used to print solder paste or patch glue. It prints the solder paste or patch glue correctly to the pad or corresponding position of the PCB to prepare for the mounting of the components. presses for SMT are broadly divided into three types: manual, semi-automatic, and fully automatic.

a patch seat is at the back of the printing press in the SMT production line. The function is to remove the surface mount components from the packaging and install them accurately to the fixed position of the printed circuit board. SMT loading function and production capacity of the production line mainly depend on the function and speed of the loading machine.
