smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line

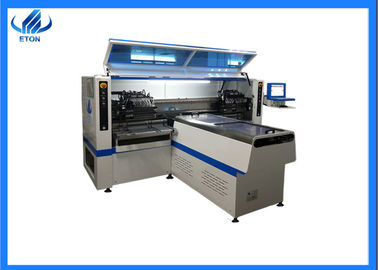

Large Image : smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line

Product Details:

Place of Origin:	china
Brand Name:	eton
Certification:	ccc,ce,sira
Model Number:	ht-t9
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$ 95,000 /unit
Packaging Details:	Waterproof material packing and wooden case
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	80 units per months

Contact Now

Detailed Product Description

Pcb Size:	250mm*any Length	Pcb Clamp;ing:	Adjustable Pressure Pneumatic
System:	Windows7	Software:	R&d Independently
Display:	Touch Screen Monitor	Input Device:	Keyboard,mouse
No. Of Camera:	5	POWER:	380AC 50HZ
Power Consmption:	6kw	Mounting Mode:	Group Take Cent Stick, Cent Take Cent Stick
Components Space:	0.2mm	Feeders Stations:	64PCS
Nozzles:	64PCS	Mounting Speed:	200000CPH
Mounting Height:	13mm

product details

Producing with 2～４ types of materials with capacity at same time, available for 5m,50m or any length of flexible strip and roll to roll.

Dual-arm four modules with 17 nozzles for each mounting part, and part A/B/C/D can be mounted separately or synchronously.

Calibration automatically, high precision.

Group to take and group to mount.

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 0

product Technical parameters of high speed pick and place machine

Model number	HT-F9
Dimension	270021201550mm
PCB size	1200330～80330mm
PCB thickness	0.5～5mm
PCB clamping	adjustable pressure pneumatic
mounting mode	group to take and group to mount
system	windows 7
display	touch screen monitor
input device	keyboard,mouse
NO.of camera	5 sets of imported camera
mounting precision	±0.03mm
mounting height	<13mm
mounting speed	200000CPH
components	LED3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers
components space	0.2mm
NO.of feedings station	68pcs
NO.of nozzles	68pcs
power	380AC 50HZ
power consumption	6KW
operating environment	23℃±3℃
conveyor transmission	MAX length:1200mm
transmission speed	>500mm/sec
transmission direction	single(left→right,right→left)
transmission mode	online drive
position mode	optical
air pressure	>5.0kg/c㎡
electrical control	independent research and development by ETON
motion control card module 1set	independent research and development by ETON
X.Y axis drive way	high-end magnetic linear motor+servo motor
feeding way	electric feeder with double motor

product features of smt pick and place machine

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 2

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 3

Business terms of smt mounter

Accepted delivery terms	EXW, FOB, CIF, CFR
Accepted payment currency	USD,CNY
Accepted payment type	L/C, T/T
Nearest port	Shenzhen

product parts of smt mounter

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 5

Packing & delivery of smt mounter machine

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 6

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 7

product services of smt pick and place machine

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 8

Company profile

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 9

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 10

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 11

Our Our certificates and certifications

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 12

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 13

our clients

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 14

trade show

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 15

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 16

contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825

Industry related knowledge

How to Improve the Efficiency of Patch Production

Improve the efficiency by optimizing the processing of the SMT mounting machine

SMT the production line consists of many equipments, including tin paste printing machine, SMT placement machine, reflow welding and so on, but in fact the speed of production line is determined by SMT placement machine. The production line of a SMT placement machine usually includes a high speed machine and a high precision placement machine, the former is mainly fitted with flake elements, while the latter is mainly fitted with IC and profiled elements. If the time of completion of one mount process (hereinafter referred to as mount time) is equal and minimum, the whole SMT production line exerts maximum production capacity. In order to achieve this goal, we can process the mount procedure according to the following method.
