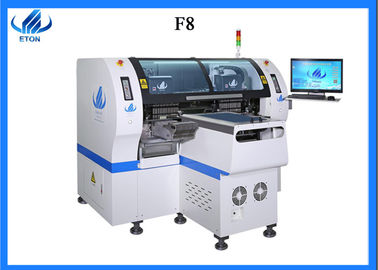

Large Image :  smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line

Product Details:
Place of Origin: china
Brand Name: eton
Certification: ccc,ce,sira
Model Number: ht-f8
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $70,000.00/unit
Packaging Details: Waterproof material packing and wooden case
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 80 units per months
Contact Now
Detailed Product Description
Pcb Size: 250mm*any Length Pcb Clamp;ing: Adjustable Pressure Pneumatic
System: Windows7 Software: R&d Independently
Display: Touch Screen Monitor Input Device: Keyboard,mouse
No. Of Camera: 5 POWER: 380AC 50HZ
Power Consmption: 5kw Mounting Mode: Group Take Cent Stick, Cent Take Cent Stick
Components Space: 0.2mm Feeders Stations: 32PCS
Nozzles: 32PCS Mounting Speed: 200000CPH
Mounting Height: 13mm







product details





smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 0



Components: LED2121/2727/3528/5050 and resistor,capacitors,bridge rectifiers,etc.

Application:LED display









product Technical parameters​  of high speed pick and place machine


Model number HT-F8
Dimension 1600*1900*1550mm
PCB size 80*110～345*600mm
PCB thickness 0.5～5mm
mounting mode group to take and group to mount
system windows 7
display LED monitor
input device keyboard,mouse
NO.of camera 5 sets of imported camera
mounting precision ±0.02mm
mounting height <15mm
mounting speed 150000CPH
components space 0.2mm
NO.of feedings station 32pcs
NO.of nozzles 32pcs
power 220AC 50HZ
power consumption 5KW
operating environment 23℃±3℃
conveyor transmission MAX length:1200mm
transmission speed >500mm/sec
transmission direction single(left→right,right→left)
transmission mode Auto online drive
position mode optical
air pressure >5.0kg/c㎡
electrical control independent research and development by ETON
motion control card module 1set independent research and development by ETON
X.Y axis drive way servo motor
feeding way electric feeder with double motor


smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 1




product features of smt pick and place machine



smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 2







smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 3






 product parts of smt mounter



smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 4



smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 5








Packing & delivery of smt mounter machine





smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 6

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 7



product services of smt pick and place machine



 smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 8












Company profile





smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 9

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 10


 smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 11





Our  Our certificates and certifications





smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 12

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 13










































smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 14







contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825













Industry related knowledge



  • How to Improve the Efficiency of Patch Production

  • SMT equipment to carry out regular inspection and maintenance is also a strong guarantee to ensure the full play of its effectiveness. Many companies often ignore this point in the production process because of the heavy production tasks. Once the equipment can not be properly produced due to failure, the loss caused by its shutdown is far greater than the cost of regular equipment shutdown inspection and maintenance. Therefore, it is necessary to emphasize the regular scientific inspection and maintenance of the equipment so that the equipment is in good condition.

    All in all, the method of improving the efficiency of SMT placement machine production line is still the same as the quality management method in general, considering from human, machine, material, method, ring. But improving the efficiency of the SMT placement machine production line focuses on the machine and human factors.
