smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line

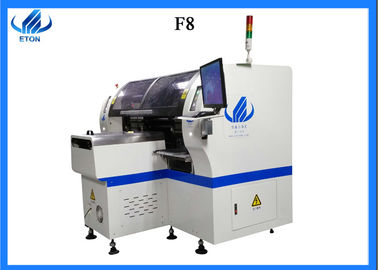

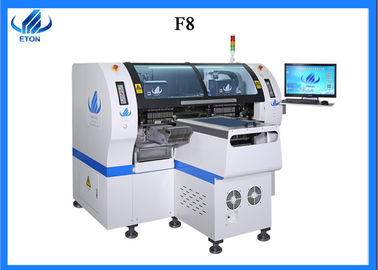

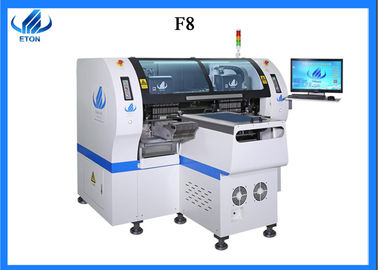

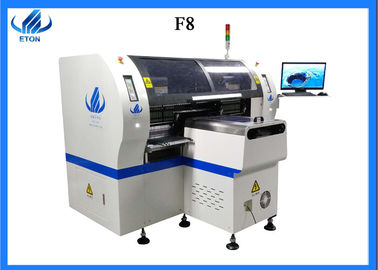

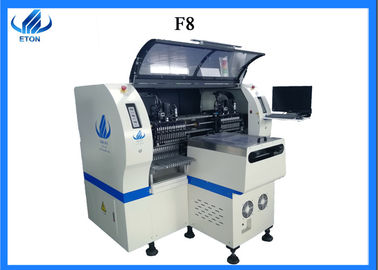

Large Image : smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line

Product Details:

Place of Origin:	china
Brand Name:	eton
Certification:	ccc,ce,sira
Model Number:	ht-f8
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$70,000.00/unit
Packaging Details:	Waterproof material packing and wooden case
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	80 units per months

Contact Now

Detailed Product Description

Pcb Size:	250mm*any Length	Pcb Clamp;ing:	Adjustable Pressure Pneumatic
System:	Windows7	Software:	R&d Independently
Display:	Touch Screen Monitor	Input Device:	Keyboard,mouse
No. Of Camera:	5	POWER:	380AC 50HZ
Power Consmption:	5kw	Mounting Mode:	Group Take Cent Stick, Cent Take Cent Stick
Components Space:	0.2mm	Feeders Stations:	32PCS
Nozzles:	32PCS	Mounting Speed:	200000CPH
Mounting Height:	13mm

product details

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 0

Components of pick and place machine ht-f8 can mount include LED2121/2727/3528/5050 and resistor,capacitors,bridge rectifiers,etc.

SMT mounter ht-f8 is especially applies to LED display. Max mounting height is 15mm,mounting speed is 150000CPH.

product Technical parameters of high speed pick and place machine

Model number	HT-F8
Dimension	160019001550mm
PCB size	80110～345600mm
PCB thickness	0.5～5mm
mounting mode	group to take and group to mount
system	windows 7
display	LED monitor
input device	keyboard,mouse
NO.of camera	5 sets of imported camera
mounting precision	±0.02mm
mounting height	<15mm
mounting speed	150000CPH
components space	0.2mm
NO.of feedings station	32pcs
NO.of nozzles	32pcs
power	220AC 50HZ
power consumption	5KW
operating environment	23℃±3℃
conveyor transmission	MAX length:1200mm
transmission speed	>500mm/sec
transmission direction	single(left→right,right→left)
transmission mode	Auto online drive
position mode	optical
air pressure	>5.0kg/c㎡
electrical control	independent research and development by ETON
motion control card module 1set	independent research and development by ETON
X.Y axis drive way	servo motor
feeding way	electric feeder with double motor

Business terms of smt mounter

Accepted delivery terms	EXW, FOB, CIF, CFR
Accepted payment currency	USD,CNY
Accepted payment type	L/C, T/T
Nearest port	Shenzhen

product parts of smt mounter

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 3

Packing & delivery of smt mounter machine

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 4

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 5

product services of smt pick and place machine

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 6

Company profile

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 7

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 8

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 9

Our Our certificates and certifications

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 10

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 11

our clients

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 12

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 13

contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825

Industry related knowledge

Rubber dispenser

The dispenser is also called glue coating machine, glue dropping machine, glue beating machine, glue filling machine and so on, specially controls the fluid. And the fluid drip, coated on the surface of the product or the product inside the automatic machine, can achieve three-dimensional, four-dimensional path dispensing, accurate positioning, accurate control glue, no wire drawing, no leakage glue, no drop glue. The dispenser is mainly used for glue, paint and other liquid precision points, injection, coating, drip to each product precise position, can be used to achieve dot, line, circle or arc type.

Features: can replace manual work, realize mechanized production; single machine can operate, simple and convenient, high speed and precision; SD card storage mode, convenient data management and file transmission between machines; can carry two-component pumping system, constitute a double-liquid automatic dispenser; can add dispensing controller and dispensing valve and other accessories to form floor dispensing equipment; can carry screw locking mechanism, configured into automatic locking screw machine; can be upgraded to on-line robot as required for various automatic assembly; load capacity, processing space.
