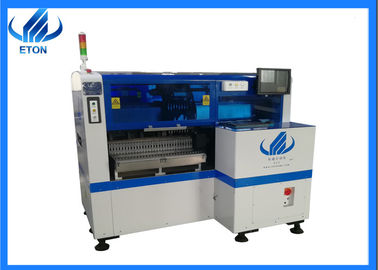

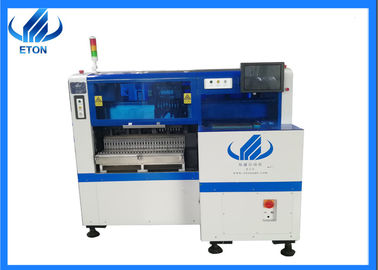

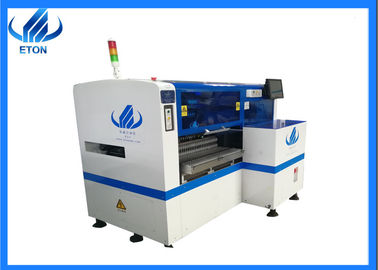

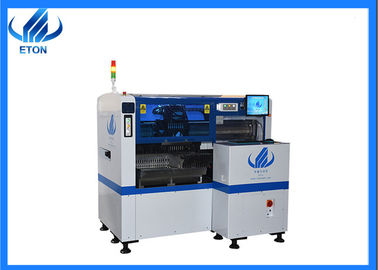

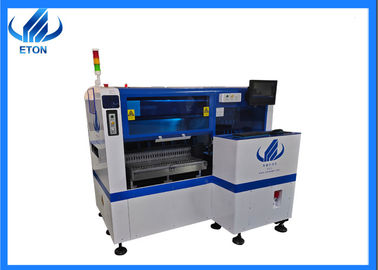

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line

Large Image : smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line

Product Details:

Place of Origin:	china
Brand Name:	eton
Certification:	ccc,ce,sira
Model Number:	ht-e5s
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$43000/unit
Packaging Details:	Waterproof material packing and wooden case
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	80 units per months

Contact Now

Detailed Product Description

Pcb Size:	100100mm~500350mm	Pcb Clamp;ing:	Adjustable Pressure Pneumatic
System:	Windows7	Software:	R&d Independently
Display:	Touch Screen Monitor	Input Device:	Keyboard,mouse
No. Of Camera:	2	POWER:	380AC 50HZ
Power Consmption:	5kw	Mounting Mode:	Group Take Cent Stick, Cent Take Cent Stick.
Components Space:	0.2mm	Feeders Stations:	30PCS
Nozzles:	8PCS	Mounting Speed:	40000CPH
Mounting Height:	40mm
Highlight:	Bulb Light Smt Mounter Machine , LED Display Smt Mounter Machine

product details

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 0

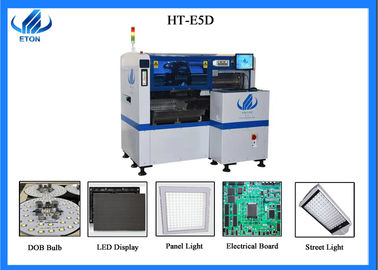

HT-E5s machine is single module multifunctional mounter with high capacity of 40000CPH. It can mount capacitors,resistors,LED3014/3020/3528/5050,IC and shaped components. It applies to power driver,electric board,lens,linear bulb,household appliance and etc.

product Technical parameters of high speed pick and place machine

Model number	HT-E5S
Dimension	1650120001570mm
PCB size	5000350～100100mm
PCB thickness	0.5～3mm
PCB clamping	adjustable pressure pneumatic
mounting mode	Group take cent stick, cent take cent stick
system	windows 7
display	touch screen monitor
input device	keyboard,mouse
NO.of camera	2 sets of imported camera
mounting precision	±0.02mm
mounting height	<40mm
mounting speed	40000CPH
components space	0.2mm
NO.of feedings station	30pcs
NO.of nozzles	8pcs
power	380AC 50HZ
power consumption	4KW
operating environment	23℃±3℃
conveyor transmission	MAX length:500mm
transmission speed	>500mm/sec
transmission direction	single(left→right,right→left)
transmission mode	online drive
position mode	optical
air pressure	>5.0kg/c㎡
electrical control	independent research and development by ETON
motion control card module 1set	independent research and development by ETON
X.Y axis drive way	high-end magnetic linear motor+servo motor
feeding way	electric feeder with double motor

product features of smt pick and place machine

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 2

Business terms of smt mounter

Accepted delivery terms	EXW, FOB, CIF, CFR
Accepted payment currency	USD,CNY
Accepted payment type	L/C, T/T
Nearest port	Shenzhen

Packing & delivery of smt mounter machine

Packing details: vacuum packing and wooden case

Shipping: Shenzhen port within 30 days after payment

Port: Shenzhen

Lead time:

Quantity (units)	Est. Time (days)
１－２	>２
3０	To be negotiated

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 4

Production line example of [pick and place machine

product services of smt pick and place machine

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 6

Company profile

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 7

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 8

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 9

trade show

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line 11

contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825

What are you still hesitating about? Come and contact us !

ETON---Quality placement machine equipment supplier !

If you want to buy a mounter, please do not hesitate to choose us!

We will serve you wholeheartedly!

Industry related knowledge

Bubble related knowledge

Ball bulb lamp is a new type of energy-saving lamp which replaces the traditional incandescent bulb. The traditional incandescent lamp (tungsten filament lamp), which has high energy consumption and short life span, has gradually been banned by governments in the global environment of tight resources, and the replacement product is electronic energy saving lamp. Although the electronic energy saving lamp has improved the energy saving effect, it is contrary to the general trend of environmental protection because of the use of many heavy metal elements which pollute the environment. With the rapid development of LED technology LED lighting has gradually become a good choice for new green lighting. LED is far superior to traditional lighting products in the aspects of luminous principle, energy saving and environmental protection.
