Product Details:
Payment & Shipping Terms:
|
| Pcb Size: | 100*100mm~1200*350mm | Pcb Clamp;ing: | Adjustable Pressure Pneumatic |
|---|---|---|---|
| System: | Windows7 | Software: | R&d Independently |
| Display: | Touch Screen Monitor | Input Device: | Keyboard,mouse |
| No. Of Camera: | 2 | POWER: | 380AC 50HZ |
| Power Consmption: | 4kw | Mounting Mode: | Group Take Cent Stick, Cent Take Cent Stick. |
| Components Space: | 0.2mm | Feeders Stations: | 30PCS |
| Nozzles: | 8PCS | Mounting Speed: | 40000CPH |
| Mounting Height: | 40mm |
product details

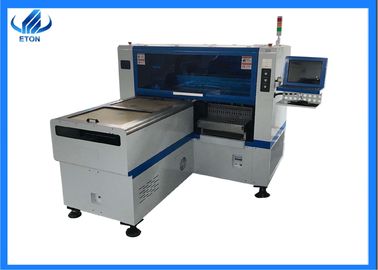

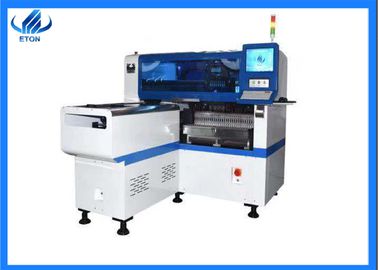

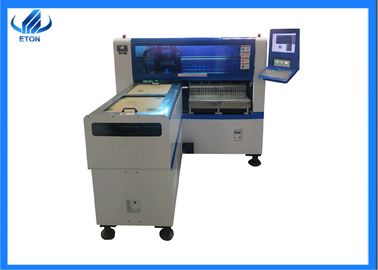

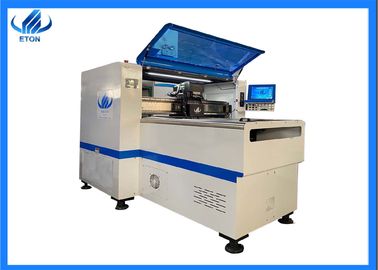

HT-E8S machine is single module multifunctional mounter with high capacity of 40000CPH. It can mount capacitors,resistors,LED3014/3020/3528/5050,IC and shaped components. It applies to power driver,electric board,lens,linear bulb,household appliance and etc.
product Technical parameters of high speed pick and place machine
Business terms of smt mounter
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
Packing & delivery of smt mounter machine
Packing details: vacuum packing and wooden case
Shipping: Shenzhen port within 30 days after payment
Port: Shenzhen
Lead time:
| Quantity (units) | Est. Time (days) |
| １－２ | >２ |
| 3０ | To be negotiated |
Production line example of [pick and place machine
Company profile
We obtain certificates and certifications
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
Reflow soldering
Development stage of reflow welding technology:
According to the continuous improvement of heat transfer efficiency and welding reliability, reflow welding can be divided into five stages.
First generation
Hot plate conduction reflow welding equipment: the slowest heat transfer efficiency ,5-30 W/m2K( different material heating efficiency is different), there is shadow effect.
Second generation
infrared thermal radiation reflow welding equipment: the heat transfer efficiency is slow ,5-30 W/m2K( different material infrared radiation efficiency is different), there is shadow effect, the color of components has a great impact on the heat absorption.
Third generation
Hot air reflow welding equipment: heat transfer efficiency is relatively high ,10-50 W/m2K, no shadow effect, color has no effect on heat absorption.
Fourth generation
Gas reflux welding system: high heat transfer efficiency ,200-300 W/m2K, no shadow effect, welding process needs to move up and down, cooling effect is poor.
Fifth
Vacuum steam condensation welding (vacuum vapor phase welding) system: closed space without hole welding, the highest heat transfer efficiency of 300 W-500W/m2K.. The welding process remains static without vibration. The cooling effect is excellent, and the color has no effect on the heat absorption.
