Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402,0805,0603,1206,SOP |
|---|---|---|---|

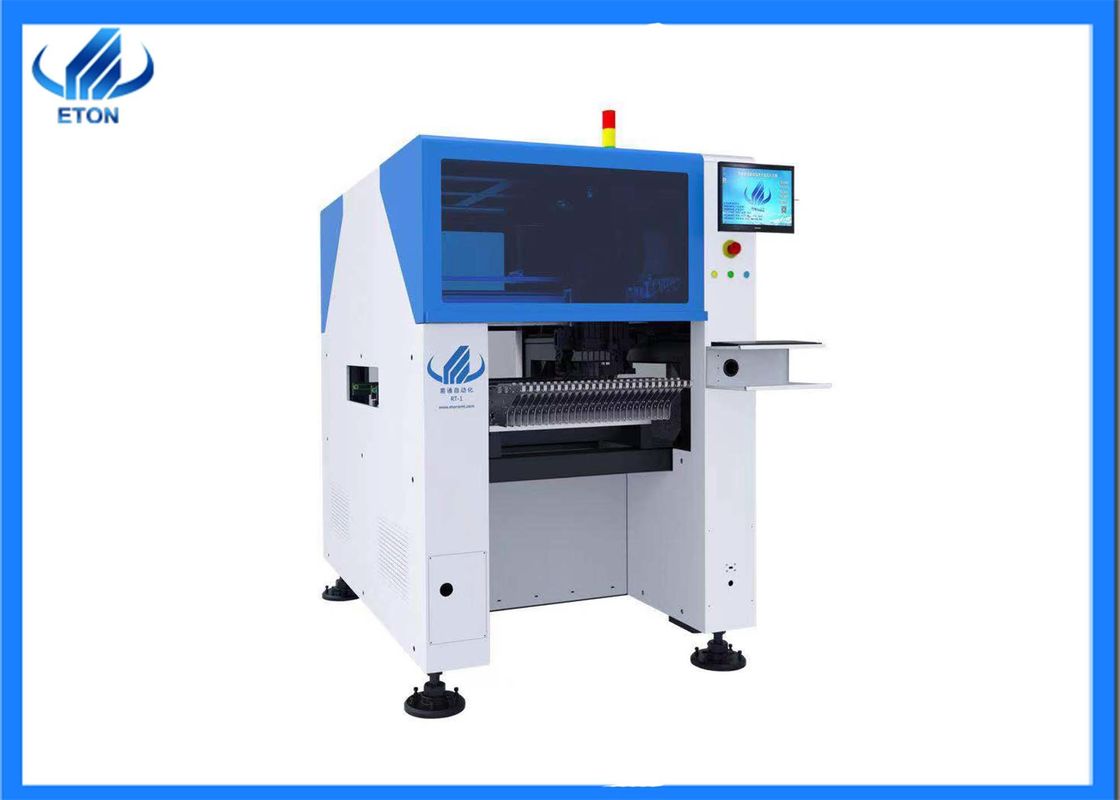

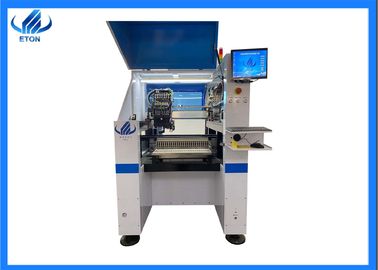

| Name: | SMT Pick And Place Machine | Condition: | 100% Original |
| Weight: | 1100kg |
Customer cases and delivery
Technical parameter
|
Type
|
Automatic
|
|
L*W*H
|
1700mm*1584mm *1655mm |
|
Total Weight
|
1100kg |
|
Power/Consumption
|
380AC 50HZ / 6KW |
|
Computer
|
Top 2 Evoc industrial computer
|
|
Mounting Height
|
<40mm |
|
Mounting Speed
|
45000 CPH(optimum) |
|
No. of feeder station
|
32PCS |
|
No. of head
|
10 nozzles |
|
X,Y,Z Axies Driving
|
Magnetic linear motor+Fuji servo motor
|
|
Screw rod
|
Japan Kuroda and IKO lead rail
|
|
Display
|
Touch screen
|
|
Software
|
Eton independent R&D,lifetime free update
|
|
Programing
|
Online or offline gerber file both available,more convinent
|
|
Grating Scale
|
UK Renishaw
|
|
Lead rail
|
Japan IKO |
|
Spline Shaft
|
Korea WONST
|
|
Camera
|
Vision camera from IDS Germany
|
|
Tank Chain
|
Igus from Germany
|
|
Electric parts
|
SMC from Japan
|
|
Transport rail
|
HIWIN from Taiwan
|
Replace human labour with machines , improve productivity
The working stability of 10 nozzles is better at the same time, 10 nozzles can rotate 360 degrees at any angle, and the angle rotation linkage is completed without affecting the efficiency
Free adjustment, easy to change board.
It can accommodate a maximum PCB size of 1200 * 330mm
Finished product graphics
Company Profile
Shenzhen Eton automation equipment Co., Ltd. was founded in 2011. In the past nine years, our company has been focusing on the research and development, production and sales of SMT machines, serving thousands of domestic and foreign customers. The company's headquarters is located in Fuyong, Bao'an District, Shenzhen, with convenient transportation, and the plant area of the headquarters is 2000 square meters. There are after-sales service points in the Pearl River Delta, Jiangsu, Zhejiang and Shanghai. In 2014, our company has been in the overseas market India, Mumbai to set up offices, welcome customers who are interested in Indian market to discuss and cooperate, and jointly develop Indian market. In addition, our equipment in addition to India, Egypt, Vietnam, Indonesia, Turkey, Thailand, Russia, etc. have a large number of exports, welcome the cooperation of foreign trade companies.
