Product Details:
Payment & Shipping Terms:
|
| Name: | SMT Stencil Printer | Dimensions: | 900*900*1650mm |
|---|---|---|---|
| Platform size: | 470-750 Mm | Weight: | 150kg |
| Precision: | ±0.02mm | Power Consumption: | 100 W |

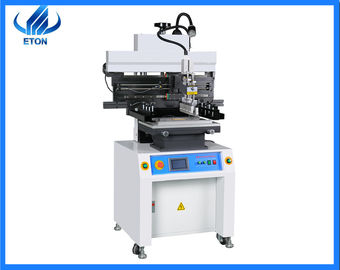

SMT Screen Automatic Solder Paste Stencil Printer
Details
SMT printing machine is suitable for solder paste printing of surface assembly components in SMT surface mount technology. Specifically, it is in the SMT electronic mounting process, the use of the mesh plate hole will be electronic fiber material (solder paste, adhesive, etc.) printed on the circuit board of the machine equipment, the purpose is to adhere to the chip electronic components.
Preparation
1. Clean the working table and necessary tools, and place the articles in the required position;
2. Choose the screen board according to the product model
3. Stir the naturally placed desen solder paste with a solder mixer for 2-3 minutes or use a solder mixer to make the flux even;
4. The PCB must be baked in an oven before use, and the oven temperature should be adjusted to 100℃ for 2-3 minutes.
Specifications:
| Model | ET-S300 |
| Dimensions | 900*900*1650mm |
| Platform size | 470-750 mm |
| Template size: | 300×400mm |
| Power Consumption | 100W |
| Power | 220v50/60hz |
| Control | PLC&Touch screen |
| Air press | 4-6 kg/㎡ |
| Repeatability precision | ±0.02mm |
| Positioning mode | Outside/Reference hole |
| Weight | Approx.150Kg |
Attention
1. Body is not allowed to enter the machine during operation;
2. The maximum time from solder paste printing to reflow soldering shall not exceed 4 hours;
3. Check the completeness of the scraper before operation.
Logistics and delivery
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
FAQ
1.Choose which mode of transportation?
Our modes of transportation are flexible, including water, land and air transportation.
2.Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
3.What is the delivery date?
We will deliver the goods after 30 days' deposit.
4. Is this machine easy to operate?
Of course, the operating system supports Chinese-English interface display, easy to understand and operate.
5.Why choose us?
Leading SMT Supplier in China;In the LED industry market share is in an absolute leading position.
