LED Tube/Strip/Panel pick and place machine

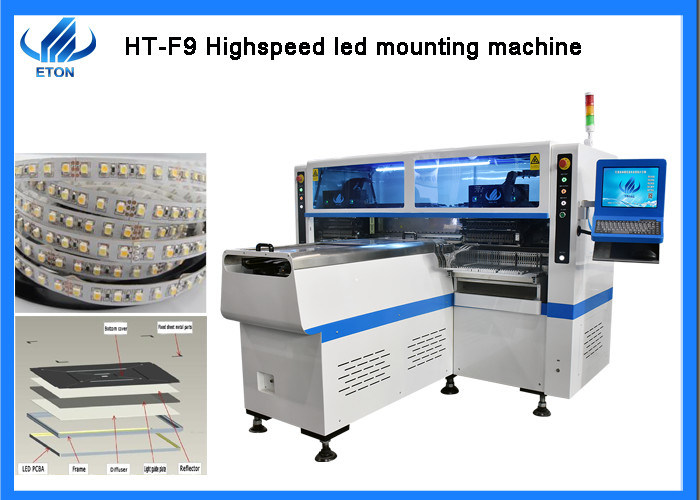

Large Image : LED Tube/Strip/Panel pick and place machine

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	CCC CE SIRA
Model Number:	HT-F9
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden case
Delivery Time:	30 days after pay
Payment Terms:	L/C, T/T
Supply Ability:	50 set/month

Contact Now

Detailed Product Description

Apply To:	LED Lighting，panel, Strip, Tube	Warranty:	One Year
Function:	Pick The Component And Mounting On Pcb	PCB:	1200*350 MM
Capacity:	200000 Cph	Office:	India, Delhi
Highlight:	LED Display Smt Mounter Machine , Bulb Light Smt Mounter Machine

LED Tube/Strip/Panel pick and place machine

HT-F9 High speed machine

HT-F9 is one of our new super high speed machine. Suitable for different kind of LED Lightings.

Module	HT-F9	Very multifunctional, suitable for many kind of products, such as the tube, panel, strip etc. High capacity, Theoretical capacity up to 200000 CPH High accuracy, Vision alignment flight identification, Mark correction Free install and training, easy to operate.
Speed	200000 cph
Max PCB size	1200*350 mm
Components	LED3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers
No. of camera	5 sets
No.of nozzles	68 pcs
No.of feeders	68 pcs
Mounting Precision	0.02mm

How fast is the SMT placement machine

It takes 3 seconds to manually mount a simple component. If it is a complex chip, such as QFP, PLCC chip, it is estimated to take half an hour. If BGA chip is placed, it is difficult to complete the placement by hand, but you know Can a high-speed placement machine mount several components in one second?

The high-speed placement machine can mount 5-15 simple components in one second, that is, the placement of complex chips, such as QFP and PLCC chips, takes only 2 seconds, and more than that, one SMT placement machine can be simultaneously Mounting different types of components can be used together with several placement machines, so the placement speed is faster.

The placement speed of the placement machine is so fast, but the placement accuracy is very high, and very few components will be mistaken. That is because the placement machine has a high-precision visual positioning system. For example, manual placement is one hundred Ten thousand components are usually misplaced by 10,000, but using SMT machines to mount one million components, generally only 60 are misplaced, and the process of high precision requires only 0.002 mistakes for one million components
