Product Details:
Payment & Shipping Terms:
|
| Pcb Size: | 50*50 Mm~400*350 Mm | PCB Thickness: | 0.1-6mm |
|---|---|---|---|
| PCB Clamping: | Electric Clamping | Mounting Mode: | Group Picking And Separate Placing\separate Picking And Separate Placing |
| Software: | Windows 7 | Display: | Touch Screen |
| No. Of Camera: | 2 | Power: | 380AC 50HZ |
| Power Consumption: | 6kw | Mounting Repeat Precision: | ±0.02mm Chip |
| Mounting Height: | <40mm(component Max Height 20mm) | Mounting Speed: | 45000 CPH(optimum) |
| No. Of Feeders: | 32PCS | No. Of Nozzles: | 10 Nozzles |
| High Light: | LED Display Smt Mounter Machine,Bulb Light Smt Mounter Machine |
||
What is that?
It is full automatic magnetic linear motor multifunctional smt pick and place machine. It is a vital part in SMT line.
A pick and place machine is a machine that attaches many components to a PCB board.It can more accurately place and reduce costs.It can be generally divided into a high-speed machine and a general-purpose machine.
As a basic product of our company, this multi-functional machine has been upgraded and upgraded many times. It is equipped with up to 10 nozzles. The placement speed reaches 30000~35000 CPH while maintaining a deviation of 0.02. It is a must for electronic assembly. Indispensable good helper
What is our advantage?
1.Mount small components: MIN.size:0402(length*width:1mm*0.5mm)

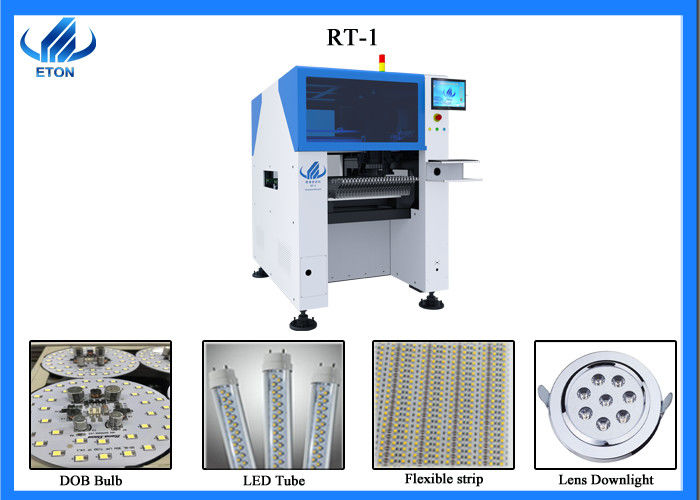

2.Wide range of use: It is suitable for LED,electric board, lens, linear bulb,householdAppliance,power driver,etc.
3.High precision: +-0.02mm. 2 sets of imported camera with its features of vision alignment flight identification and Mark correction to solve the problem of throwing materials of previous machines.
4.High technology:Automatic operation, save a lot of manpower and material resources. Exclusive Patent Technology: group to pick and group to mount. High-end magnetic linear motor +servo motor to drive X,Y Axis.
Application :
It is suitable for the production of circuit boards for a variety of products, such as mobile phones, computers and other electronic equipment, TV and air conditioners and other household appliances, light bulbs, LED and other lamps…

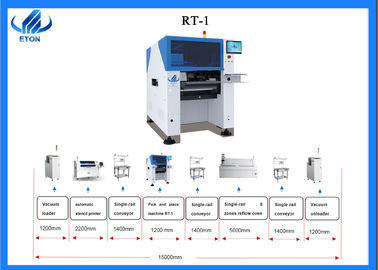

serve SMT line solution:
We have a professional R&D team, we can design the SMT line for you according to your needs, and the customer service 24 hours online to provide you with services without worrying about the time difference. If you have any questions, please call or log on our official website!
Sincere services:
Pre-sale service:
1. Provide machine related videos to let you know our machine directly.
2. We have a professional team of consultants who can answer any of your questions at any time.
3. If you have needs, you can visit the factory to learn about the machine. We will have professional technicians and international specialists to accompany you to ensure barrier-free English communication.
On-sale service:
As soon as your order is received, we will process it immediately and stock it up. After receiving the deposit, we will ship immediately.
After-sales service:
1. Provide manual / video for machine installation, adjustment, setting and maintenance.
2. If any problems occur and you cannot find a solution, please do not hesitate to contact us immediately, we will be at your service online at any time.
3. If you agree to pay the fee, our engineers and technicians can be dispatched to your country to provide services.
4. The machine is guaranteed for 12 months. During the warranty period, if there are any parts that are not artificially damaged. We will replace your new one for free. After the machine issues our bill of lading, the warranty begins.
5. We have an independent after-sales service team. In case of emergency, please call the salesperson or our after-sales manager. On-site maintenance or instructions can also be provided.
About us:
ETON ( Shenzhen ETON automation equipment CO.,LTD.)
1.We are committed to the R & D, production, sales and after-sales technical services of SMT high-speed patch.
2.We are 13 years old this year , still younger, but we have won many prizes: the 4th China · LED Pioneer Award, National High-tech Enterprise, Industry Special Contribution Award…
3.We are still committed to R & D and innovation to continuously improve the speed and quality of the pick and place machine.
4.We are very happy to have many friends from all directions, we are also willing to make progress together with friends from all over the world.
FAQS:
1.What is the power supply?
380AC,50HZ.
2. How long is the warranty? If any problems, how to solve it?
13 months from the date of shipment. If any quality problems within warranty, Suntech will responsible for it, and send new replacements.
3. Do you provide after-sales technical services?
Yes, we do. And we can send professional engineers to the working site for equipment installation, adjustment, and operation training.
4. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,
but customized machines should be more than 25 days.
5. Are you a trading company or a factory?
We have the factory and we are committed to the R & D, production, sales and after-sales technical services of SMT high-speed patch.
6. What is the payment method?
L/C or TT.
7. Do you have your own R&D team?
Yes, we can customize products as your requirements.
