0-1500mm/ Min PID 12KW SMT PCB Reflow Soldering Oven

0-1500mm/ Min PID 12KW SMT PCB Reflow Soldering Oven
0-1500mm/ Min PID 12KW SMT PCB Reflow Soldering Oven

Large Image :  0-1500mm/ Min PID 12KW SMT PCB Reflow Soldering Oven

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CE,SIRA,CCC,ISO
Model Number: ET-R5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: EXW USD 5300/sets
Packaging Details: Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per mouth
Detailed Product Description

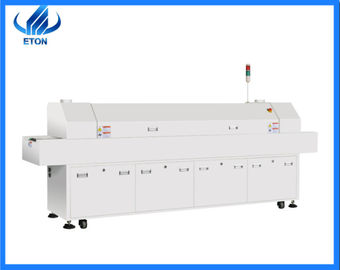

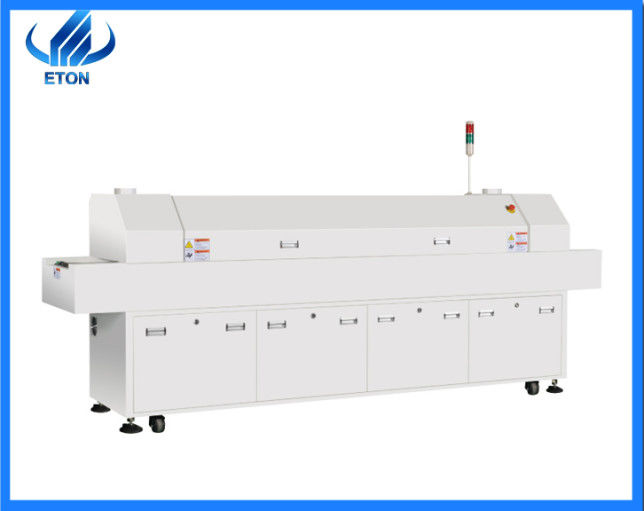

Name: Reflow Soldering Oven Heating Zone: Top 5 / Bottom 5
Cooling Zone: One Zone Conveyor Speed: 0-1500mm/min
Dimensions: L3000*W660*H1220mm Net Weight: 450kgs
High Light:

12KW PCB Reflow Soldering Oven

,

PID PCB Reflow Soldering Oven

Professional SMT full automatic PCB PCB Reflow soldering oven



Details

Reflow oven/soldering is one of the three main processes in SMT mount process. Reflow soldering is mainly used to weld the installed components of the circuit board, by heating the solder paste to melt the solder paste so that the patch components and the PCB pad fusion welding together, and then through the reflow of the cooling solder paste to cool the element and the pad curing together.



Principle

A. When the PCB enters the heating zone, the solvent and gas in the solder paste will evaporate. At the same time, the flux in the solder paste will moisten the pads, component ends and pins.

B. when CB enters the insulation zone, make PCB and components get fully preheated, in case PCB suddenly enters the welding high temperature zone and damages PCB and components.

C. When the PCB enters the welding zone, the temperature rises rapidly to make the solder paste melt, and the liquid solder wets, diffuses, diffuses or reflows the solder joints on the pads, component ends and pins of the PCB.

D. CB enters the cooling zone to solidify the solder joint;The reflow soldering is completed.



Specification





Model ET-R5
Heating Zone Top 5 / Bottom 5
Heating Passage 1800mm
Heating Style Hot air
Cooling zone one zone
PCB Max Width 300mm
Conveyor direction Left-Right(R-L optional)
Process height 880±20mm
Conveyor Style mesh belt
Conveyor speed 0-1500mm/min
Power 5 lines 3 phase AC 380V 50/60Hz
Startup consumption 12KW
Steady Consumption 5kw
Ramp up time aprrox 15mins
Temperature set-point Room temerature to 400°C
Temperature control PID Tenmperatem closed loop control
Temperature accuracy ±1°C
Deviation temperature on pcb ±2°C
Abnormal alarm equipped temperature abnormal alarm device
Dimensions L3000*W660*H1220mm
Net Weight 450kgs













Logistics and delivery

Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.

Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.



Packaging & Delivery

Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.

Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.



FAQ

1.Choose which mode of transportation?

Our modes of transportation are flexible, including water, land and air transportation.

2.Do you have oversea after sale service?

We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.

3.What is the delivery date?

We will deliver the goods after 30 days' deposit.

4. Is this machine easy to operate?

Of course, the operating system supports Chinese-English interface display, easy to understand and operate.

5.Why choose us?

Leading SMT Supplier in China;In the LED industry market share is in an absolute leading position.
