| Name: | SMT Mounting Machine | PCB Thickness: | 0.1~6 Mm |
|---|---|---|---|
| Feeders: | 80 PCS | Heads: | 40 PCS |
| PCB Size: | 500*310mm | Total Weight: | 4500kg |
| Capacity: | 120000~140000CPH | Camera: | 8 Sets Of Imported Camera |
| High Light: | 16KW SMT Mounting Machine,140000CPH SMT Mounting Machine |
||

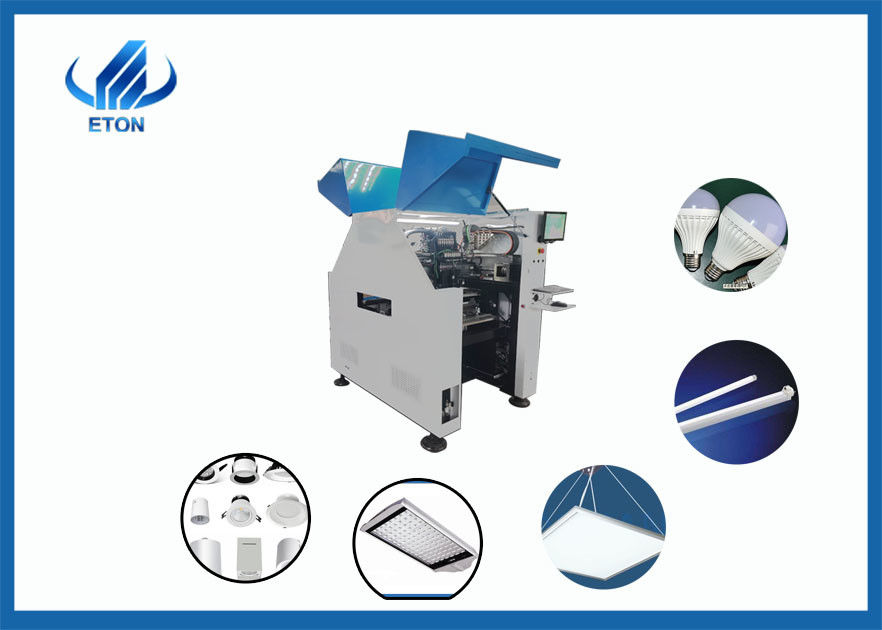

High-precision High Speed SMT mounting Machine for all light led making machine
Features
Four-module magnetic linear motor multifunctional pick and place machine
Mounting linear components:LED,capacitors,resistors,IC,shaped components,etc.
technical parameter
| RT-4 | ||
| PCB | PCB length width | Max500*310mm min:50*50mm |
| PCB thickness | 0.1~6mm | |
| PCB clamping | Electric clamping | |
| Mounting mode |
ØGroup to pick and separate to place ØSeparate to pick and separate to place |
|
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
8 sets of imported camera Vision alignment ,mark correction |
| Mounting precision | 0.04mm(repeat precision) | |
| Mounting height | <7.5mm | |
| Mounting speed | 120000~140000CPH | |
| Components space | 0.2mm | |
| Power | 380AC 50HZ | |
| Power consumption | 16KW | |
| Gas consumption | 0.4~0.6mpa 600N/min | |
| Transmission speed | >1500mm/sec | |
| Transmission direction | Single left to right or right to left | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor and magnetic linear motor | |
| Feeding system | No.of feeders station | 80 PCS |
| No.of nozzles | 40 PCS | |
| Feeding way | Electric feeder with double motor | |
Exclusive patented technology:
Electronic feeder feeding system
Vision alignment flight identification,mark correction
Auto-optimization after coordinates generated ,etc.
Application
1.electric and electronic products
In our computer production, the components on the main board of each computer can use the automatic placement machine to mount, which can not only greatly improve the mounting efficiency but also save labor costs.
2.LED products
Now the LED display LED lights and other products, Yitong placement machine can be mounted. LED mounting range is relatively wide, all kinds of LED components, resistors, capacitors, special-shaped components can be mounted. At the same time, we can recommend different models with different speeds according to customers' production requirements.
Now we use a lot of home appliances can be installed through the placement machine, and can improve production efficiency.
FAQ
1.What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
2.What is the maximum height of components that can be mounted on a machine?
The height of the mounting component can reach 36 mm, and the minimum mounting component can be 0402.
3.Is this machine difficult to operate?
No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
4.What kind of driving mode does the XYZ axis adopt?
X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high accuracy.
5.What type of transportation can be used?
Our modes of transportation are flexible, and we can choose both sea, land and air transportation.
6.Is your software interface in English?
English interface and Chinese interface are both available.
