Product Details:
Payment & Shipping Terms:
|
| Pcb Size: | 100*100mm~1200*300mm | Pcb Clamp;ing: | Adjustable Pressure Pneumatic |
|---|---|---|---|
| System: | Windows7 | Display: | Touch Screen Monitor |
| Input Device: | Keyboard,mouse | No. Of Camera: | 4 |
| POWER: | 380AC 50HZ | Power Consmption: | 8kw |
| Mounting Mode: | Group Take Cent Stick, Cent Take Cent Stick. | Components Space: | 0.2mm |
| Feeders Stations: | 40PCS | Nozzles: | 16PCS |
| Mounting Speed: | 80000CPH | Mounting Height: | 40mm |
| High Light: | 8kw SMT Pick And Place Machine,80000CPH SMT Pick And Place Machine |
||
Are you troubled by the efficiency of assembly of electronic product components?
Do you want to assemble an SMT line without clue?
Do you not know how to choose a pick and place machine?
Don’t worry! Here you can find more and better!

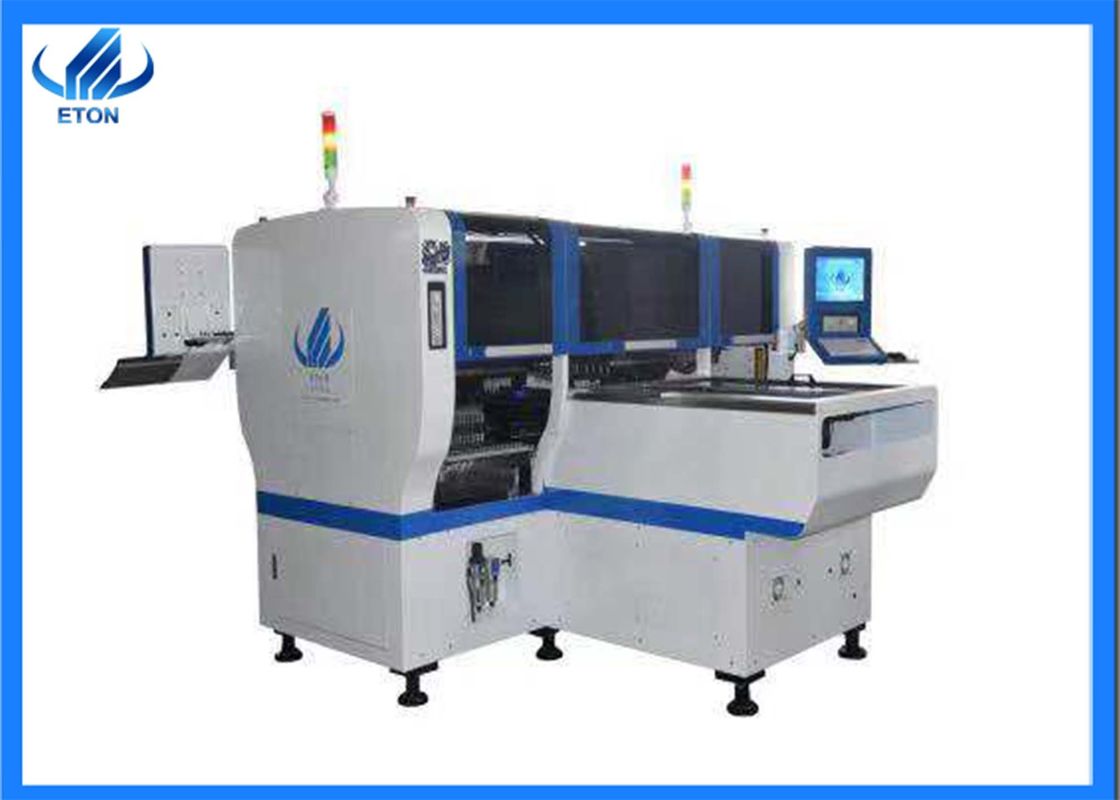

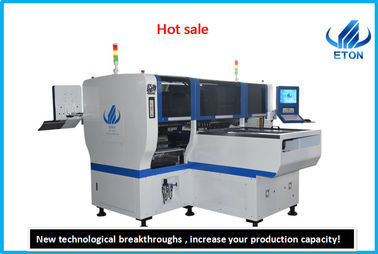

Brief technical parameters:
| Birth place | China |
| Model | HT-E8D |
| Dimension | 3150*2250*1650mm |
| PCB |
Max:1200*300mm Min:100*100mm |
| PCB thickness | 0.5—5mm |
| Mounting mode |
Group picking and separate placing Separate picking and separate placing |
| Mounting precision | +-0.02mm |
| Mounting height | <36mm |
| Mounting speed | 8000CPH |
| Power consumption | 8KW |
| No of feeders station | 48 |
| No of nozzles | 20 |
| XYZ axis drive way | High-end magnetic linear motor+servo motor |
With the development of technology, the electronic product industry is booming and the LED market has a good prospect. And these products are getting smaller and lighter. It is very important to build a SMT line, and the pick and place machine directly affects the core capabilities of the SMT production line.
mount various types of products: capacitors, resistors, lenses, lamp beads, IC, heterosexual components, etc.
More details:
The cameras are all imported cameras, and up to 16 servo motors are used to ensure accuracy and speed.
sincere services:
Pre-sales Services:
1.Many professional packing videos, give you direct feeling about our machine.
2.Free packing solution from our chief engineer.
Medium-sales Services:
We have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
After-sale Services:
1.Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Our engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have one year guranty for machine. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.5. We have an independent team for after-sale service. Any emergency please call the saleman or our after-sale's manager. On-site repair or instructions are also available.
Who are we?
We are ETON (SHEZHEN ETON AUTOMATION EQUIPMENT CO.,LED.)
We have our own industrial park and R&D team, and set up subsidiaries in Hong Kong, Jiangxi and Shenzhen.
Goal: Create famous brand and build international Chinese enterprise
Core technology: high efficiency, high quality, high stability
Multiple patented technologies: 9 invention patents, 112 practical patents, 12 software copyrights
