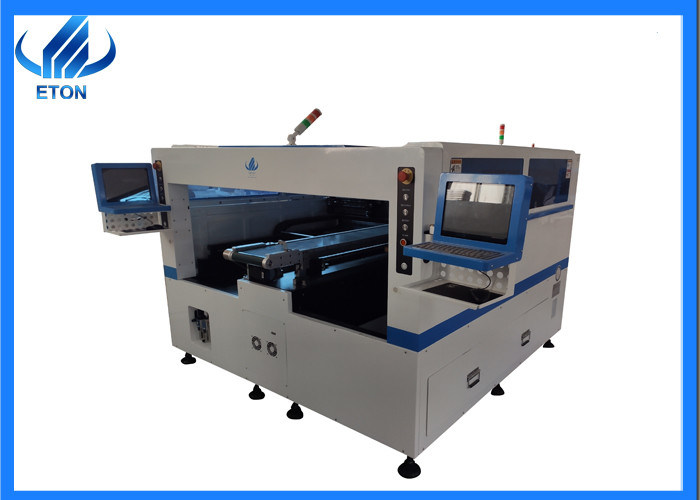

High Quality Led Light Assembly Line SMT Mounting Machine pick and place machine
Features
Producing with 4 types of materials with high capacity,available for 5m,50m or any length of flexible strip and roll to roll.
Calibration automatically,high precision,available for RGB.
Exclusive patent technology :group to pick and group to mount.
Dual arm four module,17 nozzles for each mounting part ,part A or part B can be mounted separatly or synchronously.
Exclusive patent technology :group to pick and group to mount.
Technical parameter
| HT-T9 |
| PCB |
PCB length width |
250mm*any length |
| PCB thickness |
0.5~1.5mm |
| PCB clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group to take and group to mount |
| O.S. |
system |
Windows 7 |
| software |
R&D independently |
| display |
LED monitor |
| Input device |
Keyboard , mouse |
|
Vision
system
|
No.of camera |
5 sets of imported camera
Vision alignment,mark correction
|
| Mounting precision |
0.02mm(repeat precision) |
| Mounting height |
<15mm |
| Mounting speed |
100000~150000CPH |
| Components |
LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers. |
| Components space |
0.2mm |
| No.of feeders station |
64PCS |
| No.of nozzles |
64PCS |
| Power |
380AC 50HZ |
| Power consumption |
6KW |
| Conveyor transmission |
Belt drive |
| Transmission speed |
>500mm/sec |
| Transmission direction |
Single (left to right or right or left) |
| Transmission mode |
Auto online drive |
| Position mode |
Optical |
| Air pressure |
>5.0kg /cm² |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 1set |
Independent research and development by ETON |
| X,Y,X axis drive way |
Servo motor control for X,Y,Z axis |
| Feeding way |
Electric feeder with double motor |
Product presentation
1,Soft lamp tape special high-speed mounter
2,High Precision: Five sets of imported cameras are equipped with visual alignment, mark correction technology and optical positioning technology to accurately identify the position of PCB board and quickly and accurately mount components.
3,High Speed: Applying the exclusive patented technology of group-based and group-based pasting, the pasting speed is 200000 CPH, 68 feeders station and 68 nozzles. It can automatically transmit on-line. And It can produce 2-4 kinds of materials at the same time, which greatly improves the efficiency.
4,Strong durability: The quality of hardware equipment is guaranteed by certificate, the quality of dual motor electronic flying and guide rail and screw is guaranteed, which can support 24-hour operation.
5,Simple operation: Windows 7 system can be used to switch the Chinese-English interface, usually 3 to 5 days training of operation is enough.
6,Components:LED 3014/3020/3528/5050 and resistors,capacitors,bridge rectifiers.
Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
