Name: | Pick And Place Machine | Feeders: | 68 PCS |
---|---|---|---|
Nozzles: | 68 PCS | Speed: | 200000CPH |
PCB Size: | 250mm*any Length | Warranty: | 1 Year |
High Light: | 6KW SMT Mounting Machine,200000CPH SMT Mounting Machine |
Led Light Assembly Line SMT Mounting Machine for 15m,25m,50m flexible light strip
1.High Precision: Equipped with 5pcs of cameras: 1pc of Mark recognition camera, 1pc of 500 million pixels high precision recognition camera, and 4pcs of synchronous high-speed recognition cameras, could effectively mount 0402-5050 components, LED beads,chip etc.
2. Fast Speed: the max. mounting speed:200000CPH.
3. Full Automation: With rail guide, could be connected to other machines to achieve inline operation, thus greatly reduce labor costs, only need one person to complete the work.
4. Strong Stability: Magnetic linear motor, Servo Motor and Drive, high-precision grinding ball screw rod + heavy-duty linear guide, Vacuum generator,R&D high-precise nozzles, automatic feeding integrated system and high-configuration High precision, strong stability, promise 24-hour mounting stably.
Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
Technical parameter
HT-T9 | ||
PCB | PCB length width | 250mm*any length |
PCB thickness | 0.5~1.5mm | |
PCB clamping | Adjustable pressure pneumatic | |
Mounting mode | Group to take and group to mount | |
O.S. | system | Windows 7 |
software | R&D independently | |
display | LED monitor | |
Input device | Keyboard , mouse | |
Vision system |
No.of camera |
5 sets of imported camera Vision alignment,mark correction |
Mounting precision | 0.02mm(repeat precision) | |
Mounting height | <15mm | |
Mounting speed | 100000~150000CPH | |
Components | LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers. | |
Components space | 0.2mm | |
No.of feeders station | 64PCS | |
No.of nozzles | 64PCS | |
Power | 380AC 50HZ | |
Power consumption | 6KW | |
Conveyor transmission | Belt drive | |
Transmission speed | >500mm/sec | |
Transmission direction | Single (left to right or right or left) | |
Transmission mode | Auto online drive | |
Position mode | Optical | |
Air pressure | >5.0kg /cm² | |
Electrical control | Independent research and development by ETON | |
Motion control card module 1set | Independent research and development by ETON | |
X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
Feeding way | Electric feeder with double motor |

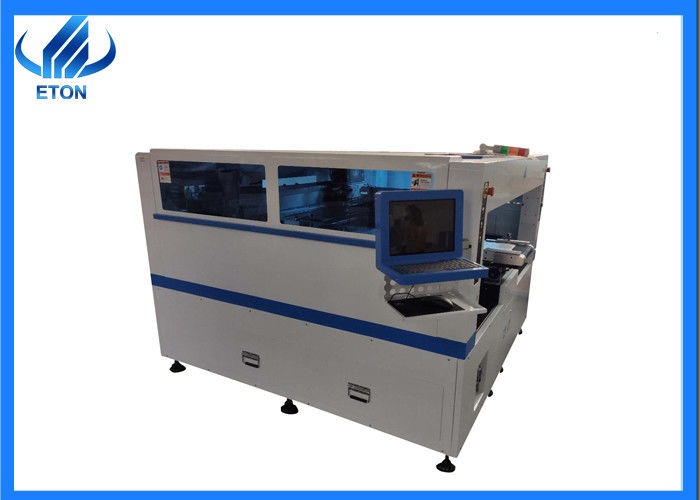

T9 placement machine is specially designed for infinite long flexible light belt, which can realize high speed placement and improve the accuracy of placement. The machine parts such as camera, motor and guide rail adopt foreign advanced technology, so as to reduce the failure and maintenance cost during production, and the machine life is at least 10 years.
Main Features
1. Control Syetem: Ball screw,magnetic and servo motors
2. Vision system: 5 sets of imported camera.vision alignment,Mark correction.
3. 68 placement heads: can pick up and calibrate components at one time.
4. 68 feeders: Sufficient feeding platform improves loading efficiency.
5. Built-in computer mainboard: the monitor, key board and mouse will ship with machine.
6. Video tutorials: make you operate machine easily
7. Free to upgrade software: and provide technology support for life.
