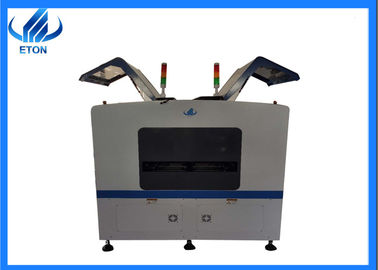

380AC HT-E5D 80000CPH 8KW SMT Mounting Machine

380AC HT-E5D 80000CPH 8KW SMT Mounting Machine
380AC HT-E5D 80000CPH 8KW SMT Mounting Machine 380AC HT-E5D 80000CPH 8KW SMT Mounting Machine

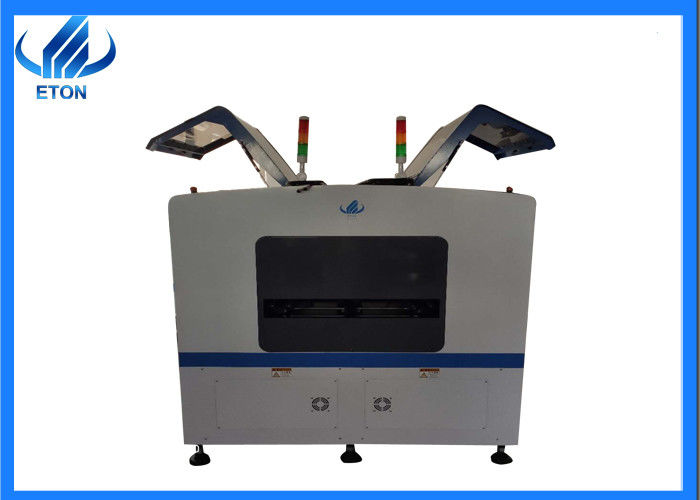

Large Image :  380AC HT-E5D 80000CPH 8KW SMT Mounting Machine

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CI.CCC.SIRA
Model Number: HT-E5D
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: 50000-80000 USD
Packaging Details: vacuum wooden package
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 50 Units per month
Contact Now
Detailed Product Description
Warranty: 12 Months Applicable Components: 0402,0805,0603,1206,SOP
Application: SMD Production Line,SMT Mounting Shooter Machine Power Supply: 380AC 50HZ
Condition: Brand-new Pcb Thickness: 0.5-5 Mm
Highlight:

80000CPH SMT Mounting Machine

,

HT-E5D SMT Mounting Machine

Automatic High Precise High Efficiency SMT Pick and Place Machine





Technical parameter

HT-E5D
Length*Width*Height 1650*2000*1550mm
Total Weight 2800KG
PCB Length Width Max:500*300mm Min:100*100mm
PCB Thickness 0.5~3mm
PCB Clamping Electric clamping+Adjustable pressure pneumatic
No.of Camera 4 sets of imported camera
Mounting Height <36mm(Automatic Changing)
Mounting Speed 80000CPH

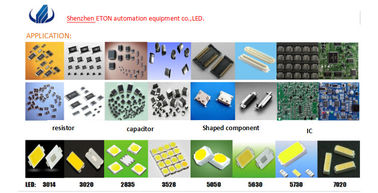

Components LED,resistor,capacitors,shaped components,etc.
No.of Feeders Station 60PCS
No.of nozzles 16PCS
Power 380AC 50Hz
Power Consumption 8KW
X,Y,Z Axis Drive way High-end magnetic linear motor+servo motor
Display Touch screen monitor






Exclusive patented technology

1.Electric feeder feeding system

2.Vision alignment flight identification, Mark correction

3.Non-stop material re-loading function

4.Auto-optimization after coordinates generated,etc



380AC HT-E5D 80000CPH 8KW SMT Mounting Machine 0



Q&A

What can you provide?

We provide full SMT solution for you

380AC HT-E5D 80000CPH 8KW SMT Mounting Machine 1

How is the warranty?

We provide 1 standard wanranty, during warranty any non-intentional damage will be repaired free of charge.

What’s your package?

Our packing method is vacuum wooden case packing. Supporting sea, air and land transportation.
