Product Details:
Payment & Shipping Terms:
|
| Name: | Smt Machine/pick And Place Machine/mounter/led Lighting Machine/chip Mounter | PCB Size: | 400*350 Mm |
|---|---|---|---|
| Speed: | 35000 Cph | Mini Size: | 0402 |
| Apply To: | SMT Line | No.of Nozzles: | 10 Pcs |
DOB linear bulb solar panel down-light smt pick and place machine
Apply to

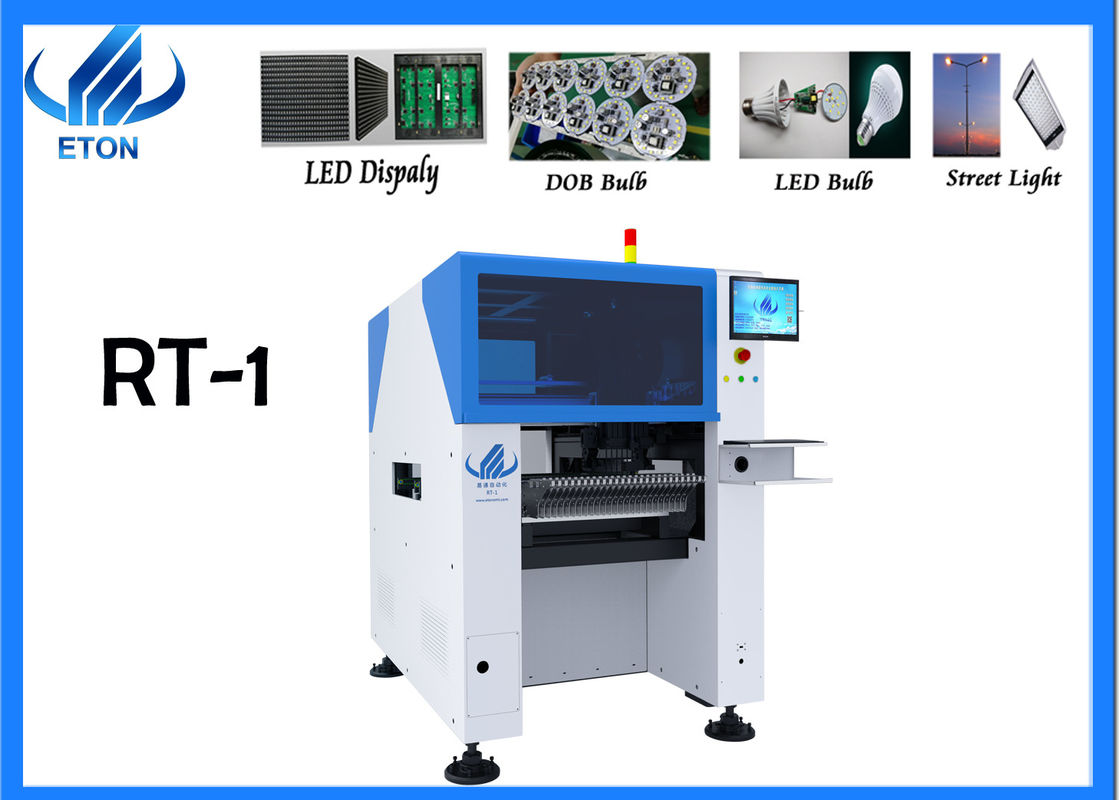

ETON Pick and place machine RT-1 is the multifunctional module.
It is very suitable for electrical board and led lightings, like the dob bulb, panel, downlight, display, street light, power driver, etc.
Features
Technical parameter
1.Dimension
| Length | 1200 mm |
| Width | 1930 mm |
| Height | 1750 mm |
| Total weight | 2200 kg |
2.O.S
| System | Windows 7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
3.PCB
| Pcb Length Width | Max:400*350 mm |
| Pcb thickness | 0.1-6 mm |
| Pcb clamping | Electric clamping |
| Mounting Mode | Group picking and separate placing, separate picking and separate placing |
4.Capacity
| No.of feeders station | 32 pcs |
| No.of nozzles | 10 pcs |
| Mounting speed | 30000-35000 cph |
Company information
It has been almost ten years since ETON was established. During these ten years, our machines have been continuously updated, and technical parameters have been breakthrough developments. The speed, accuracy, frame, and even refueling methods of the machine have been improved. . At present, ETON occupies a large LED market in the domestic market, and we are constantly seeking new growth points in foreign markets. In the near future, our machines will adapt to more fields and serve more electronic suppliers
Show power
We have more than 8 kinds of modules, each modules have different speed and suitable for different components. From 35000 cph to 200000cph. We can say that our machine is fastest pick and place machine in the world.
Packing and shipping
Usually, the delivery time is around 30 working days after ordered.
We using wooden package.
Service
The most important services are support free install and training. One year warranty, during warranty, any parts need to be repaired and replaced will be free.
Also we support online support for all over clients and will visit clients factory with regularly.
FAQ
A: Our machine suitable for mini size is 0402.
A: Yes, Of course. You can buy more warranty.
A: Yes, Software is R&D by ETON. We support whole life free updates.
