Product Details:
Payment & Shipping Terms:
|
| Pcb Size: | 50*50 Mm~400*350 Mm | PCB Thickness: | 0.1-6mm |
|---|---|---|---|
| Mounting Mode: | Group Picking And Separate Placing\separate Picking And Separate Placing | Software: | Windows 7 |
| Display: | Touch Screen Monitor | Power: | AC 380V |
| Power Consumption: | 4kw | Mounting Repeat Precision: | ±0.04mm Chip |
| Mounting Height: | <=22mm(component Max Height 20mm) | Mounting Speed: | 30000-35000 CPH |
| No. Of Feeders: | 32PCS | No. Of Nozzles: | 10 Nozzles |
| XYZ Axis Drive Way: | Magnetic Linear Motor | Position Mode: | Optical |
| High Light: | 10 Nozzles Pick And Place Machine,4kw Pick And Place Machine |
||

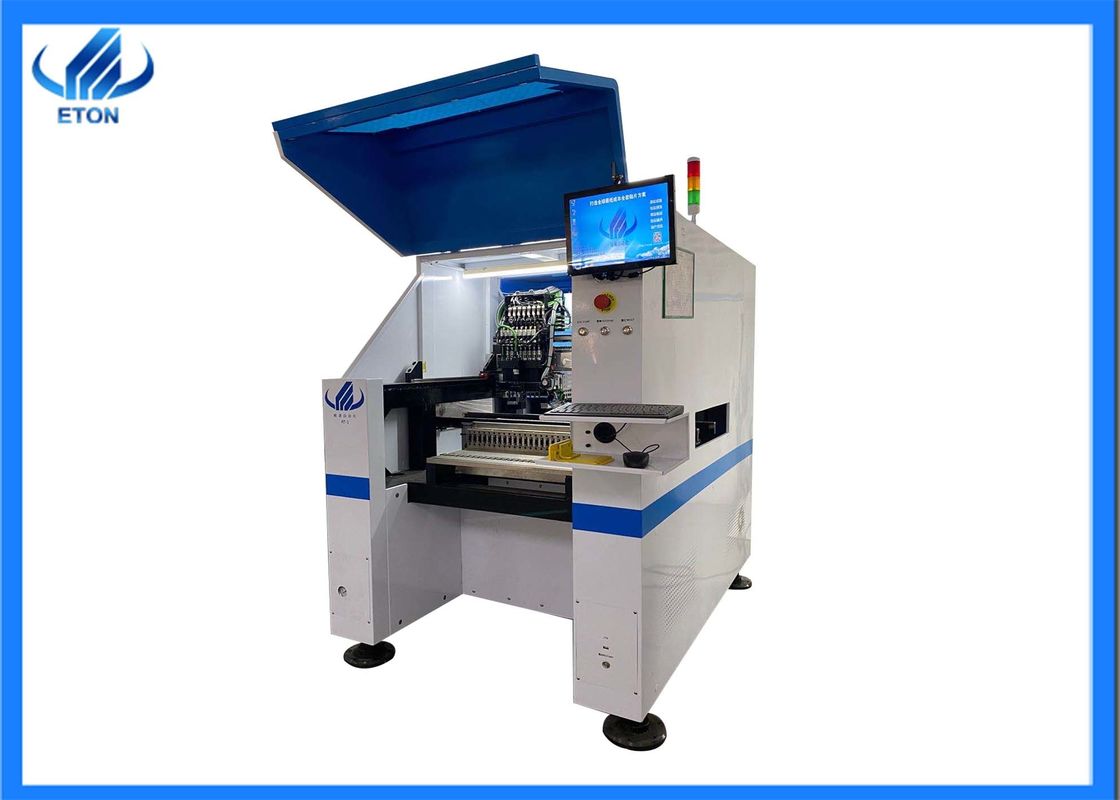

ETON multifunctional pick and place machine
Quick Details:
| Brand name | ETON | Feeders station | 32 |
| Model number | RT-1 | No of Nozzles | 10 |
| Dimension | 1200*1930*1750mm | Nozzles | 8MM,12MM,16MM,24MM |
| Weight | 2200KG | Mounting height | <=22mm |
| PCB size | 50*50---400*350 | No of camera | 2 sets of imported camera |
| PCB thickness | 0.1---6mm | Certification | CE,SIRA,CCC |
| Mounting speed | 30000--35000 CPH | XYZ axis drive way | Servo motor |
| Mounting mode |
Group picking and separate placing, Separate picking and separate placing |
Feeding way | Electric feeder with double motor |
our advantage:
1.Mount small components: MIN.size:0402(length*width:1mm*0.5mm)
2.Wide range of use: It is suitable for LED,electric board, lens, linear bulb,householdAppliance,power driver,etc.
3.High precision: +-0.02mm. 2 sets of imported camera with its features of vision alignment flight identification and Mark correction to solve the problem of throwing materials of previous machines.
4.High technology:Automatic operation, save a lot of manpower and material resources. Exclusive Patent Technology: group to pick and group to mount. High-end magnetic linear motor +servo motor to drive X,Y Axis.

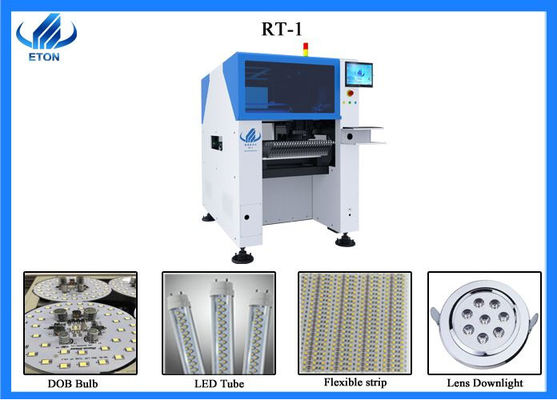

Wide application:
Applicable Industries: LED, linear bulb, electric board, lens, power driver, household appliance,etc.
Components: LED, capacitors, resistor, DOB, IC, shaped components
Product details:
10 heads, 2 imported camera with the feature of vision alignment and mark correction, 32 feeder station,Magnetic suspension rail reduces friction...
What is the position in the SMT line ?
From the below picture, we can see that , the pick and place machine is in the middle of the line.
The important position it occupied is also the most critical part. Without it, the entire production line has no meaning.
So, it is vital to choose a good pick and place machine.
We have a professional R&D team, we can design the SMT line for you according to your needs, and the customer service 24 hours online to provide you with services without worrying about the time difference. If you have any questions, please call or log on our official website!
Sincere Service:
1. Serve you wholeheartedly 24 hours a day.
2. You can visit the factory to understand the machine intuitively
3. There are offices in India, Turkey and other countries, which can provide door-to-door service.
4. Have a professional R&D team, professional technicians to answer any questions for you.
5. You can customize a suitable machine, no matter what the product is.
6. One-stop service, from pre-sales to after-sales installation, there are dedicated personnel to follow up.
Certificate:
FAQS:
1.What is the power supply?
380AC,50HZ.
2. How long is the warranty? If any problems, how to solve it?
13 months from the date of shipment. If any quality problems within warranty, Suntech will responsible for it, and send new replacements.
3. Do you provide after-sales technical services?
Yes, we do. And we can send professional engineers to the working site for equipment installation, adjustment, and operation training.
4. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,
but customized machines should be more than 25 days.
5. Are you a trading company or a factory?
We have the factory and we are committed to the R & D, production, sales and after-sales technical services of SMT high-speed patch.
6. What is the payment method?
L/C or TT.
7. Do you have your own R&D team?
Yes, we can customize products as your requirements.
