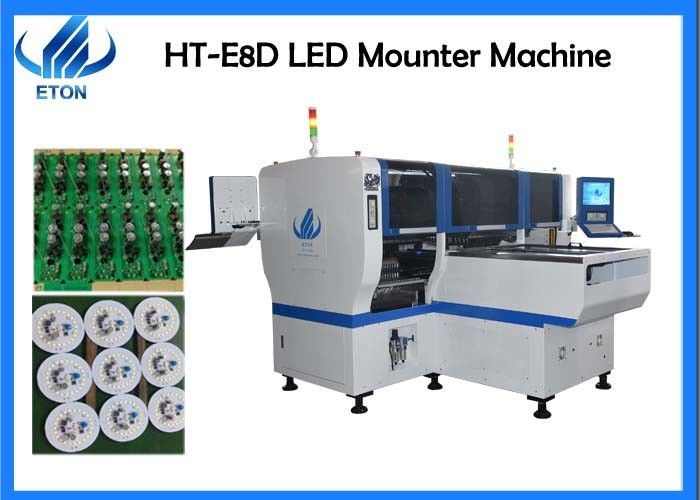

Street Lighting 80000cph HT-E8D SMT Mounting Machine

large.img.alt
large.img.alt

Large Image :  Street Lighting 80000cph HT-E8D SMT Mounting Machine

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CCC
Model Number: HT-E8D

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 4 weeks after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Detailed Product Description
Max Pcb: 1200*300 Mm Capacity: 80000 Cph
Name: Pick And Place Machine Apply To: Smt Production Line
No.of Feeder Station: 48 Pcs No.of Nozzels: 24 Pcs
PCB: Max:1200*300mm Min:100*100mm Software: Touch Screen Monitor
High Light:

80000cph SMT Mounting Machine

,

Street Lighting SMT Mounting Machine

Factory prize Electronic products machinery SMT pick and place machine



Technology leads the future!!!

New technological breakthroughs to increase your productivity.



ETON new types of HT-E8D



Wide application:



capacitors, resistors, lenses, lamp beads, IC, heterosexual components, etc.(min size:0402)



Technical parameter:



Birth place China
Model HT-E8D
Mounting precision +-0.04 mm
Mounting height ≤25 mm
Mounting speed 80000 CPH
No.of feeder station 48 pcs
No.of nozzles 24 pcs
Feeding way Electric feeder with double motor
Software Touch screen monitor
PCB thickness 0.5—5mm
Mounting mode

Group picking and separate placing

Separate picking and separate placing

PCB

Max:1200*300mm

Min:100*100mm





Product details:



1. Dual modules, two heads are mounted at the same time, faster

2. 4 sets of imported cameras, automatically identify whether there are deviations in the components, and then automatically adjust

3. The width of the motor can be adjusted to carry PCB boards of different sizes



What is the position in the SMT line ?



From the below picture, we can see that , the pick and place machine is in the middle of the line.

The important position it occupied is also the most critical part. Without it, the entire production line has no meaning.

So, it is vital to choose a good pick and place machine.



Sincere Service:



1. Serve you wholeheartedly 24 hours a day.

2. You can visit the factory to understand the machine intuitively

3. There are offices in India, Turkey and other countries, which can provide door-to-door service.

4. Have a professional R&D team, professional technicians to answer any questions for you.

5. You can customize a suitable machine, no matter what the product is.

6. One-stop service, from pre-sales to after-sales installation, there are dedicated personnel to follow up.



Who am I?



I am your dear friend. ETON

( Shenzhen ETON automation equipment CO.,LTD.)

  • We are committed to the R & D, production, sales and after-sales technical services of SMT high-speed patch.
  • We are 13 years old this year , still younger, but we have won many prizes: the 4th China · LED Pioneer Award, National High-tech Enterprise, Industry Special Contribution Award…
  • We are still committed to R & D and innovation to continuously improve the speed and quality of the placement machine.
  • We are very happy to have many friends from all directions, we are also willing to make progress together with friends from all over the world.
