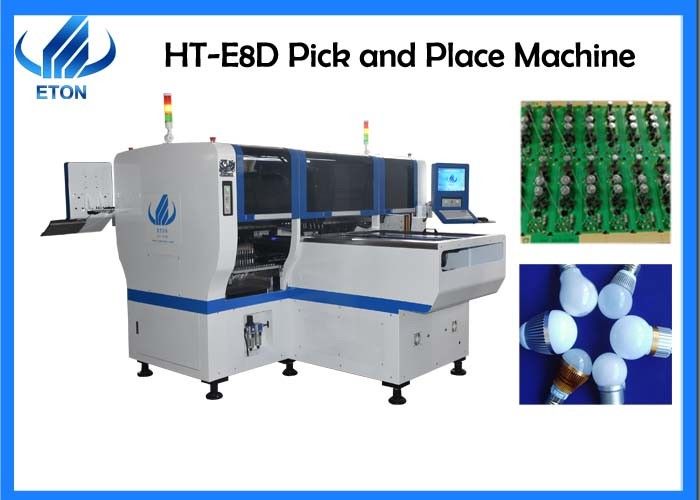

Perfect quality Low cost Advanced PCB pick and place machine
Three advantages, gravity strikes
1.Magnetic linear Design
High speed, high precision
2.Fully-upgrade mounting head
Min size:0402, Max height:36mm
3.Mounting speed more faster
90000CPH
Multiple sets of stitching speed faster
One machine with multiple functions
Applicable Industries: LED, linear bulb, electric board, lens, power driver, household appliance,etc.
Components: LED, capacitors, resistor, DOB, IC, shaped components
Mounting mode
support group picking and separate placing or separate picking and separate placing.
Quick Details
| Brand name |
ETON |
Feeders station |
48 |
| Model number |
HT-E8D |
No of Nozzles |
24 |
| Dimension |
3150*2900*1900mm |
Nozzles |
8MM,12MM,16MM,24MM |
| Weight |
2500KG |
Mounting height |
<15mm |
| PCB size |
Max:1200*300mm
Min:100*100mm
|
No of camera |
4 sets of imported camera |
| PCB thickness |
0.5—5mm |
Certification |
CE,SIRA,CCC |
| Mounting speed |
8KW |
XYZ axis drive way |
Servo motor |
Product details
1.) 4 imported camera with the feature of vision alignment and mark correction,
2.) 24 heads, place more products in one go
3.) 48 feeder station,Magnetic suspension rail reduces friction...
Certificate
We are high-tech enterprise, with CCC, SIRA, CE.
Honored Clients
We have exported machine to India, Egypt, Korea, Turkey, Brazil, Germany, Tunisia, Thailand, Vietnam more than 20 countries. And our client have FSL, ETI, KONKA, OPPLE, MLS, RK, SURRYA, SKYQUAD, etc.
Sincere Service
Pre-sales Services:
1.Serve you wholeheartedly 24 hours a day.
2..visit the factory to understand the machine intuitively
3.You can customize a suitable machine
After-sale Services:
1.There are offices in India, Turkey and other countries, which can provide door-to-door service.
2. Global online services
3. Dedicated person to track the cargo situation
4. One year warranty service
FAQS:
1.What is the warranty period of the machine?
All our machines have a 1-year warranty, starting from delivery.
2.Do you provide after-sales technical services?
Yes, we do. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
3.Are you a trading company or a factory?
We have the factory and we are committed to the R & D, production, sales and after-sales technical services of SMT high-speed patch.
4.What is the payment method?
L/C or TT.
5. Do you have your own R&D team?
Yes, we can customize products as your requirements.
Add: If you have any other questions, please do not hesitate to contact us, there is our contact information at the end, we will serve you 24 hours.
Who am I?
I am your dear friend. ETON
( Shenzhen ETON automation equipment CO.,LTD.)
- We are committed to the R & D, production, sales and after-sales technical services of SMT high-speed patch.
- We are 13 years old this year , still younger, but we have won many prizes: the 4th China · LED Pioneer Award, National High-tech Enterprise, Industry Special Contribution Award…
- We are still committed to R & D and innovation to continuously improve the speed and quality of the placement machine.
- We are very happy to have many friends from all directions, we are also willing to make progress together with friends from all over the world.
