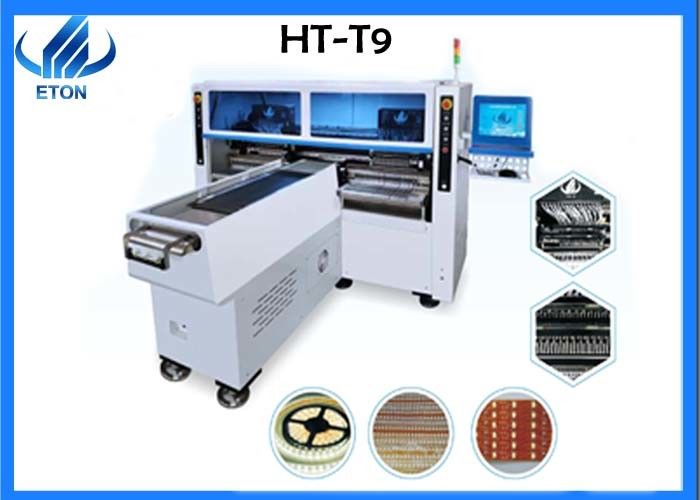

HT-T9 688 Nozzles Flexible Strip Smt Pick And Place Equipment

large.img.alt
small.img.alt

Large Image :  HT-T9 688 Nozzles Flexible Strip Smt Pick And Place Equipment

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CE,CCC,SIRA
Model Number: HT-T9

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: EXW USD 95000/sets
Packaging Details: Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per mouth
Detailed Product Description
Name: Pick And Place Machine Components: LED 3014/3020/3528/5050 Resistor Capacitors
Feeders: 64 PCS Nozzles: 64 PCS
Speed: 200000CPH PCB Size: 250mm*any Length
High Light:

688 Nozzles Smt Pick And Place Equipment

,

HT-T9 Smt Pick And Place Equipment

High-speed mounter unlimited length flexible strip SMT pick and place machine



IPC9850 capacity: 200000CPH

Patent number: ZL201120237740.9/ZL201120334606.0/ZL201220178869.1/ZL201220415505.0/ZL 201220415044.7/ZL 201220415356.8/ZL 201220415061.0



Advantage:

  • High precision. Solved the problem of throwing materials of previous machines. 5 sets of imported camera with its features of vision alignment and Mark correction to ensure.



  • High capacity. 200000CPH, to solve your troubles of low production efficiency. With its Dual-arm. Four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separatly or synchronously.



  • High technology. Automatic operation, save a lot of manpower and material resources. Exclusive Patent Technology: group to pick and group to mount. High-end magnetic linear motor +servo motor to drive X,Y Axis.



  • Technical Support. It doesn't matter if you don't know the technology, we have a professional team and professional engineers that can provide on-site services.





Attached its technical parameter:



Birth place China
Model HT-T9
Dimension 3100*2300*1550
PCB length width

250*any length.



PCB thickness 0.5—1.5mm
Mounting mode Group to pick and group to mount
No of camera

5 sets of imported camera

Vision alignment, Mark correction

Mounting precision +-0.02mm
Mounting height <=5 mm
Mounting speed 200000 CPH
Components LED 3014,3020,3528,5050 and resistor, capacitor, bridge rectifiers
Component space 0.2mm
No. of feeder station 68
No. of nozzles 68
X,Y,Z Axis drive way High-end magnetic linear motor +servo motor
Feeding way Electric feeder with double motor





What can this big blue robort do ?

It is suitable for LED 3014,3020,3528,5050 and resistor, capacitor, bridge rectifiers

Take a look at these photos.

HT-T9 688 Nozzles Flexible Strip Smt Pick And Place Equipment 0

What is the position and role of this machine in the production line ?

From the picture, we can see that , the pick and place machine is in the middle of the line.

The important position it occupied is also the most critical part. Without it, the entire production line has no meaning.

So, it is vital to choose a good pick and place machine.

HT-T9 688 Nozzles Flexible Strip Smt Pick And Place Equipment 1

Wooden vacuum packaging:



HT-T9 688 Nozzles Flexible Strip Smt Pick And Place Equipment 2

Our close-up style:

HT-T9 688 Nozzles Flexible Strip Smt Pick And Place Equipment 3

Customers in more than twenty countries:

We have been believed and liked by friends from all over the world, and they are also our honorable clients. We look forward to making more friends and looking forward to your contact.

HT-T9 688 Nozzles Flexible Strip Smt Pick And Place Equipment 4
