ET-1200 35000CPH Panel Light Chip Shooter SMT Mounting Machine

large.img.alt
small.img.alt

Large Image :  ET-1200 35000CPH Panel Light Chip Shooter SMT Mounting Machine

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CE,CCC,SIRA
Model Number: ET-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: EXW USD 78000/sets
Packaging Details: Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per mouth
Detailed Product Description
Name: Pick And Place Machine Feeders: 40 PCS
Nozzles: 10 PCS Speed: 30000-35000 CPH
PCB Size: Max:1200*550mm Min:100*100mm Power Consumption: 5 KW
High Light:

35000CPH SMT Mounting Machine

,

ET-1200 SMT Mounting Machine





full automatic panel light chip shooter professional pick and place machine





Product description:

ET1200 features 10 pick-up head. Using new, highly efficient linear servo motors, lightening and stiffening the head unit, and reviewing the placement speed of 40,000 CPH.

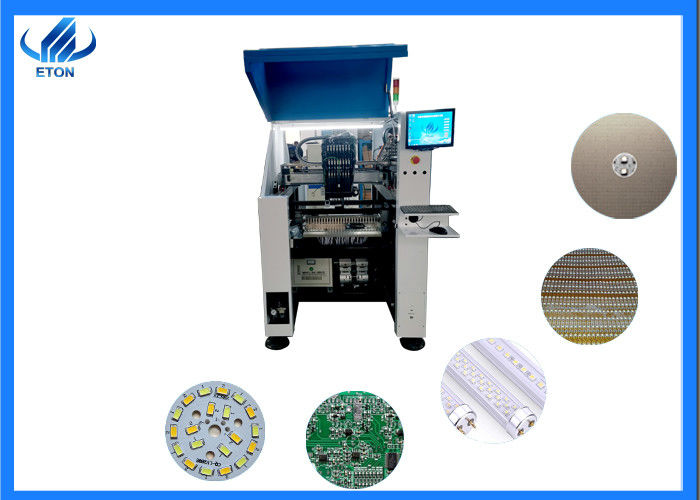

ET-1200 35000CPH Panel Light Chip Shooter SMT Mounting Machine 0

Features:

1) Single module Machine

2) Mounting components : LED , capacitors , resistors , IC , shaped components , etc.





Technical parameter
Length 2550MM
Width 1650MM
Height 1550MM
Total Weight 1250KG
PCB Size Max:1200*350mm Min:100*100mm
PCB Thickness 0.5-5mm
Mounting Mode group picking and separate placing,separate picking and separate placing.
No. of Camera 2 set of imported camera
  Vision for the Flight Identification,Mark correction.
Mounting Precision ±0.02mm





What can this big blue robort do ?

It is suitable for LED ,lens, resistor, capacitor, IC

Take a look at these photos.

ET-1200 35000CPH Panel Light Chip Shooter SMT Mounting Machine 1

Company Introduction:

ETON Automation Equipment Co., Ltd. is a professional manufacturer of pick and place machine. Our company independently research, development, design and manufacturer a set of high -speed good quality SMT pick and place machine.

ET-1200 35000CPH Panel Light Chip Shooter SMT Mounting Machine 2

High quality:

Certificate of CCC,CE,SIRA...

ET-1200 35000CPH Panel Light Chip Shooter SMT Mounting Machine 3
