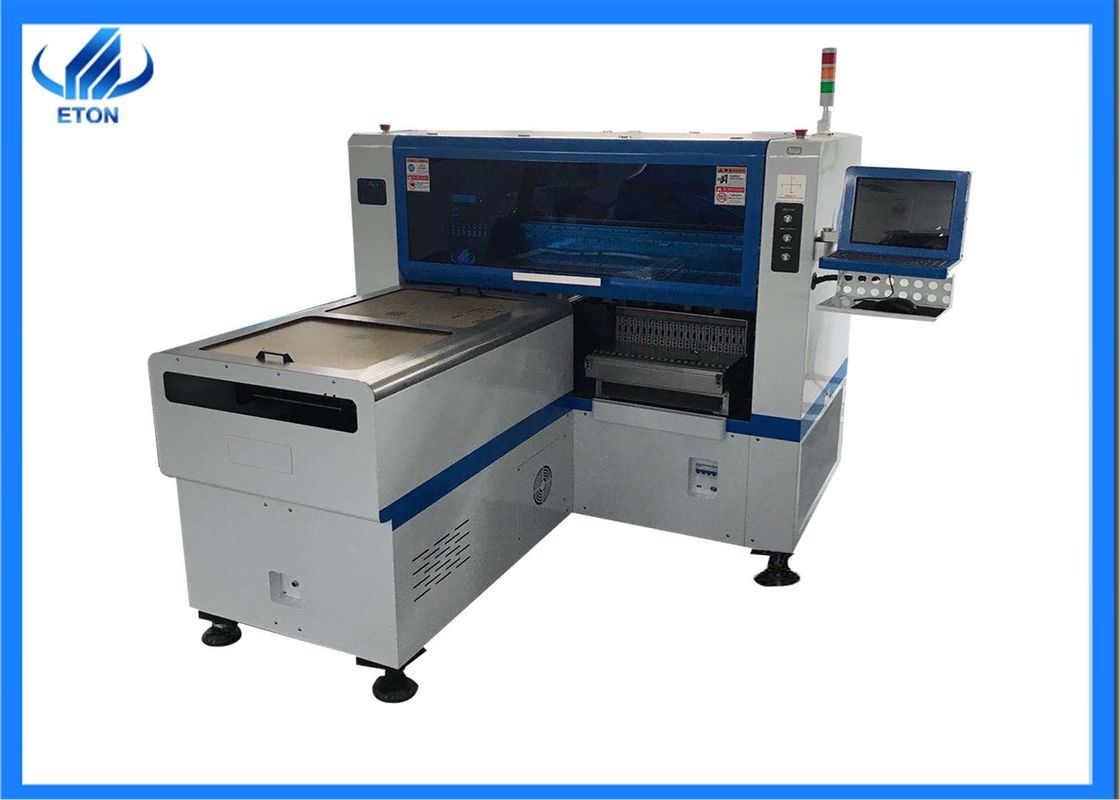

hot selling high efficiency multifunctional smt pick and place machine
Technical parameter :
| Small PCB |
100*100—500*350 |
| Thin thickness |
0.5—3mm |
| Smart PCB clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group picking and separate placing
separate picking and separate placing
|
| 2 sets of precision recognition cameras |
Vision for the flight identification,
Mark correction
|
| High precision |
+-0.02mm |
| Mounting height |
<36mm |
| Mounting speed |
40000CPH |
| Power consumption |
4kw |
| Power |
380AC,50HZ |
| X,Y,Z Axis drive way |
High-end magnetic linear motor+
Servo motor
|
| No of feeders station |
36 |
| No of nozzles |
10 |
It is a high-speed multifunctional machine.
Advantage:
- Mount small components: MIN.size:0402(length*width:1mm*0.5mm)
- Wide range of use: It is suitable for LED,electric board, lens, linear bulb,household
Appliance,power driver,etc.
- High precision: +-0.02mm. 2 sets of imported camera with its features of vision alignment flight identification and Mark correction to solve the problem of throwing materials of previous machines.
- High technology. Automatic operation, save a lot of manpower and material resources. Exclusive Patent Technology: group to pick and group to mount. High-end magnetic linear motor +servo motor to drive X,Y Axis.
ET-E8S application:
It is suitable for the production of circuit boards for a variety of products, such as mobile phones, computers and other electronic equipment, TV and air conditioners and other household appliances, light bulbs, LED and other lamps…
ET-E8S Details:
- 8 servo motors, 11 stepping motors to ensure operating speed
- Using the optical principle of grating ruler, measurement and feedback, higher placement accuracy
- Low power consumption, power supply is only 4KW
If you want to know more about its parameters, don't hesitate to contact us in private, we will serve you sincerely online at any time!
Exhibition:
Certificate:
ETON ( Shenzhen ETON automation equipment CO.,LTD.)
We are committed to the R & D, production, sales and after-sales technical services of SMT high-speed patch.
We are 13 years old this year , still younger, but we have won many prizes: the 4th China · LED Pioneer Award, National High-tech Enterprise, Industry Special Contribution Award…
We are still committed to R & D and innovation to continuously improve the speed and quality of the placement machine.
We are very happy to have many friends from all directions, we are also willing to make progress together with friends from all over the world.
======================================================================================================
