120W 220V Single Phase Solder Paste Printing Machine

Name: 120W 220V Single Phase Solder Paste Printing Machine
Brand: ETON
SKU: ET-S1200
Price: 3000 USD
Availability: InStock
Rating: 5 (115 reviews)

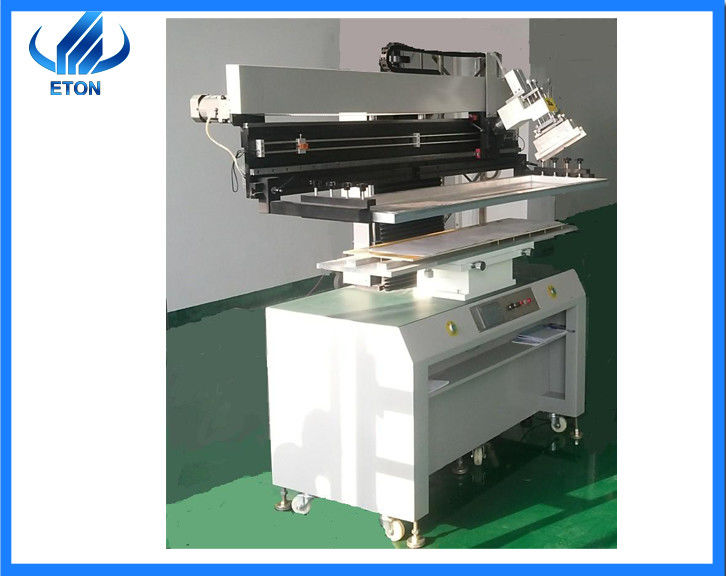

Large Image : 120W 220V Single Phase Solder Paste Printing Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	CI,CCC,SIRA
Model Number:	ET-S1200

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	3000-4000 usd
Packaging Details:	vacuum wooden package
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	50 Units per month

Contact Now

Detailed Product Description

Name:	Printer	Application:	SMT Production Line
Power Supply:	220V/110V	Condition:	100% Original
Type:	Semi-Automatic	Usage:	Circuit Board Assembly
High Light:	120W Solder Paste Printing Machine , Single Phase Solder Paste Printing Machine , 220V SMT Production Machine Printer

Semi-automatic Solder Paste Printing machine SMT production Machine Printer

ET-S1200 Semi-automatic stencil printer

Specifications:

Model	ET-S1200
Printing area	1200×250 mm
Plate Area	1250×300 mm
Stencil Frame Size	470×370 mm～1300×550 mm (L×W)
Positioning way	positioning pin
Scraper Speed	0-100 mm/sec
Power	220V single phase, 50/60 HZ
Power Consumption	120W
PCB plate thickness	0.2-2.0 mm
Plate Trimming	Front/back +/- 10mm Right/Left +/- 10mm
Printing Precision	+/- 0.05 mm
Air supply	5-7 KGF/cm2
Weight	360 kg
Dimension	(L)1600 x(W)900 x(H)1650 mm

Features:

The governor motor drive scraper, combining precision linear guide, ensure the printing precision;
Printing scraper can rotate 45 degrees of fixed upwards, printing plate and scraper cleaning and replacement;
The scraper holder can adjust forward and backward, to select the suitable printing position;
Combined printing platen, has a fixed groove and positioning PIN, easy installation and adjustment, it is used for single and double panel printing;
Steel bar-mesh mobile school edition way, combined with the printing machine (PCB) XYZ calibration adjustment, convenient and quick.
Can be set unidirectional and bidirectional multiple printing methods.

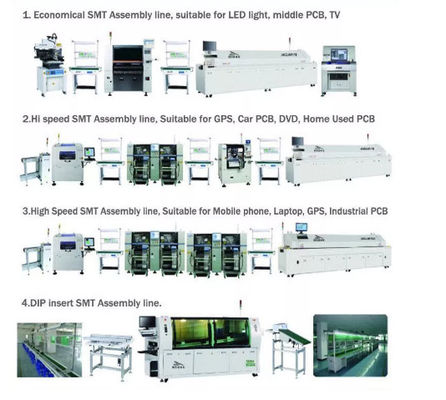

SMT Production Line & LED Assembly Line

We provide ur full SMT line and provide core technology

120W 220V Single Phase Solder Paste Printing Machine 0
