Product Details:
Payment & Shipping Terms:
|
| Name: | SMT Machine Stencil | Application: | SMD Production Line |
|---|---|---|---|
| Power Supply: | 220V/110V | Condition: | 100% Original |
| Product Name: | Conveyor | Usage: | Circuit Board Assembly |
| High Light: | 3KW Automatic Stencil Printer,SMT Machine Automatic Stencil Printer,6mm PCB Smt Solder Paste Printer |
||

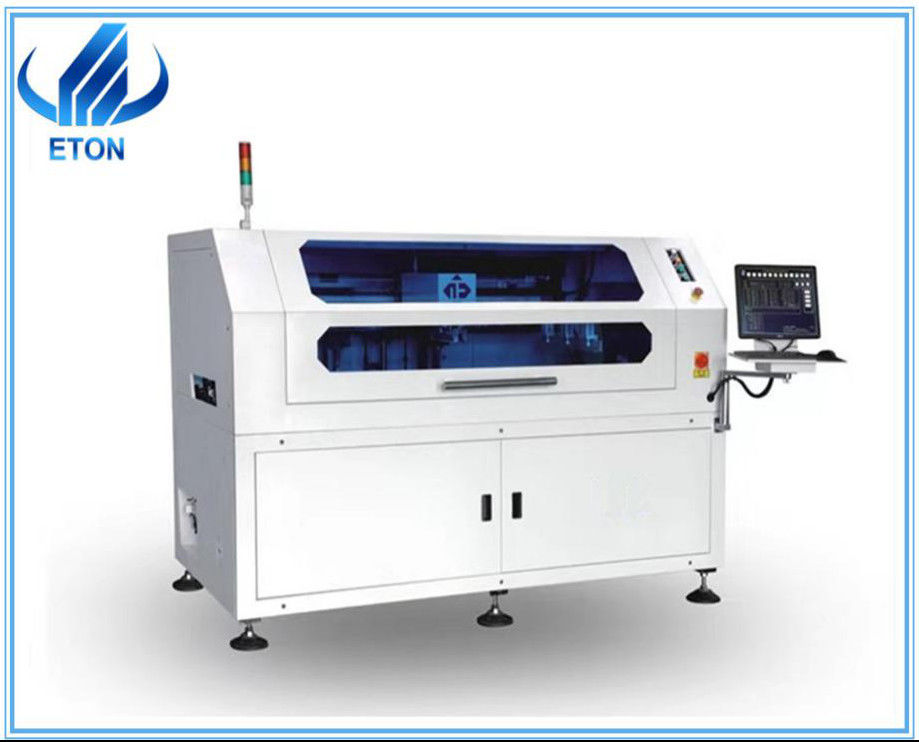

Full automatic printer ET-F1200
Fully automatic printing machine plus a loader machine can work automatically without manual work. Generally, the camera is automatically positioned and calibrated with high precision. Stable printing, but high price
Specifications:
|
Model Item |
ET-F1200 |
| Screen Frames Min Size | 737X300mm |
| Screen Frames Max Size | 1500X750mm |
| Screen Frames Thickness | 25~40mm |
| PCB Min Size | 80X50mm |
| PCB Max Size | 1200X350mm |
| PCB Thickness | 0.4~6mm |
| PCB Warpage | ＜1% |
| Transport Height | 900±40mm |
| Transport Direction | Left-Right;Right-Left;Left-Left;Right-Right |
| Transport Speed | Max 1500mm/S Programmable |
| Board Location PCB Support System |
Magnetic Pin/Up-down table adjusted/supportblock by hand |
| Clamping System | Elastic side clamp/Z press |
| Squeegee Speed | 6~200mm/sec |
| Squeegee Pressure | 0~15Kg |
| Squeegee Angle | 60°/55°/45° |
| Squeegee Type | Stainless steel(Standard), plastic |
| Stencil Separation Speed | 0.1~20mm/sec Programmable |
| Cleaning System | Dry,Wet,Vacuum (Programmable) |
| Table Adjustment ranges | X:±10mm;Y:±10mm;θ:±2° |
| Repeat Position Accuracy | ±0.015mm |
| Printing Accuracy | ±0.03mm |
| Cycle Time | <12s (Exclude Printing & Cleaning) |
| Product Changeover |  <5Min |
| Air Required | 4.5~6Kg/cm2 |
| Power Input | AC:220±10%,50/60HZ 1Φ 3KW |
| Control Method | PC Control |
| Machine Dimensions | 2200(L)X1200(W)X1500(H)mm |
| Machine Weight | Approx:1500Kg |

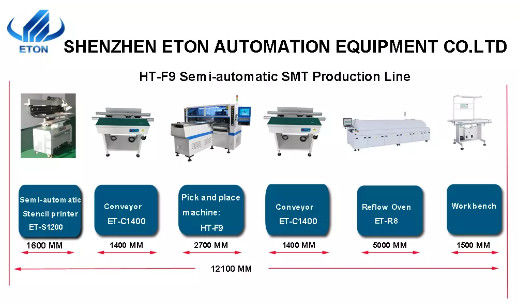

SMT Production Line
After sales service
Maintenance period: 1 year(any parts need to be repaired and replaced will be free)
Visit customers regularly
ETON Software R&D , easy to operate and free updates for life.
