Product Details:
Payment & Shipping Terms:
|
Name: | SMT Pick And Place Machine | Application: | SMT Production Line |
---|---|---|---|
Condition: | 100% Original | Product Name: | SMT Mounting Machine |
Mounting Speed: | 90000 CPH | Usage: | Circuit Board Assembly |
High Light: | 20 Heads SMT Pick And Place Machine,90000 CPH SMT Pick And Place Machine,X Axis Smt Assembly Equipment |

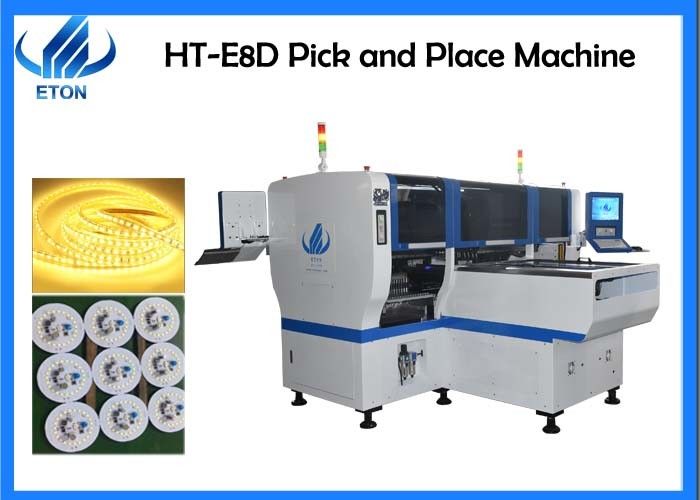

Stable Visual Position SMT Pick and Place Machine 20 heads multifunctional mounter
Features:
1Double-module magnetic linear motor. Mount 0402 to 7272 can meet all specifications of SMD LED components. In addition to all the planar LED plane, other electronic components (such as resistors,capacitors) and high power LED and the lens can be produced;
2.Precise positioning: positioning block is the most convenient way to position the substrate, the origin of counterpoint,accurate positioning (accuracy less than 0.05 mm). Mount angle range of 0-360 degrees, the accuracy of 0.1 degrees. Each suction nozzle is independent of angle, and six element recognition cameras, in addition to LED lamp can mount the traditional., bulb lamp,lamp, ceiling lamp, guardrail tube, LED drive power, copper lamp series and so on can be freely mounted;
3.High precision:X axis is quipped with magnetic linear motor,and Y axis is equipped with precision ball screw and guide rail, Z axis 10 sets of imported motor drive
4.SMT specifications: applicable to the current market of 99% LED products;PCB board can be affixed to various shapes, without clamps;
5.The visual system, visual programming software online programming, which is of high precision digital camera camera, there is no need to manually input elements and positioning coordinates; using visual camera automatic identification, to ensure the accuracy of mount;
Finished products
Delivery
Usually wooden vacuum package
FAQ
Q1:Do you provide software updates?
Customers who buy our machine,we can offer free upgrades software lifetime for you .
Q2:This is the first time i use this kind of machine ,is it easy to operate ?
We have English user manual and engineer teach you how to use the machine freely.
Q3:How about the warranty ?
We have 1 year warranty for all other model , life time after-sales support .
