LED Display 68 Nozzle 200000 CPH Led Lights Assembly Machine

Large Image : LED Display 68 Nozzle 200000 CPH Led Lights Assembly Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	CCC,CE,SIRA
Model Number:	HT-F9
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	40000-50000 usd
Packaging Details:	vacuum wooden package
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	50 Units per month

Contact Now

Detailed Product Description

Name:	SMT Chip Mounter	Application:	SMD Production Line
Condition:	New	Product Name:	Place Machine\ LED Mounter\LED Assembly Machine
Mounting Speed:	200000	Usage:	SMT Mounting Machine,LED
Highlight:	200000 CPH Led Lights Assembly Machine , 68 Nozzle Led Lights Assembly Machine , LED Display Smt Mounter Machine

Advantage High Speed 68 nozzle SMT Pick and Place Machine HT-F9

APPLICATION: Apply to the0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip. 68 nozzles working at the same time,high productivity. Optimum speed reach 200000 CPH

LED Display 68 Nozzle 200000 CPH Led Lights Assembly Machine 0

HT-F9 Technical Parameter
1	*LengthWidthHeight*	2700mm**2300mm 1**550mm
2	Total Weight	1700kg
3	PCB Length Width	Max:1200330mm Min:100100mm
4	PCB Thickness	0.5-5mm
5	PCB Clamping	Adjustable pressure pneumatic
6	Mounting Mode	Group to take and group to place
7	Software	Windows 7
8	Display	Touch screen
9	Input Device	Keyboard,Mouse
10	No. of Camera	5 sets of imported camera
11	Position Camera	Vision for the flight identification + MARK correction
12	Mounting repeat Precision	±0.02mm chip
13	Mounting Height	<5mm
14	Mounting Speed	200000 CPH(optimum)
15	Components	LED chip,capacitors,resistors,IC,RGB,shaped components etc.
16	Components Space	0.5mm
17	X,Y,Z Axis Driving	Magnetic linear motor
18	feeder stations	68 PCS
19	No. of nozzles	68 nozzles

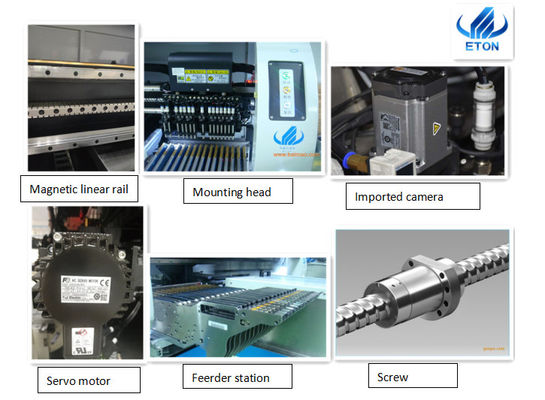

Details of F9

Eton pick and place machine condones the world’s top technology. Vision camera provide flight identification, high precise magnetic linear motor, grating scale from Renishaw, Germany,etc.

LED Display 68 Nozzle 200000 CPH Led Lights Assembly Machine 1

Project cases

We provide SMT solution and core technology.We have our own R&D department, the machine provides a one-year warranty, any damage within a year can be replaced free of charge. The software offers free updates for life. We have overseas engineers who can quickly support you.

LED Display 68 Nozzle 200000 CPH Led Lights Assembly Machine 2

Delivery

Usually vacuum wooden package, the delivery time is 30 days after receiving the deposit.

LED Display 68 Nozzle 200000 CPH Led Lights Assembly Machine 3

Part of honor clients

Eton is a largest pick and place machine manufacturer, and own its factory. Right now, we have integrated R&D, production and sales together. And we export our products in many countries such as USA , KOREA , INDIA , GERMANY , EGYPT , TURKEY , VIETNAM , TUNISIA , THAILAND more than 20 countries

LED Display 68 Nozzle 200000 CPH Led Lights Assembly Machine 4

PLS CONTACT FOR MORE DETAILS
