Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402,0603 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Application: | SMD Production Line |
| Power Supply: | 380AC 50HZ | Condition: | 100% Original |
| Product Name: | Place Machine\ LED Mounter\LED Assembly Machine | ||
| High Light: | 35000 CPH Pcb Mounting Machine,10 Nozzles Pcb Mounting Machine,0.2mm Components Smt Placement Machine |
||

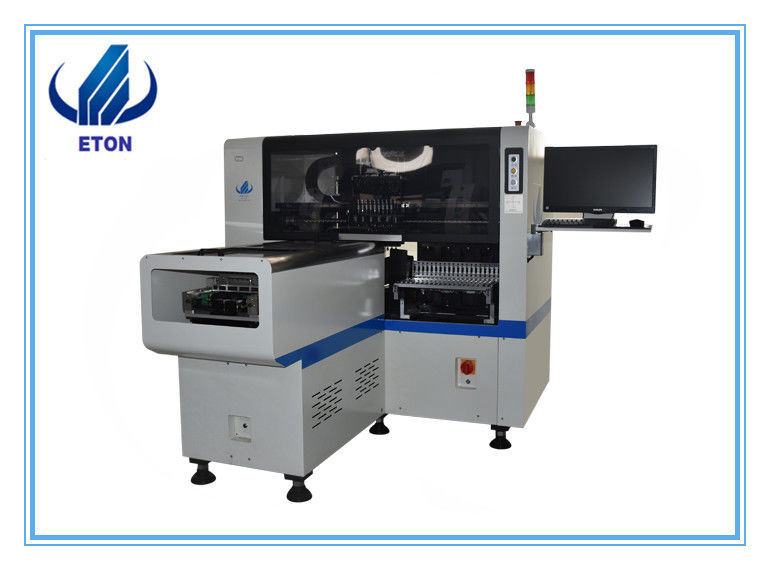

Features Of E6
Accurately place, manager, and track components with Smart Feeders
Apply to different kinds of SMD components: LED chip, capacitors, resistors, IC,RGB, shaped components,etc.
Our Advantage:
1. There is an adjustable track at the PCB entrance, which can clamp the board from 100*100--350*1200mm well
2. Fully automatic operation, saving manpower
3. The smallest mounting component: 0402
TECHNICAL PARAMETER
| E6T Technical Parameter | ||
| 1 | Length*Width*Height | 1650mm*1200mm *1570mm |
| 2 | Total Weight | 1200kg |
| 3 | PCB Length Width | Max:500*350mm Min:100*100mm |
| 4 | PCB Thickness | 0.5-5mm |
| 5 | PCB Clamping | Electric clamping |
| 6 | Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| 7 | Software | Windows 7 |
| 8 | Display | Touch screen |
| 9 | Input Device | Keyboard,Mouse |
| 10 | No. of Camera | 2 sets of imported camera |
| 11 | Position Camera | Vision for the flight identification + MARK correction |
| 12 | Mounting repeat Precision | ±0.02mm chip |
| 13 | Mounting Height | <40mm(component max height 20mm) |
| 14 | Mounting Speed | 35000 CPH(optimum) |
| 15 | Components | LED chip,capacitors,resistors,IC,RGB,shaped components etc. |
| 16 | Components Speed | 0.2mm |
| 17 | X,Y,Z Axies Driving | Magnetic linear motor+servo motor |
| 18 | feeder stations | 26PCS |
| 19 | No. of nozzles | 10 nozzles |
Finished products
It's suitable for power driver, electric boards,LED screen, bulb, down light, panel, strip, lamp, street light, ceiling light and etc
