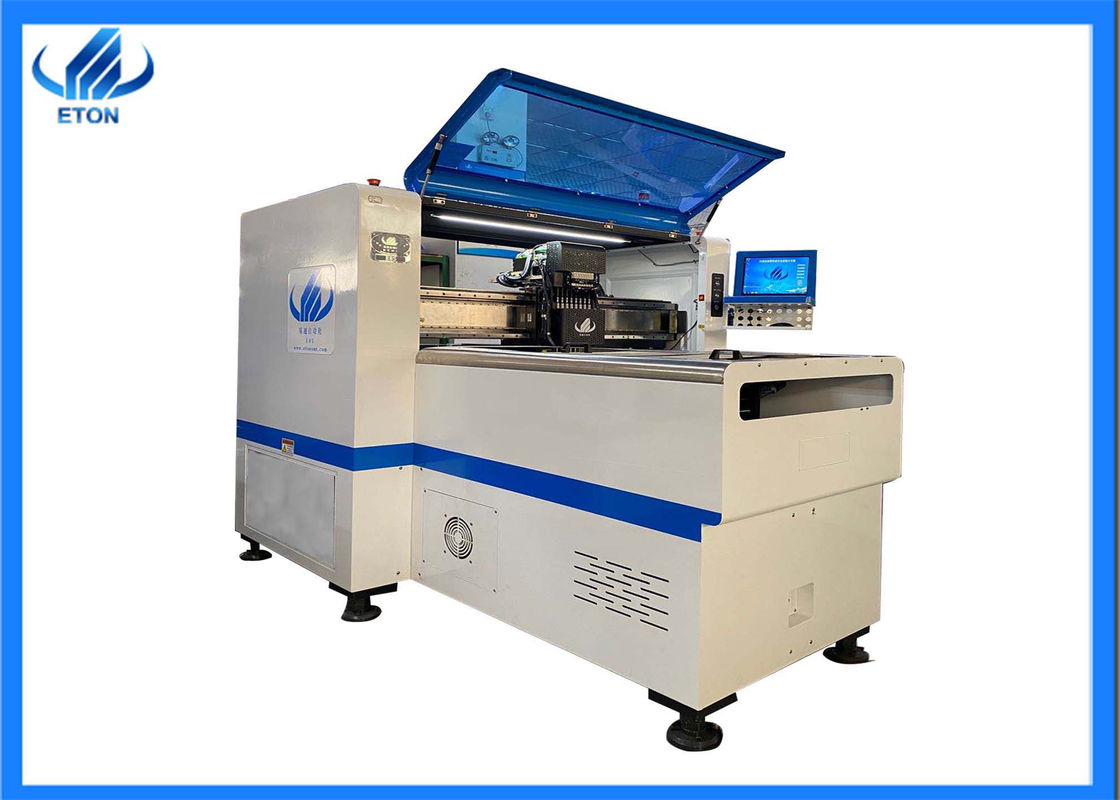

5mm PCB 8 nozzles 40000CPH Pick And Place Machine

Large Image : 5mm PCB 8 nozzles 40000CPH Pick And Place Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	SIRA CCC CE
Model Number:	HT-E8S
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	40000-50000 USD
Packaging Details:	vacuum wooden package
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	50 Units per month

Contact Now

Detailed Product Description

Name:	SMD Chip Mounter,SMT Pick And Place Machine	Application:	SMD Production Line,SMT Mounting Shooter Machine
Condition:	100% Original	Product Name:	Place Machine\ LED Mounter\LED Assembly Machine
Mounting Speed:	40000 CPH	Type:	Automatic
Usage:	Circuit Board Assembly,SMT Mounting Machine,SMD,LED
Highlight:	40000CPH Pick And Place Machine , 5mm PCB Pick And Place Machine , 8 Nozzles Smt Mounter Machine

Stable Visual Position smt pick and place machine

Features

Vision alignment flight identification,mark correction

Auto-optimization after coordinates generated

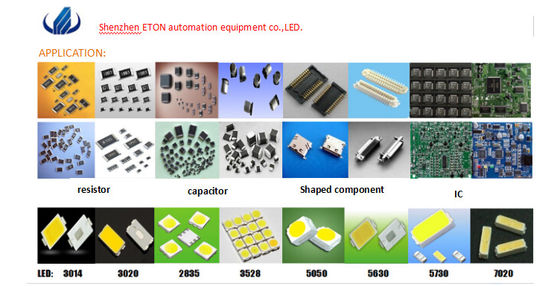

Apply to different kinds of SMD components: LED chip, capacitors, resistors, IC,RGB, shaped components,etc.

Component : Min.size 0402 Max.height 15mm

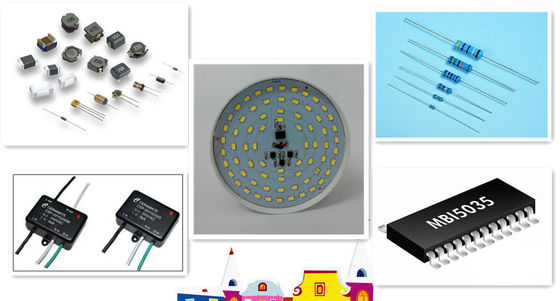

APPLICATION: Apply to the DOB,bulbs,flexible strip,tube,tube,display,electric board,

all kinds of driver,etc. 8 nozzles working at the same time,high productivity.

introduction of E8S

5mm PCB 8 nozzles 40000CPH Pick And Place Machine 1

HT-E8S Technical Parameter
1	*LengthWidthHeight*	2550mm**1650mm 1**550mm
2	Total Weight	1700kg
3	PCB Length Width	Max:1200350mm Min:100100mm
4	PCB Thickness	0.5-5mm
5	PCB Clamping	Adjustable pressure pneumatic
6	Mounting Mode	Group picking and separate placing,separate picking and separate placing
7	Software	R&D independently
8	Display	Touch screen
9	Input Device	Keyboard,Mouse
10	No. of Camera	2 sets of imported camera
11	Position Camera	Vision for the flight identification + MARK correction
12	Mounting repeat Precision	±0.04mm chip
13	Mounting Height	<15mm
14	Mounting Speed	45000 CPH(optimum)
15	Components	LED chip,capacitors,resistors,IC,RGB,shaped components etc.
16	Components Space	0.2mm
17	X,Y,Z Axis Driving	Magnetic linear motor
18	feeder stations	36 PCS
19	No. of nozzles	12 nozzles
20	Transmission direction	Both direction (option)
21	Feeding way	Electric feeder with double motor

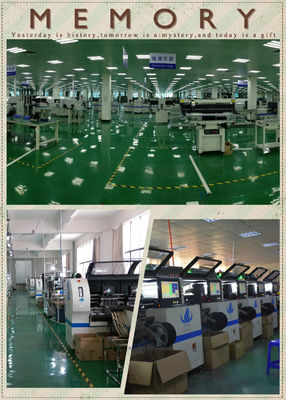

Project cases

We have more than ten years experience in SMT machine manufacturing

We have been helping a lot of customers to build new factories around the world.

We have our own R&D department, the software offers free updates for life.

We provide the best service and the most advanced technology to grow up your business.

How to choose suitable Feeder?

8mm: 3014, 4014, 3528 and other lamp beads

12mm: 5050, 5630, 5730, 3030, 7020, etc. lamp beads, resistors, capacitors, etc.

16mm: IC, heterosexual components, etc.

24mm: Larger special-shaped components, etc.

5mm PCB 8 nozzles 40000CPH Pick And Place Machine 3
