Product Details:
Payment & Shipping Terms:
|
| Dimension: | 2550*1650*1550mm | Total Weight: | 1250kg |
|---|---|---|---|
| System: | Windows7 | Power Consumption: | 4KW |
| Speed: | 40000CPH | Warranty: | 1 Year |
| Software: | R&D Independently | Application: | PCB, Power Driver.electric Board.lens.linear Bulb.household Appliance Etc. |
| Feeders: | 36 PCS | Nozzles: | 12PCS |
| High Light: | 40000CPH Led Chip Placement Machine,4KW Led Chip Placement Machine,0.2mm Components Flexible Strip Mounter |
||

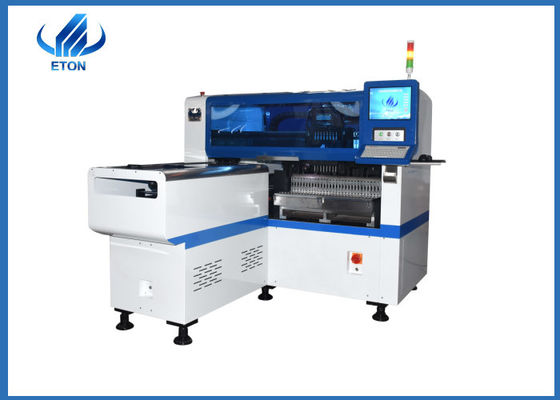

led bulb flexible strip light smt led chip placement machine
Details
1.High-speed magnetic linear motor multi-functional pick and place machine
2. Single module, 8 head pasted on the 8 suction nozzles discharge at the same time
3. The flying camera component identification, maximize placement rate, maximum patch speed 45000 CPH
4.Exclusive patent technology: electronic feeder feeding system, faster and more accurate, MARK correction, non-stop material re-loading system, save time cost and artificial cost. The maximum size of PCB is 1200*350mm
Application
Components:0402,led,capacitor,resistor,shaped components,etc
Products:all kind of led light,such as led bulbs,led tube,down light,street light,led display screen,lens,power driver,electric board,etc
functional characteristics
1.high stability:with magnetic linear motor,servo motor driving X,Y,Z axis.
2.Powerful functions: different feeder can be configured to meet the mounting requirements of various LED products.
3.simple operation: Chinese and English graphical interface, easy to operate. Simple programming, can be saved and edited files, arbitrary call;
4.Easy maintenance: simple design and easy maintenance. Low cost of replacement parts, low maintenance cost.

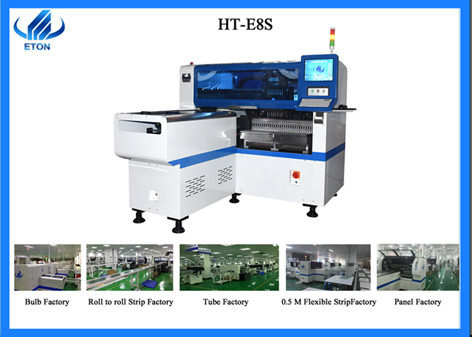

| HT-E8S | ||
| PCB | PCB length width | Max:1200*300mm min:100*100mm |
| PCB thickness | 0.5~5mm | |
| O.S. | system | Windows 7 |
| software | R&D independently | |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 40000CPH | |
| Components space | 0.2mm | |
| No.of feeders station | 30PCS | |
| No.of nozzles | 8PCS | |
| Power | 380AC 50HZ | |
| Power consumption | 4KW | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | Electric feeder with double motor | |
Company Profile
1.ETON is a leading manufacturer of automatic high-speed pick and place machine in China.Have own industrial park in Jiangxi.It's been 10 years.
2.Obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents,12 software copyrights.
3.”High efficiency””high quality””high stability” are the core technology of ETON.
Our Services
1.Video technical support,24-hour online support
2.Visit customers regularly and gather information.
3.Goods tracking support
4.Free broken parts(Within 1 YEAR warranty )
5.Upgrade the software will be free
FAQ:
Q : Is there any quality guarantee?
We stick to quality first, client-oriented, Continuous improvement!
Q: What is SMT Machine?
This is an LED lamp patch machine using surface mount technology.
Q: What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
Q: What is the delivery date?
We will deliver the goods after 30 days' deposit.
Q: How about your operating system?
The operating system is Windows 7. The software is developed independently. It supports Chinese and English operation interface. And It has simple structure and is easy to operate.
