Module: | HT-F9 | Speed: | 200000cph |
---|---|---|---|
Name: | Pick And Place Machine | Warranty: | 1 Year |
Products: | Led Strip Light/ Panel Light/Tube/Bulb | Install: | Free |
High Light: | 200000cph PCB Pick And Place Machine,1200*330mm PCB Pick And Place Machine,CCC LED Strip Mounting Machine |
SMD Machines for led lighting
Materials for making flexible light bars:
Main production materials
1. FPC circuit board
2. SMD LED lamp beads
3. Chip resistors
4. Waterproof treatment (divided into PU polyurethane and ordinary epoxy resin)
There are four types of waterproof treatments for SMD soft light strips:
1. surface glue
2. Waterproof casing
3 Solid waterproof (U-shaped groove + resin)
4 Glue-filled waterproof (casing + resin)
Prepare:
Production accessories: solder paste
Production equipment:
1. Solder paste mixer
2. Solder Paste Printer
3. SMT placement machine
4. Reflow soldering machine
5. Glue filling machine

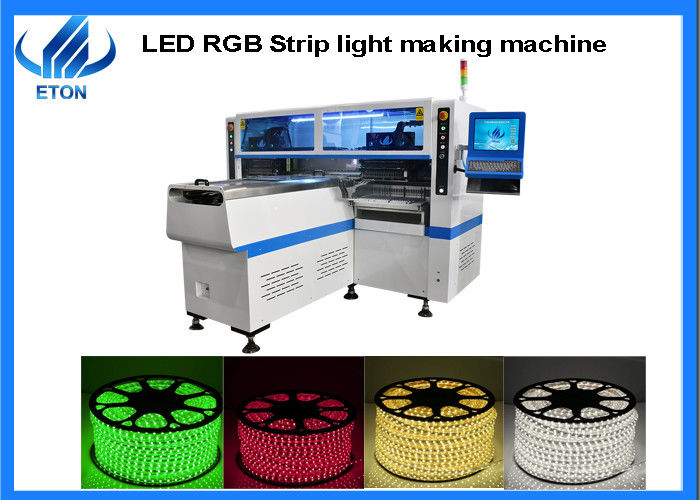

SMT Placement machine
F9 is one of smt machine, it’s function is pick the components and then mount on the pcb. We can say it is the most important machine in the smt line. Here is the parameter and some pictures of this module.
Dimension: 2.7*2.3*1.55 meters
PCB: Suitable for max pcb size is 1200*330mm, min size :100*100mm
Mounting mode: Group to take and group to mount
Components: Suitable for mounting LED 3014/3528/3020/5050 and resistor, capacitors, bridge rectifiers.
No. of nozzles: 68 pcs
No. of feeders station: 68 pcs
Feeding way: Electrical feeder with double motor
SMT Whole line
ETON provides the whole smt line machines for you with best price and quality.
Operate
ETON SMT Machines is easy operate , and we also will sent engineer to your factory for free install and training.
