| Place Of Origin: | China | Warranty: | 1 Year |
|---|---|---|---|
| Visual Camera: | 5 Sets Of Imported Camera | System: | Windows7 |
| Dimension: | 2200*2910*1550mm | Power: | 220AC 50HZ |
| Power Consumption: | 5KW | PCB Thickness: | 0.5~1.5mm |
| PCB Length Width: | 250*any Length | Total Weight: | 1600kg |
| Software: | R&D Independently |

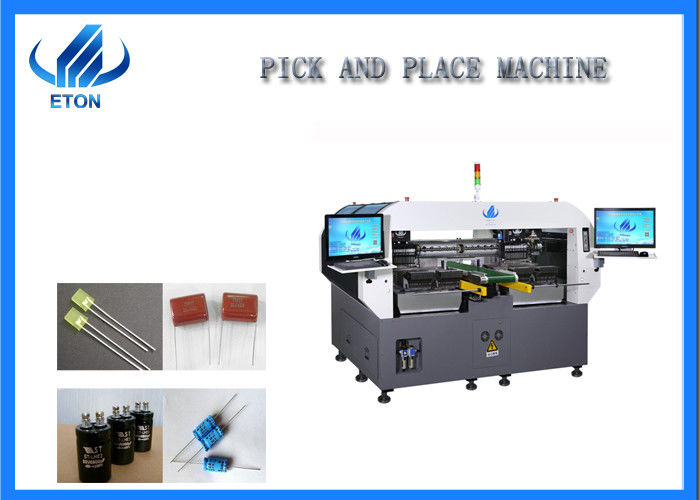

good capacity high speed surface mount pick and place machine for SMD
Advantages
1.HT-F7S professional high speed mounter apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip.
2.Mounting components includes LED 3014/3020/3528/5050 and resistors,capacitors,bridge rectifiers.
3.HT-F7S professional high speed mounter can producing with 2~4 types of materials with high capacity,available for board with any proportion of LED chip and resistors.
4.Two mounting modules ,18 nozzles for each mounting part, part A or B can be mounted separately or synchronously.
5.Exclusive patent technology :group to take and group to mount .
Applications
This machine can satisfy most of the soft lamp band mounting in the market.
The advantage of special dual-mode mounter is that it can mount many kinds of materials at the same time without waiting for mounting. It has the characteristics of high speed, high efficiency and saving labor cost.
Performance introduction
High precision
With a new visual recognition system, five imported cameras, visual alignment, Mark correction technology, combined with optical positioning method, accurately identify the position of PCB board and quickly and accurately mount components.
High speed
producing with 2~4 types of materials with high capacity ,available for board with any proportion of LED chip and resistors.Two mounting modules ,18 nozzles for each mounting part, part A or B can be mounted separatly or synchronously.
Application of exclusive patent technology: group to take and group to mount ,mounting speed around 150000CPH.
It saves a lot of time, space and manpower cost.
Good durability
Using High Stability Electronic Dual Motor
The wear resistance of screw rod is not easy to deviate and has high accuracy.
The guide rail has strong bearing capacity and high stability.
High-quality hardware configuration for 24-hour machine operation.
| HT-F7S | ||
| PCB | PCB length width | Max:1200*330mm min:80*330mm |
| PCB thickness | 0.5~5mm | |
| PCB clamping | Adjustable pressure pneumatic | |
| software | R&D independently | |
| display | LED monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
5 sets of imported camera Vision alignment,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <15mm | |
| Mounting speed | 150000~170000CPH | |
| Components | LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers. | |
| Components space | 0.2mm | |
| No.of feeders station | 72PCS | |
| No.of nozzles | 36PCS | |
| Power | 220AC 50HZ | |
| Power consumption | 5KW | |
| Conveyor transmission | Belt drive | |
| Transmission direction | Single (left to right or right or left) | |
| Transmission mode | Auto online drive | |
| Position mode | Optical | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | Electric feeder with double motor | |
Remarks
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
After-sale Service
1.Profession solutions:Provide professional SMT Full line solutions.
2.Free warranty: one-year warranty factory service.
3.Free Installation: On-site free installation to ensure smooth production
4.Free technical training:Professional training of operating and maintenance.
5.Free technical support:7*24 technical online support.
6.Free software update:Offer free software update lifetime.
