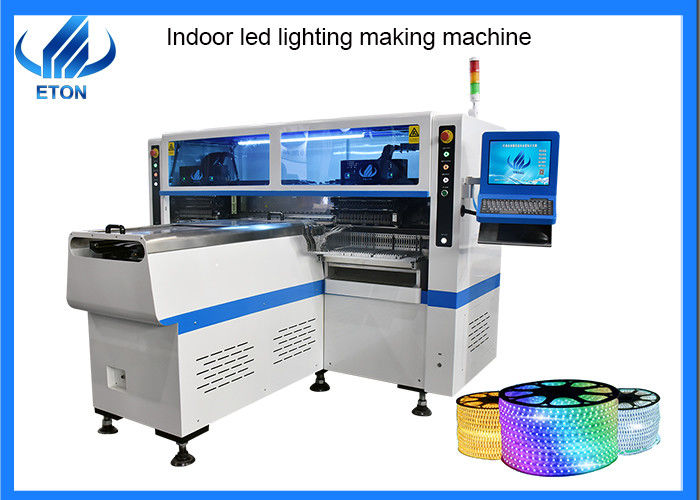

SIRA CCC 68 heads SMT Mounting Machine For Led Lighting

Pick and place  for led, resistor, components

Mounting SMD components

The types of SMD components are very much and different. Like the SOP,SOJ,PLCC,LCCC,QFP,BGA,CSP,FC,MCM,LED CHIP, Resistor, IC, ETC. In the led lighting industry, the most common components are 0402/3014/3528/5050/5630.

In the led strip, there are led chip and resistor components only. So it is very suitable for mounting by high speed machine with high capacity. Here recommend ETON HT-F9 high speed mounting machine.

Application of HT-F9

F9 is one of the high speed professional pick and place machine . It’s speed can be reached 200000-250000 cph. Very suitable for mounting led strip, led panel, tube products. Besides, it is widely used in the led lighting board industry for normal led lighting products.

The SMT line design of HT-F9

For the SMT Line, there are automatic line and semiautomatic line. Automatic is suitable for electrical board with higher cost. Semiautomatic line suitable for big pcb design product and easy products. For led strip, panel, tube, we recommend the semiautomatic line for save much cost of machine.

Main features of HT-F9

One. HT-F9 have 68 heads with 68 feeders, so the capacity is very fast, it is the best choose for the big led factory.

Two. HT-F9 mounting mode is group to take and group to mount, it is fast mounting mode for led lightings.

Three. HT-F9 suitable for mounting LED 3014/3020/3528/5050 and resistor, capacitor, bridge rectifiers.
