| Name: | Pick And Place Machine | Components: | LED 3014/3020/3528/5050 Resistor Capacitors |
|---|---|---|---|
| Speed: | 200000CPH | Feeders: | 68 PCS |
| PCB Size: | 250mm*any Length | Nozzles: | 68 PCS |
| High Light: | LED 0805 Robot SMT Mounting Machine,LED 3528 Robot SMT Mounting Machine,200000CPH LED Smt Mounter Machine |
||
0805 3528high speed pick and place robot SMT mounting machine
High speed
producing with 2~4 types of materials with high capacity ,available for board with any proportion of LED chip and resistors.Two mounting modules ,18 nozzles for each mounting part, part A or B can be mounted separatly or synchronously.
Application of exclusive patent technology: group to take and group to mount ,mounting speed around 150000CPH.
It saves a lot of time, space and manpower cost.
Good durability
Using High Stability Electronic Dual Motor
The wear resistance of screw rod is not easy to deviate and has high accuracy.
The guide rail has strong bearing capacity and high stability.
High-quality hardware configuration for 24-hour machine operation.
strip,roll to roll.
Attached its technical parameter:
| HT-F9 | ||
| PCB | PCB length width | Max:1200*330mm min:80*330mm |
| PCB thickness | 0.5~5mm | |
| O.S. | system | Windows 7 |
| software | R&D independently | |
|
Vision system |
No.of camera |
5 sets of imported camera Vision alignment,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <15mm | |
| Mounting speed | 200000CPH | |
| Components | LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers. | |
| Components space | 0.2mm | |
| No.of feeders station | 68PCS | |
| No.of nozzles | 68PCS | |
| Power | 380AC 50HZ | |
| Power consumption | 6KW | |
| Transmission direction | Single (left to right or right or left) | |
| Transmission mode | Auto online drive | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor +magnetic linear motor | |

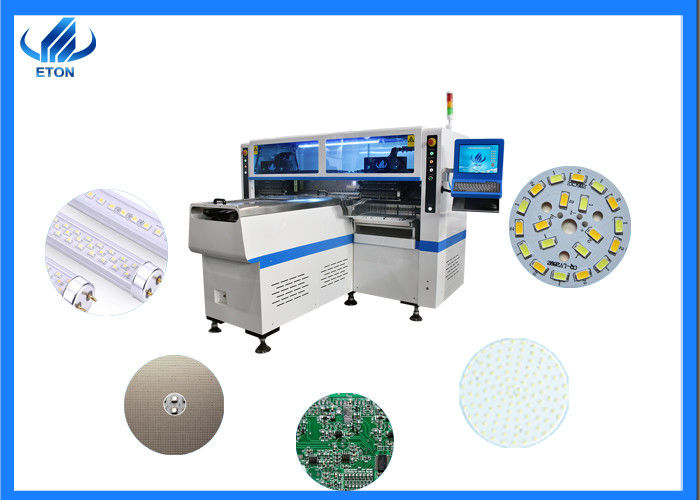

What can this big blue robort do ?
It is suitable for LED 3014,3020,3528,5050 and resistor, capacitor, bridge rectifiers
Take a look at these photos.
The production layout
Wooden vacuum packaging:
Our close-up style:
Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
After sales service
Maintenance period: 1 year.
Visit customers regularly and gather information.
Provide latent information about technology and equipment.
Application
1.Components:LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers.
2.Suitable for flexible light strip 1m,5m,50m,100m or any length of flexible strip and Roll to Roll,Available for RGB.
FAQ
Q:How is the training?
A:After you buy the machine, we will have an engineer to your factory for free installation and training
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 3~5 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes,In Both Chinese and English.
