Name: | Pick And Place Machine | Components: | LED 3014/3020/3528/5050 Resistor Capacitors |
---|---|---|---|
Nozzles: | 68 PCS | Speed: | 200000CPH |
PCB Size: | 1200*350—100*100mm | Feeders: | 34 PCS |
Warranty: | 1 Year | Power: | 380AC 50HZ |
High Light: | 5050 Led SMT Mounter Machine,200000CPH SMT Mounter Machine,380VAC Rope Light SMT Mounter |

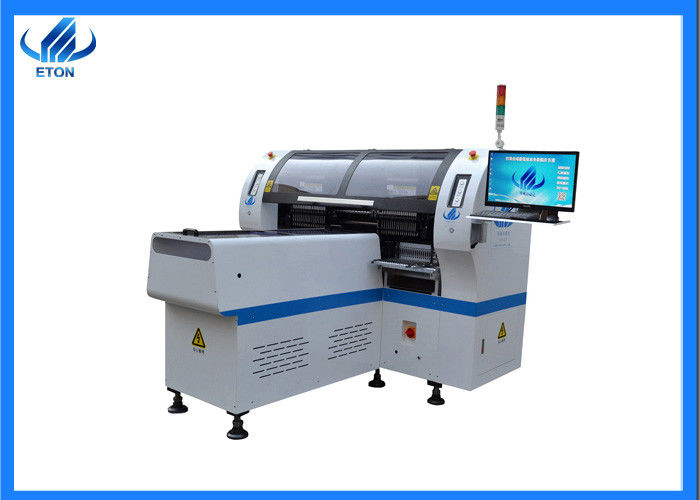

5050 high speed low cost pick and place machine for rope light
Technical parameter
HT-X9 | ||
PCB | PCB length width | Max:350*1200mm min100*100mm |
PCB thickness | 0.5~5mm | |
PCB clamping | Adjustable pressure pneumatic | |
Mounting mode | Group to take and group to mount | |
O.S. | system | Windows 7 |
software | R&D independently | |
display | LED monitor | |
Input device | Keyboard , mouse | |
Vision system |
No.of camera |
5 sets of imported camera Vision alignment,mark correction |
Mounting precision | 0.02mm(repeat precision) | |
Mounting height | <15mm | |
Mounting speed | 200000CPH | |
Components | LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers. | |
Components space | 0.2mm | |
No.of feeders station | 34PCS | |
No.of nozzles | 68PCS | |
Power | 220AC 50HZ | |
Power consumption | 6KW | |
Conveyor transmission | Max length:1200mm | |
Transmission speed | >500mm/sec | |
Transmission direction | Single (left to right or right or left) | |
Transmission mode | Auto online drive | |
Position mode | Optical | |
Air pressure | >5.0kg /cm² | |
Electrical control | Independent research and development by ETON | |
Motion control card module 1set | Independent research and development by ETON | |
X,Y,X axis drive way | Servo motor+linear magnetic motor | |
Feeding way | Electric feeder with double motor |
Technology leads the future
A. Exclusive patented technology: group picking and group mounting
B. Optical recognition, automatic replenishment, no shortage of materials
C. Fast mounting of hard light boards and soft light strips : 200,000 CPH
Application field
LED tubes, panel lights, flexible light strips, street lights, etc.
