380AC 200000CPH Smd Pick And Place Machine CCC For Led Light

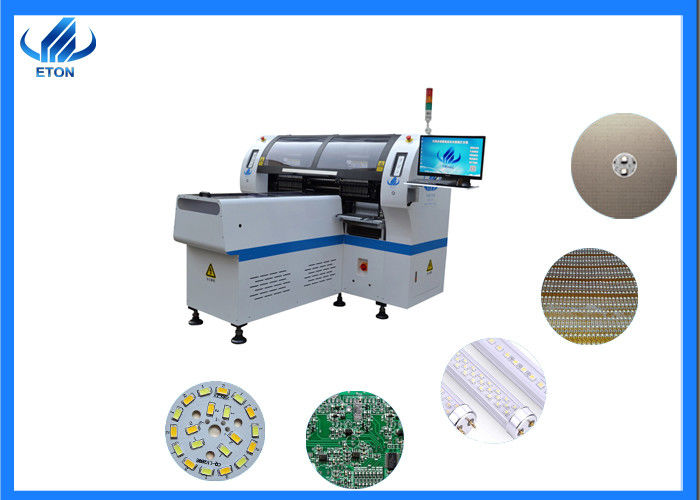

Large Image : 380AC 200000CPH Smd Pick And Place Machine CCC For Led Light

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	CE,CCC,SIRA
Model Number:	HT-X9
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	EXW USD 78000/sets
Packaging Details:	Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time:	30 days after deposit
Payment Terms:	T/T
Supply Ability:	50 sets per mouth

Contact Now

Detailed Product Description

Name:	Pick And Place Machine	Components:	LED 3014/3020/3528/5050 Resistor Capacitors
Speed:	200000CPH	PCB Size:	1200350—100100mm
Feeders:	34 PCS	Nozzles:	68 PCS
Warranty:	1 Year	Power:	380AC 50HZ
Highlight:	200000CPH Smd Pick And Place Machine , 380AC Smd Pick And Place Machine , CCC Led Light SMT Mounter

high capacity high speed smd pick and place machine for led light

HT-F9 professional high speed mounter apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip. Mounting components includes LED 3014/3020/3528/5050 and resistors,capacitors,bridge rectifiers.
HT-F9 professional high speed mounter can producing with 2~4 types of materials with high capacity,available for board with any proportion of

LED chip and resistors.
Two mounting modules ,18 nozzles for each mounting part, part A or B can be mounted separately or synchronously.
Exclusive patent technology :group to take and group to mount .

Advantages
1.Vision system: vision alignment ,mark correction with 5 sets of imported camera.
2.Dual module professional mounter,17 nozzles for each mounting module.
3.Fully automatic feeder feeding system to ensure the accuracy of placement speed machine placement machine.
4.XYZ axis by servo motor to drive ,Ensure that the machine can run at high speed for 24 hours.

Technical parameter

HT-X9
PCB	PCB length width	Max:3501200mm min100100mm
	PCB thickness	0.5~5mm
	PCB clamping	Adjustable pressure pneumatic
	Mounting mode	Group to take and group to mount
O.S.	system	Windows 7
	software	R&D independently
	display	LED monitor
	Input device	Keyboard , mouse
Vision system	No.of camera	5 sets of imported camera Vision alignment,mark correction
	Mounting precision	0.02mm(repeat precision)
	Mounting height	<15mm
	Mounting speed	200000CPH
	Components	LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers.
	Components space	0.2mm
	No.of feeders station	34PCS
	No.of nozzles	68PCS
	Power	220AC 50HZ
	Power consumption	6KW
	Conveyor transmission	Max length:1200mm
	Transmission speed	>500mm/sec
	Transmission direction	Single (left to right or right or left)
	Transmission mode	Auto online drive
	Position mode	Optical
	Air pressure	>5.0kg /cm²
	Electrical control	Independent research and development by ETON
	Motion control card module 1set	Independent research and development by ETON
	X,Y,X axis drive way	Servo motor+linear magnetic motor
	Feeding way	Electric feeder with double motor

380AC 200000CPH Smd Pick And Place Machine CCC For Led Light 0

Application field

LED tubes, panel lights, flexible light strips, street lights, etc.

380AC 200000CPH Smd Pick And Place Machine CCC For Led Light 1

Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)

After sales Service :

1. 24-hour after-sale online service

2. Regularly visit customers to understand customer usage and collect customer opinions

3. Provide customers with the latest production technology and equipment information regularly

4. The warranty period of the whole machine; 1 year

380AC 200000CPH Smd Pick And Place Machine CCC For Led Light 2
