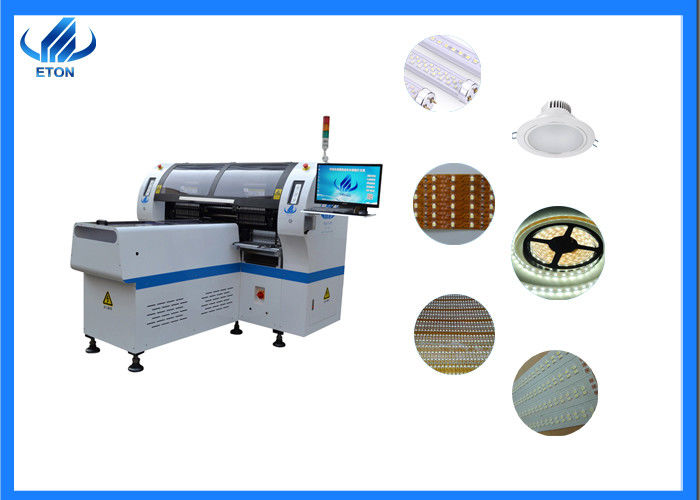

high capacity high speed smd pick and place machine for led light
HT-X9 adopts exclusive patent technology:group to take and group to mount,the capacity reach 200000CPH.There will be no throwing in production, which greatly improves work efficiency.
nozzle design: while working, the mounting speed reach 200000 CPH
Automatic Leakage Detection System,Automatic Fittings Function,English operating system, easy to understand and learn.
5sets of imported camera,vision alignment and mark correction,mounting precision reach 0.2mm
Apply to the 0.6mm,0.9mm,1.2mm,LED rigid PCB and 0.5m,1m flexible strip.
17 nozzles for each mounting module ,part A or part B can be mounted separately or synchronously.
Exclusive patent technology:group to pick and group to mount
Features
Apply to the 0.6m,0.9m,1.2m LED rigid PCB and 0.5m,1m flexible strip.
17 nozzles for each mounting module,part A or B can be mounted separately synchronously.
Exclusive patent technology:group to pick and group to mount
Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
Technical parameter
| HT-X9 |
| PCB |
PCB length width |
Max:350*1200mm min100*100mm |
| PCB thickness |
0.5~5mm |
| PCB clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group to take and group to mount |
| O.S. |
system |
Windows 7 |
| software |
R&D independently |
| display |
LED monitor |
| Input device |
Keyboard , mouse |
|
Vision
system
|
No.of camera |
5 sets of imported camera
Vision alignment,mark correction
|
| Mounting precision |
0.02mm(repeat precision) |
| Mounting height |
<15mm |
| Mounting speed |
200000CPH |
| Components |
LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers. |
| Components space |
0.2mm |
| No.of feeders station |
34PCS |
| No.of nozzles |
68PCS |
| Power |
220AC 50HZ |
| Power consumption |
6KW |
| Conveyor transmission |
Max length:1200mm |
| Transmission speed |
>500mm/sec |
| Transmission direction |
Single (left to right or right or left) |
| Transmission mode |
Auto online drive |
| Position mode |
Optical |
| Air pressure |
>5.0kg /cm² |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 1set |
Independent research and development by ETON |
| X,Y,X axis drive way |
Servo motor+linear magnetic motor |
| Feeding way |
Electric feeder with double motor |
FAQ
Q:How is the training?
A:After you buy the machine, we will have an engineer to your factory for free installation and training
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 3~5 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes,In Both Chinese and English.
