Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Components: | LED 3014/3020/3528/5050 Resistor Capacitors |
|---|---|---|---|
| PCB Size: | 1200*350mm | Nozzles: | 68 PCS |
| Warranty: | 1 Year | Speed: | 200000CPH |
| Total Weight: | 1500kg | Feeders: | 34 PCS |
| High Light: | 1200*350mm PCB SMT Mounting Machine,LED 3014 SMT Mounting Machine,200000CPH Led Light SMT Mounter |
||

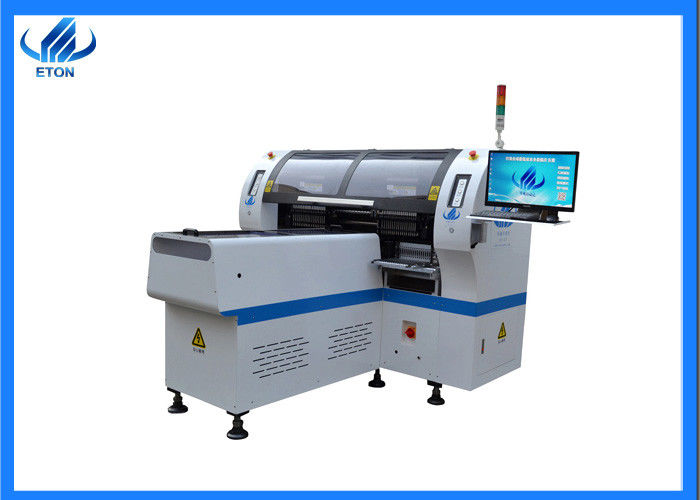

5050 0201 led high speed pick and place machine price SMT mounitng machine
HT-X9 Dual-purpose LED professional high speed pick and place machine, XYZ axis controlled by imported panasonic servo motor, wear resistance and deformation, high stability;
Transmission direction from left to right, from right to left, direction adjustment without moving the machine;
Apply to the 0.6m,0.9m,1.2m LED rigid PCB and 0.5m,1m flexible strip; PCB board adopts pneumatic fixing method of adjustable pressure, which makes mounting more accurate and stable, and reduces material throwing. 34 feeder station, 34 mounting heads, faster , higher productivity.
Maximize Time Saving and Improve Production Efficiency
The products to be mounted can cover the whole platform and realize the cycle production.
The camera is installed between the pickup position and the installation position. The acquisition and processing of the video can be carried out simultaneously during the movement of the installation head to shorten the installation time.
High Speed and High Precision
This special Mounter has a speed of 150000~170000 CPH.Can save space, labor costs, management costs
No. Of feeder station:34PCS nozzles:34PCS
It has a set of vision recognition system, which can process the absorbed components into the required mounting angle through image recognition, and realize high precision mounting, with an accuracy of 0.02mm.
Good durability
Using High Stability Electronic Dual Motor
The wear resistance of screw rod is not easy to deviate and has high accuracy.
The guide rail has strong bearing capacity and high stability.
High-quality hardware configuration for 24-hour machine operation.
Technical parameter
| HT-X9 | ||
| PCB | PCB length width | Max:350*1200mm min100*100mm |
| PCB thickness | 0.5~5mm | |
| PCB clamping | Adjustable pressure pneumatic | |
| Mounting mode | Group to take and group to mount | |
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | LED monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
5 sets of imported camera Vision alignment,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <15mm | |
| Mounting speed | 200000CPH | |
| Components | LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers. | |
| Components space | 0.2mm | |
| No.of feeders station | 34PCS | |
| No.of nozzles | 68PCS | |
| Power | 220AC 50HZ | |
| Power consumption | 6KW | |
| Conveyor transmission | Max length:1200mm | |
| Transmission speed | >500mm/sec | |
| Transmission direction | Single (left to right or right or left) | |
| Transmission mode | Auto online drive | |
| Position mode | Optical | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor+linear magnetic motor | |
| Feeding way | Electric feeder with double motor | |
After-sale Service
Pre-Consultation: provides professional SMT solutions for the full line.
Factory Warranty: One-year warranty factory service.
Installation: On-site installation and commissioning, to ensure smooth production.
Technical Training: provides professional training from Level 1 to Level 3.
Technical Support: provides 7 * 24 technical support.
Software Upgrade: offers lifetime free software upgrades for all products Provide latest information about technology and equipment.
Application
Productuin layout
FAQ
Q:How is the training?
A:After you buy the machine, we will have an engineer to your factory for free installation and training
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 3~5 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes,In Both Chinese and English.
