| Name: | Pick And Place Machine | PCB Thickness: | 0.5~5 Mm |
|---|---|---|---|
| Total Weight: | 1250kg | Feeders: | 64 PCS |
| Dimension: | 1195*1930*1750mm | PCB Size: | 400*300mm |
| Warranty: | 1 Year | Nozzles: | 20 PCS |
| High Light: | 400*300mm PCB SMD Pick And Place Machine,8KW PCB SMD Pick And Place Machine,70000CPH Led Power Driver Machine |
||
high precision 0402 SMD pick and place led mounting machine for led power driver
Details

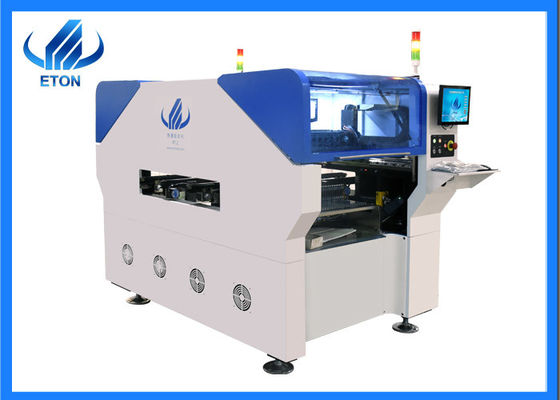

Double module magnetic linear motor multifunctional pick and place machine.with magnetic linear motor and servo motor to driver XYZ Axis.This led light making machine RT-2 with 20PCS heads and 64PCS feeders.Mounting Mode is group to pick and separate to place,separate to pick and separate to place.
Features
High precision
Can mounting 0402 components,mounting precision reach 0.04mm,Magnetic linear motor and servo motor driver by XYZ Axis.
High capacity
The capacity reach 60000~70000CPH,with 20PCS heads and 64PCS feeder stations.Double module,save time and space.
R&D Software
Independent software development, Free upgrades for life.
Maintenance&Installation
Free Maintenance&Installation,we have India and Turkey local engineers.24 hours online service.
| RT-2 | ||
| PCB | PCB length width | Max:400*300mm min:50*50mm |
| PCB thickness | 0.1~6mm | |
| PCB clamping | Electric clamping | |
| Mounting mode |
ØGroup to pick and separate to place ØSeparate to pick and separate to place |
|
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
| Input device | Keyboard , mouse | |
|
Vision system |
No.of camera |
4 sets of imported camera Vision alignment ,mark correction |
| Mounting precision | 0.04mm(repeat precision) | |
| Mounting height | <22mm | |
| Mounting speed | 60000~70000CPH | |
| Components space | 0.2mm | |
| Power | 380AC 50HZ | |
| Power consumption | 8KW | |
| Gas consumption | 0.4~0.6mpa 300N/min | |
| Transmission speed | >1500mm/sec | |
| Transmission direction | Single left to right or right to left | |
| Transmission mode | Auto online drive | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding system | No.of feeders station | 64 PCS |
| No.of nozzles | 20 PCS | |
| Feeding way | Electric feeder with double motor | |
What it can do ?
Now the LED display LED lights and other products, ETON placement machine can be mounted. LED mounting range is relatively wide, all kinds of LED components, resistors, capacitors, special-shaped components can be mounted. At the same time, we can recommend different models with different speeds according to customers' production requirements.
What product RT-2 can produce?
RT-2 pick and place machine suitable led products,such as led light,led bulbs,led tubes,rope light,led flexible strip light,panel light,led display screen,power driver,etc.
How to build led bulb/ led light production line?
| SMT production process | ||
| process | Step. | details |
| Step 1 | Solder paste Printing | Operate the stencil printer to print the solder paste onto the PCB |
| Step 2 | Mounting Part | The PCB board that has been brushed with solder paste will be sent to the pick and place machine for automatic mounting, and the pick and place machine will automatically pick components and place on PCB |
| Step 3 | Reflow Soldering | The PCB board be mounted with components is sent to reflow oven,reflow oven will heat and welding the components with solder paste on PCB. |
| Step 4 | Testing | Check whether the PCBA is misaligned or shift. |
Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
Services
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!
