35000cph SIRA 400*350mm PCB SMT Production Line For Bulb

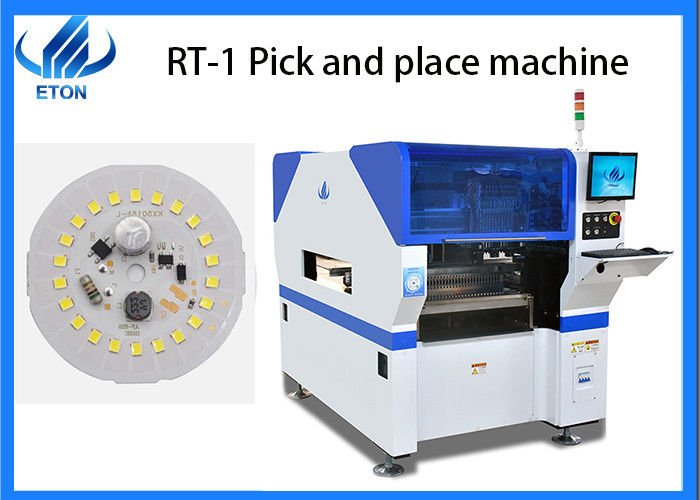

Large Image : 35000cph SIRA 400*350mm PCB SMT Production Line For Bulb

Product Details:

Place of Origin:	China
Brand Name:	ETON
Certification:	CCC/CE/SIRA
Model Number:	RT-1
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden pakage
Supply Ability:	50 sets

Contact Now

Detailed Product Description

Machine Function:	Pick & Place	Capacity:	35000cph
Warranty:	1 Year	Delivery:	25 Working Days After Order
Max PCB:	400*350 MM	Mounting Components:	No More Than 22 Mm
Highlight:	400*350mm PCB SMT Production Line , SIRA PCB SMT Production Line , 35000cph Automated Pick And Place Machine

SMT production line

SMT production line features

Include automatic pick and place machine, solder paste stencil printer, 8 ovens machine, 0.5m conveyor, Excellent combination
From print solder paste to mounting components, the whole smt line is equipment, you just need to decide the product, we give you best suggestion for the production line
Flexible. We can provide automatic line or semiautomatic line. It is flexible and decide by you.
Much save cost. Buy from one manufacturer save time, save money, much easy for after sales service.

SMT production line parameter

Stencil printer machine ET-S600:

ET-S600 suitable for max PCB size:250*550 mm, the PCB thickness is 0-50 mm.
ET-S600 printing speed is 0-800 mm/min
The repeatability precision is reach 0.01 mm.
The positioning mode is outside or reference hole.
Manual feeding board, machine printing, low price, high precision, high cost performance

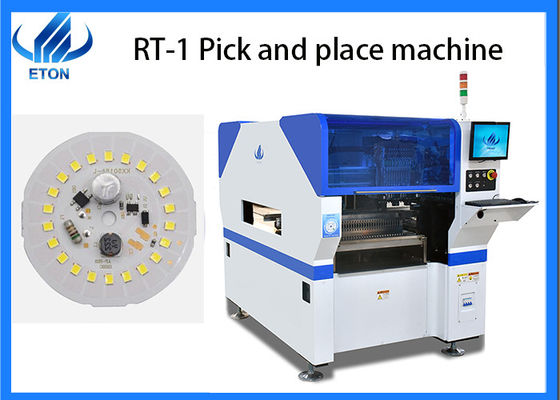

Pick and place machine RT-1:

Dimension:1200*1930*1500 mm
Max PCB size:400*350 mm
Mounting mode: Group picking and separate placing, separate picking and separate placing
Mounting height: 22mm
Mounting speed: 30000-35000 cph

Reflow oven machine ET-R8:

Due to the unique way to transport wind, surrounded by the return air patented design that eliminates the effects of the rail on PCB board to undesirable temperature, on PCB board of heating, it is more evenly and quickly than similar models
Unique furnaces are the wind structure within different areas of the furnace can be different wind speed difference arising due to structure adjustment, heat uniform.
Adopting imported high temperature motors, speed by Inverter control, long-term use, quality and stability

Conveyor machine:ET-C500

ET-C500 is suitable for PCB conveyor, it is apply to connect other SMT machine, install between SMT machine, very basic and useful.

SMT production line application

This SMT production line suitable for max PCB size is 400*330mm. It is widely using for driver board, led bulb, panel, down-light, display, etc.

If you need led tube/led panel/led strip light making machine, we also have other module recommend, please contact details by Whatsapp or Wechat: +8613590151025
