Product Details:
Payment & Shipping Terms:
|
| Name: | Dual Arm Four Module | PCB Max Size: | 1200*330mm |
|---|---|---|---|
| PCB Min Size: | 100*100mm | Mounting Mode: | Group To Take And Group To Mount |
| PCB Clamping: | Adjustable Pressure Pneumatic | Mounting Speed: | 200000-250000CPH |
| High Light: | 250000CPH SMT LED Mounting Machine,20W SMT LED Mounting Machine,CCC Flexible Strip Machine Mounter |
||

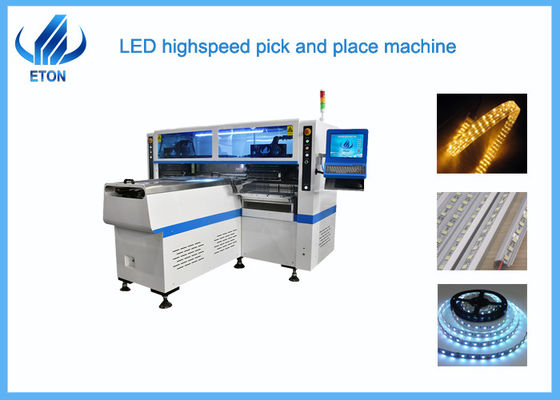

Automatic PCB pick and place machine hot sales with LED making machine production line
Product feature
Introduce products
This machine HT-F9 is a super high speed machine and magnetic linear LED making machine, through group to take and group to mount achieve the production capacity of 200,000 points.
Product parameter
| PCB Length width |
Max:1200*330mm Min:100*100mm |
| PCB thickness | 0.5~5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group to take group to mount |
| camera |
5 PCS Vision alignment,mark correction |
| Mounting precision | ±0.02 mm(repeat precision) |
| Mounting element height | ≤5mm |
| Mounting speed | 200000~250000 CPH |
Feeding system
| X Y Axis Drive way | High-end magnetic linear motor+servo motor |
| Feeding way | Electric feeder with double motor |
| heads | 68 PCS |
| Feeder station | 68 PCS |
Components&Application
About detail of F9 part
The machine HT-F9 is dual arm machine,the heads are 68 PCS,feeder station is 68 PCS.
Certification of ETON
Company information
Our company is a leading SMT machine manufacturer of highspeed pick and place machine,we start from 2011,around 8 years,and have Industrial Park.
Exhibition information
We also have many exhibitions, such as the domestic Shanghai Munich exhibition, and foreign India Delhi exhibition, India Mumbai exhibition, Pakistan exhibition, Turkey exhibition, Thailand exhibition and so on.
Packaging
Step 1:Film packaging
Step 2:Vacuum packing
Step 3:Wooden box packing
Payment and Delivery date
1. Term of Payment:30% depositing on the date of signing contract,70% payment before delivery.
2. Delivery date:Within 30 days after receiving the deposit
About our services
☺Professional solutions:provide professional SMT full line solution
☺Warranty:1 year warranty factory service
☺Free Installation:one-site free installation to ensure smooth production
☺Free technical training:professional training of operating and maintenance
☺Technical support:24 house online support
☺Software Upgrade:offer free software upgrade whole lifetime.
FAQ:
Q:Are you a manufacturer or trading company?
A:We are an enterprise integrating R&D, production, sales and after-sales service
Q:When can I expect delivery?
A:Within 30 days after deposit
Q:What is terms of payment?
A:It is T/T
Q:Which language is the software?
A:English or Chinese.
Q:What about the shipping methods?
A:Our mode of transportation is by sea,air and road
